LS845 Liquid Level Sensor

LS845 Liquid Level Sensor

Capacitive liquid level sensor with an AN-8 thread mount, custom-built up to 700mm long.

LS845 is a solid-state capacitive liquid level sensor, capable of continuous level measurement in all common liquid types. The sensor is manufactured to your length requirement up to 700mm long, with a range of output formats, operating temperature ranges and accuracy specifications to suit most applications.


LS845 Liquid Level Sensor

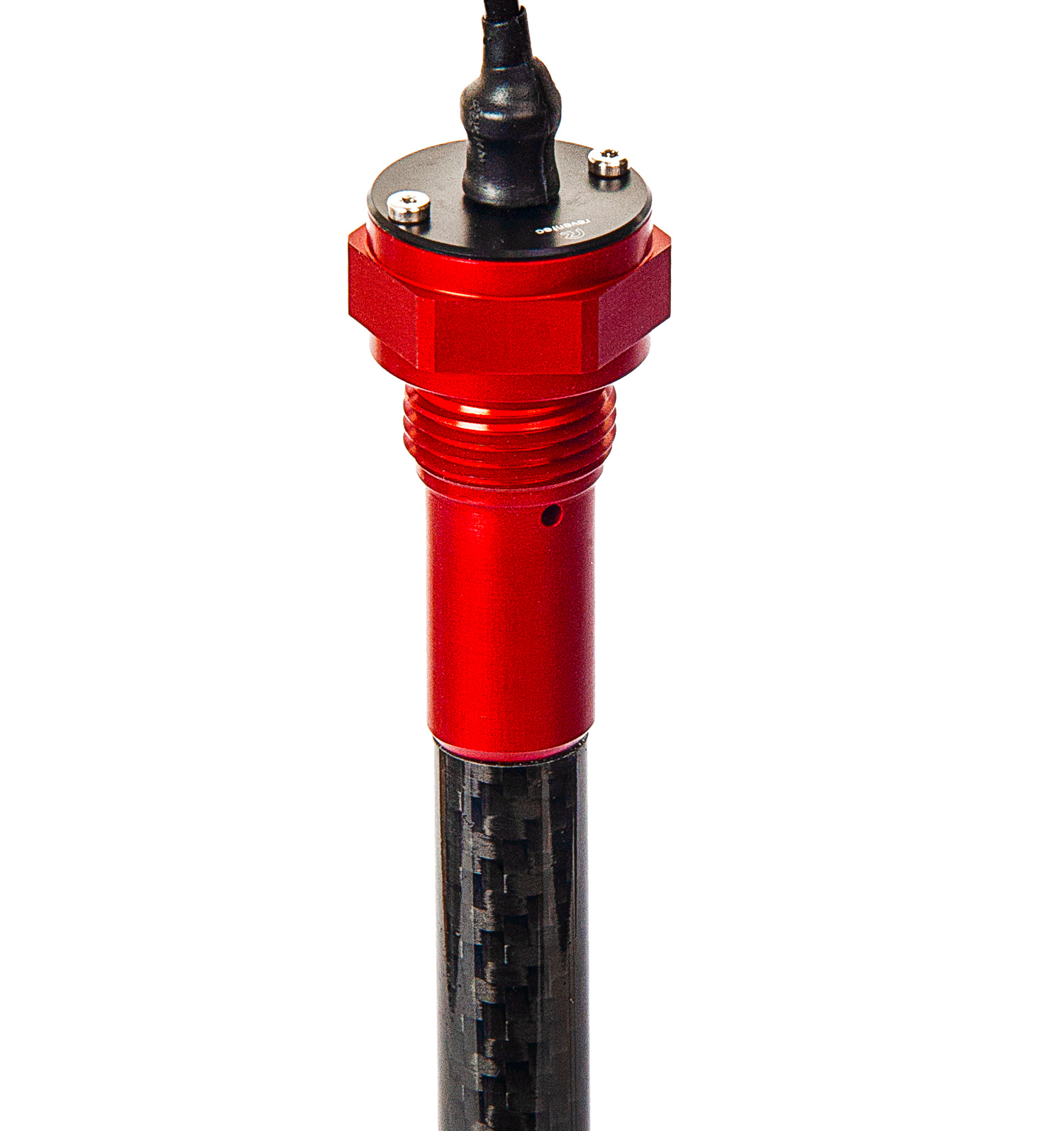

The Reventec LS845 is a AN-8-threaded liquid level sensor. It utilises Reventec’s proven capacitive level measurement technology and provides continuous measurement of the contents of tank contents to very high accuracy.

Mounting & Mechanical Features

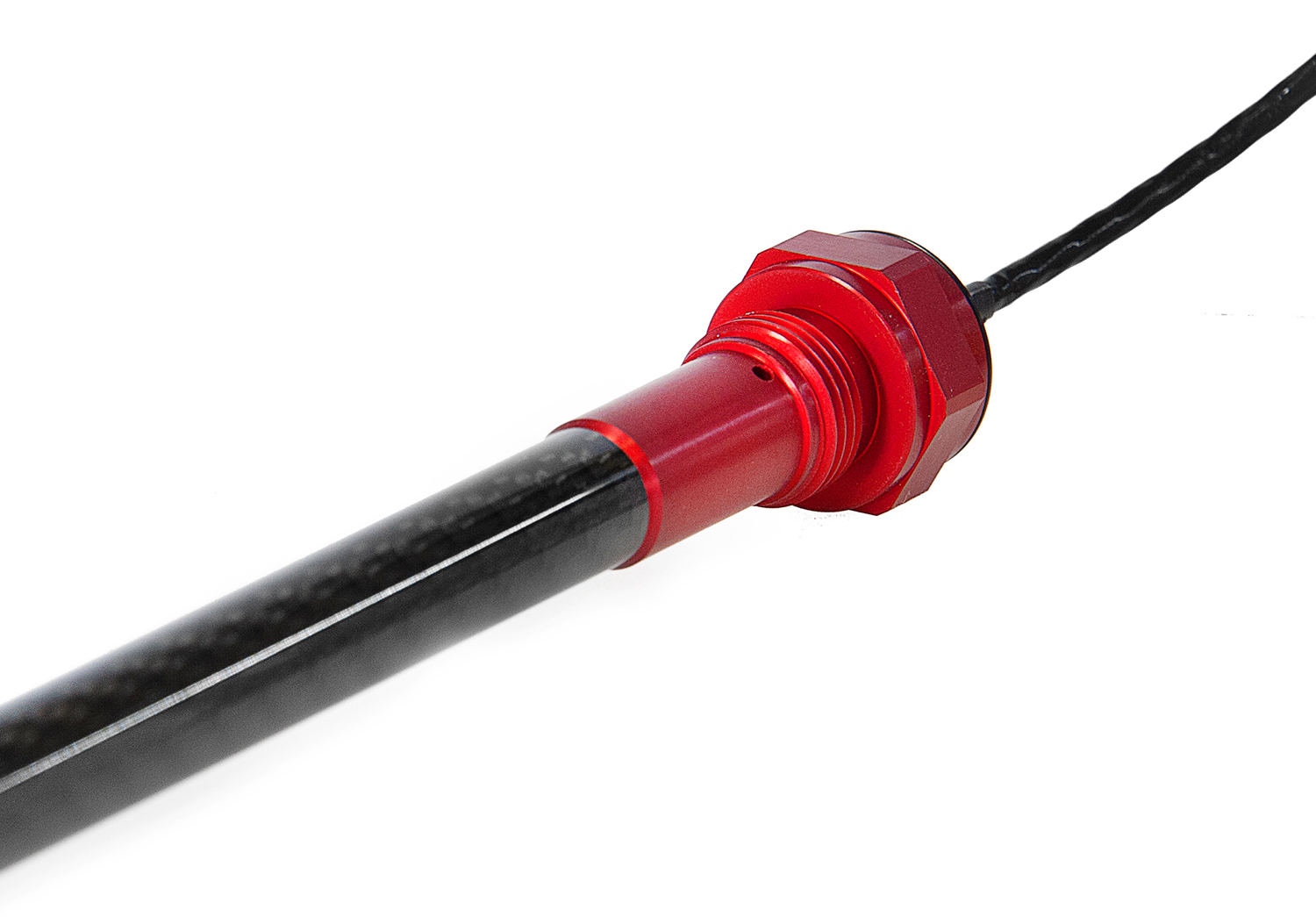

Because it features an AN-8 threaded mounting arrangement, the sensor head footprint is extremely small.

Reventec manufactures every LS845 liquid level sensor to the length required by the customer. This eliminates the need for users to modify the sensor mechanically and it simplifies installation.

We can supply sizes from 450mm to 700mm. The probe features a carbon-fibre outer layer, because this adds strength. It ensures reliability in high vibration and extreme operating conditions.

LS845 liquid level sensors can be mounted in any orientation, including vertical inverted mounting and the sensor seals to the tank via a supplied radial O-ring seal.

Accuracy, Outputs & Electrical Connectivity

The LS845 is available in two accuracy specifications:

  • +/-1% accuracy
  • +/-0.5% accuracy.

It is also available with a range of industry-standard outputs, including an optional ‘low level’ alarm that activates when liquid drops below a calibrated level.

Output options include:

  1. Analogue 0-5V (typically calibrated 0.25V empty, 4.75V full)
  2. CAN and Analogue 0-5V
  3. CAN Only

AN-8 threaded liquid level sensors come with a 500mm flying lead and the number of cores is dependent on the output mode(s). However, customers may specify a longer flying lead or for a connector to be supplied and fitted at additional cost. So if you require an integrated connector, please ask us about our custom sensors.

All sensors have an operating temperature range of -40°C to +125°C. In addition, an extended temperature range option is available for use in operating temperatures of up to 150°C.

Liquid Compatibility and Sensor Calibration

LS845 is compatible with all common liquid types, including fuel, oil and diesel. Sensors are available for compatibility with polar liquids and this includes water and coolant, as well as bio-fuels such as Ethanol, Methanol and blends.

All sensors are factory-calibrated in the customer-specified liquid type, so the sensor is ready for immediate use. However, sensors can be user-calibrated in the field, for instance, if the liquid type is changed. Reventec provides free calibration software, which is available on request and in addition, lets customers compensate for non-linear tank shapes or where a non-linear output curve is desirable.

Benefits at a glance

  • Solid-state with no moving parts, so it’s ideal for use in extreme operating environments
  • Manufactured to length: Perfect fit straight from the box because no mechanical adjustment required
  • Wide range of output modes: Compatible with most industrial and automotive instrumentation and control electronics
  • Compatible with a wide variety of liquids
  • High temperature variant available for monitoring high-temperature oil up to 150°C
  • Mount at any angle, including inverted
Mechanical Details Range Brochure

Capacitive Technology

The LS845 leverages the latest advancements in capacitive liquid level sensing. Discover our technology video to explore how this technology works and how it is used across our fuel, oil, coolant and water level sensor range.
