Submersible Hall Effect Gear Tooth Speed Sensor

  • Solid-state continuous speed sensing
  • 0-5V analog output
  • 5 bar pressure rated for submersible depths of 50 metres
  • Measurement accuracy unaffected by physical orientation of the sensor
  • -40°C to +125°C operating temperature range
  • Advanced accuracies of ±0.5% of reading


Submersible Speed Sensor (IF-010-010)

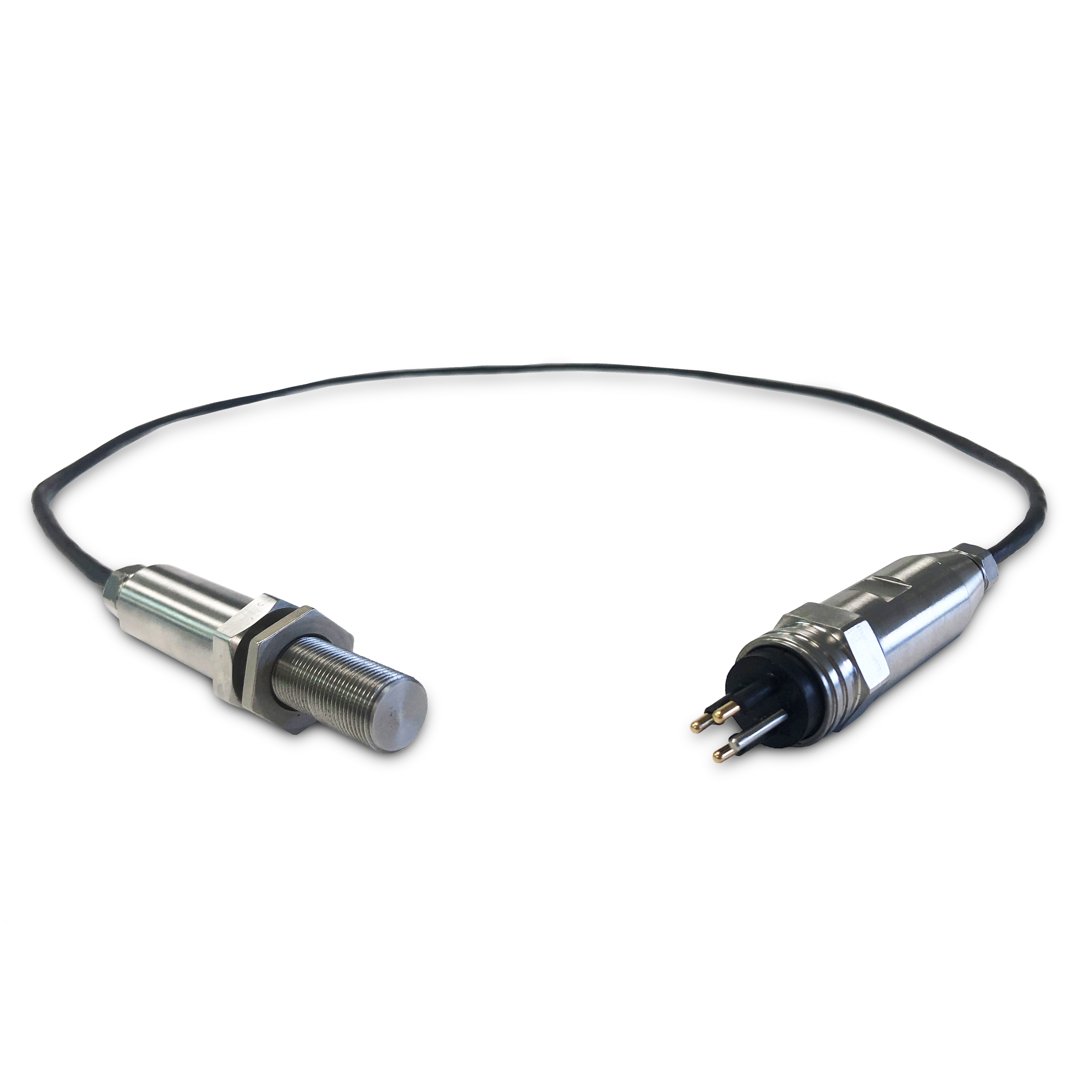

Engineered to deliver highly reliable speed sensing in extreme subsea environments, the Submersible Speed Sensor is a robust, non-contact, hall effect device. The submersible speed sensor measures the rotational speed of gear teeth using a nominal 2mm air gap.

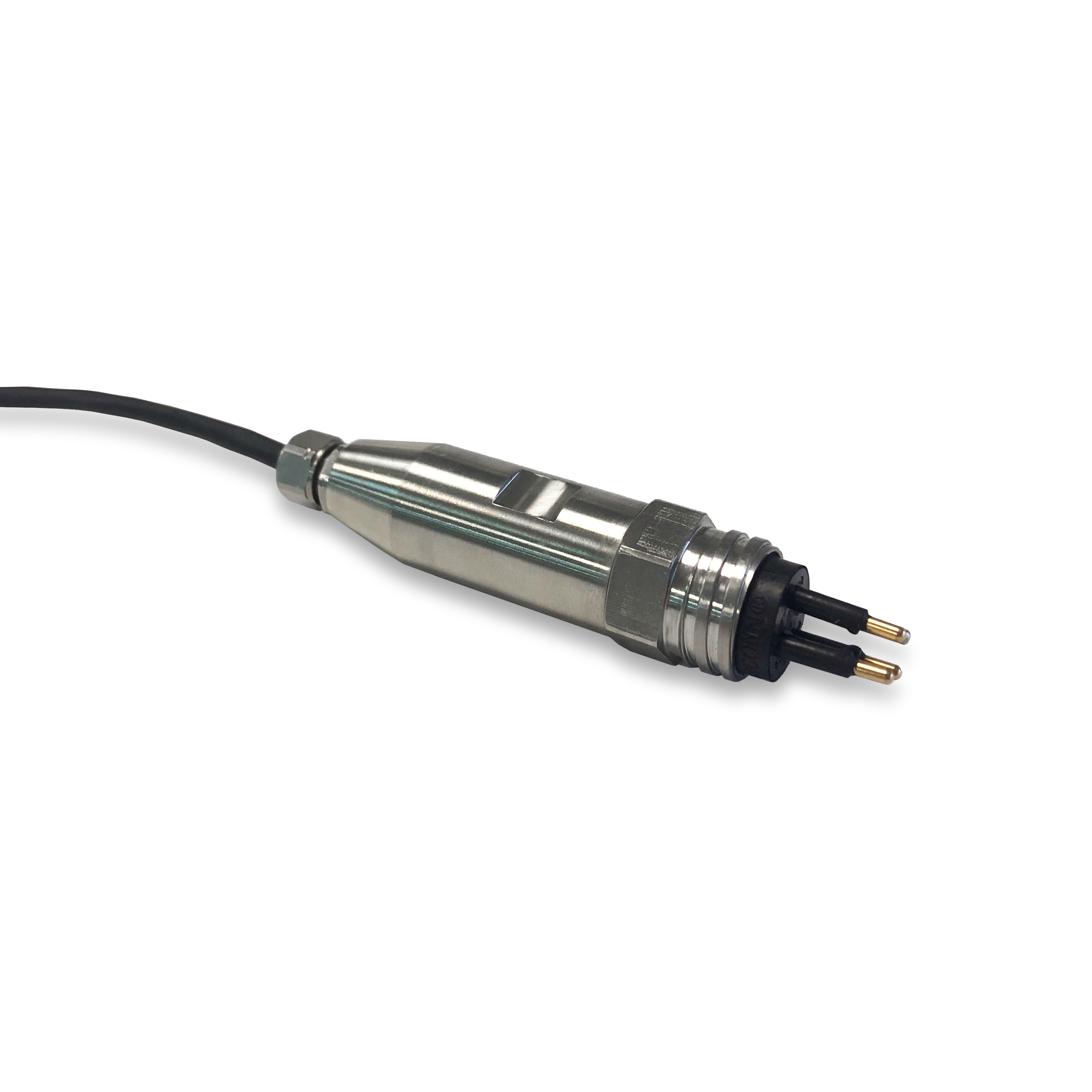

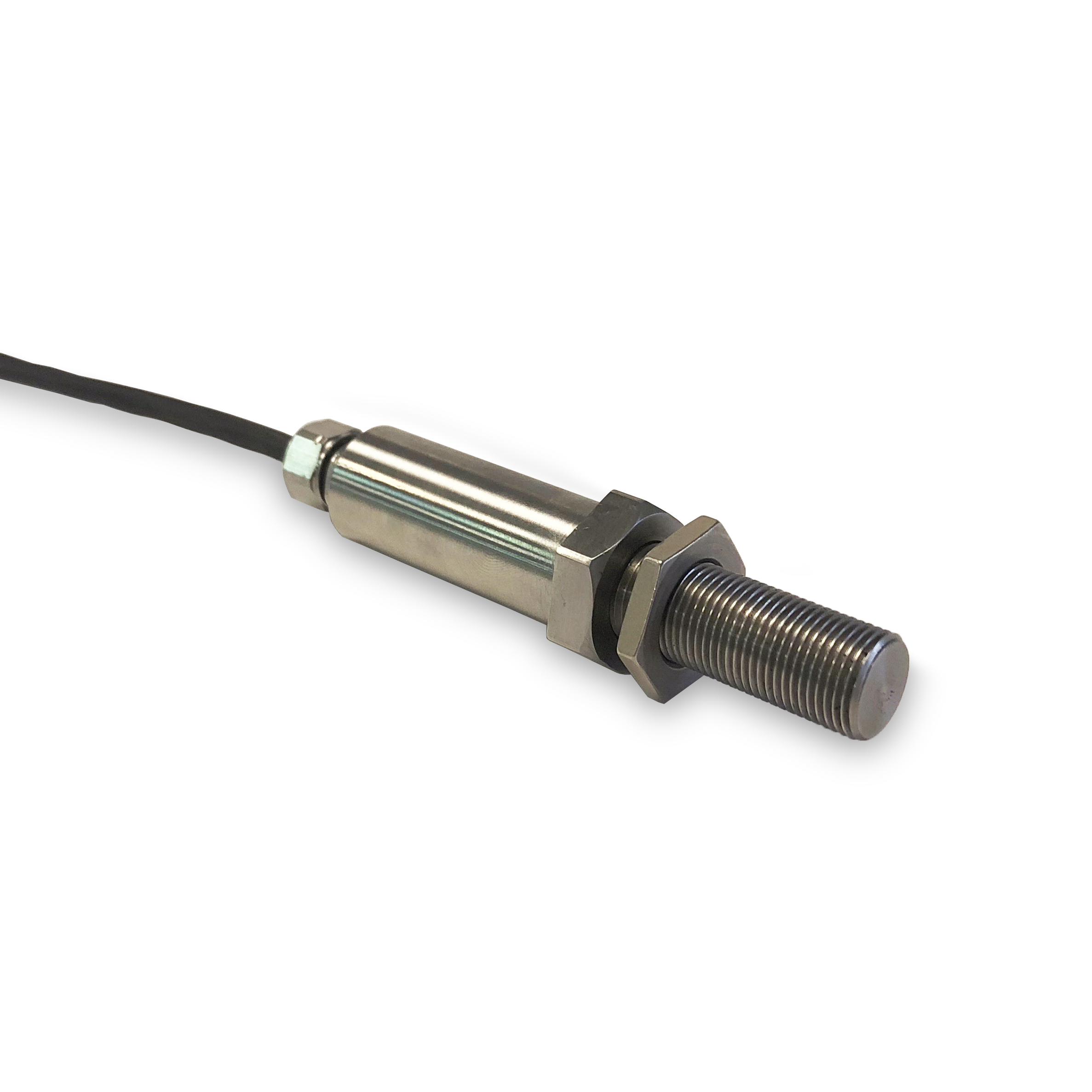

Constructed from stainless steel, the entire sensor is designed to withstand pressures of 5bar allowing it to operate reliably at a submersible depth of 50 metres. An integrated 3K pull-up resistor is embedded within a custom backshell on a Subsea connector, recommended for operating from a 24V supply. The speed sensor offers easy installation with a M12 x 1 thread with adjustable locknut.

Boasting advanced accuracies of ±0.5% of reading across the entire operating temperature range of -40°C to +125°C, the instrument is insensitive to orientation and operates with a max detection speed of 15kHz. For ultimate dependability, the IF-010-01 is solid-state with high vibration and shock tolerance.

Gear detection sensors are commonly used for detecting flywheels, gears, rack gears, sprockets, and other ‘toothed’ steel targets.

Specialist Vehicle Sensor Solutions

The IF-010-01 is a speed sensor within our range of vehicle sensors for extreme environments and can be adapted to fit a variety of connector types depending on requirement and vehicle platform. This sensor is ideal for shallow subsea applications. Reventec specialises in highly customised sensor solutions with more than a decade of expertise designing and building sensors to fit specific spatial constraints. Please contact us to discuss your requirements with a member of our team.
