Active Aero Sensor Technologies
Reventec’s non-contact tunnelling magnetoresistive position sensors are ideal for advanced measurement of active aerodynamics.
What is Active Aerodynamics?
Active Aerodynamics (commonly known as ‘Active Aero’) are mechanisms that dynamically adjust the aerodynamic properties for a motorsport race car.
In motorsport, the benefits of active aerodynamics are faster lap times, tighter battles on the track, and constantly pushing the performance boundaries of a vehicle. Reventec’s smart active aero position sensors are ideal for measuring the mechanical movement of wings with precision accuracy. As a non-contact active aero sensor technology, there is zero wear ensuring durability and product longevity.
Active Aerodynamics in Motorsport
With recent proposed regulation changes for the F1 2026 season now featuring active aero moveable front and rear wings, race teams and manufacturers are set to maximise this new rule with development, testing and superior measurement instruments to optimise their cars.
Active aero benefits include:
- Maintain stability when braking, faster corner speeds, and improved overtaking.
- Maximise downforce for superior grip when cornering.
- Reduce straight line drag.
Applications

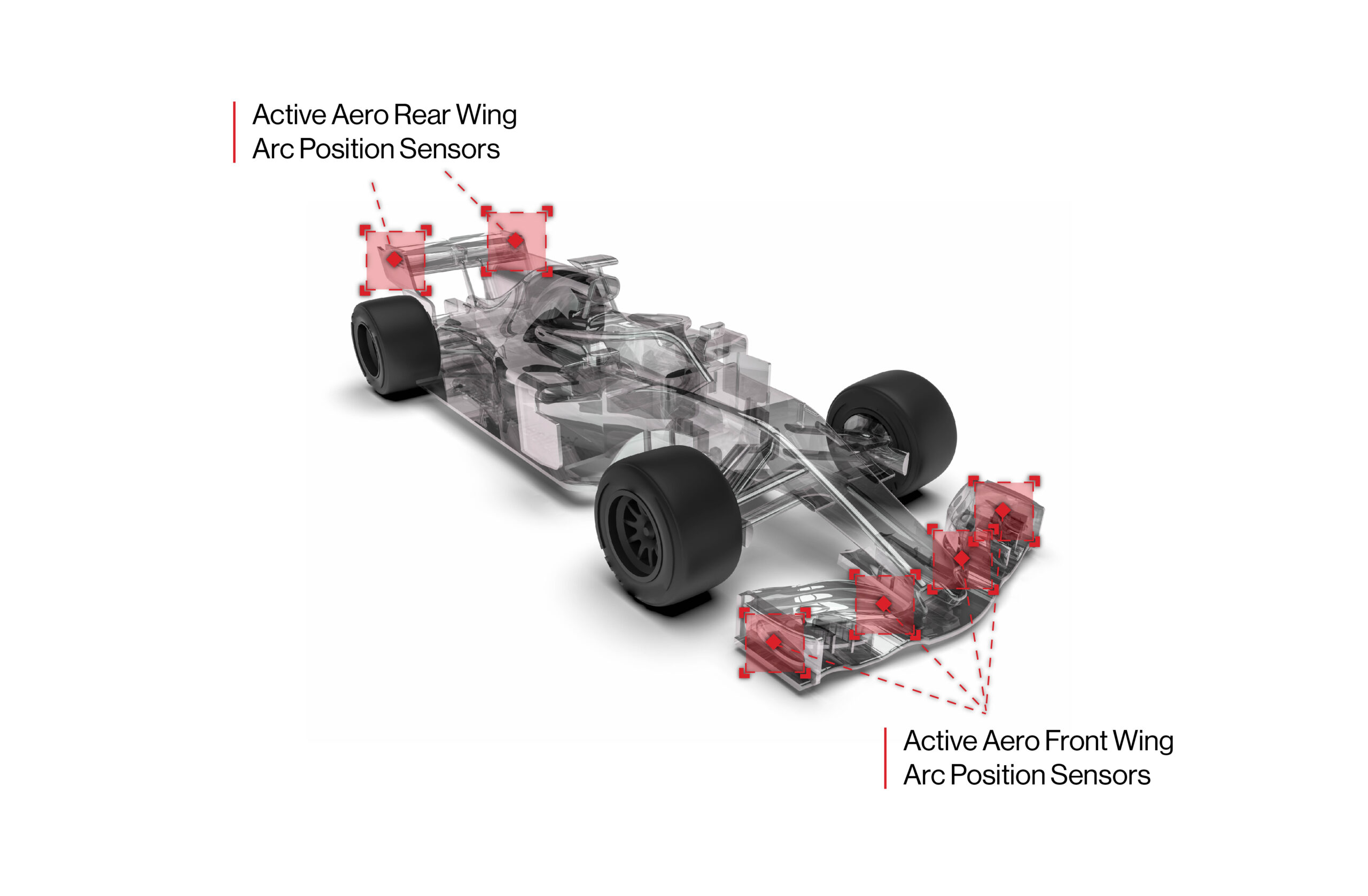

Reventec’s Tunnelling MagnetoResistive position sensors play a vital role in the development of race-winning motorsport vehicles and will continue to be critical as motorsport technology and regulations evolve with recent developments of active aero. Active aero applications of Tunnelling Magneto Resistive Position Sensors:
Active Front Wing: By measuring the wing angle, Reventec TMR position sensors ensure optimal downforce at the front for high speed stability.
Dynamic Rear Wings: TMR sensors can determine the angle of the rear wing, optimizing downforce for cornering and minimizing drag on straights.
Specifications
| Measurement Paths | Linear, Arc and Rotary |
| Outputs | Analog, CAN, Analog & CAN |
| Accuracy | ±0.5% |
| Operating Temperature | -40°C to +150°C |
| Response Rate | Up to 5kHz |
| Mounting Options | Multiple available |
Mil-Std EMC Certified
Vibration Tolerant
Ingress Protection up to IP69K
Insensitive to Orientation
Made in
the UK
CE & UKCA Compliant
MOTORSPORT POSITION SENSORS
Engineered for precision. Designed to win.

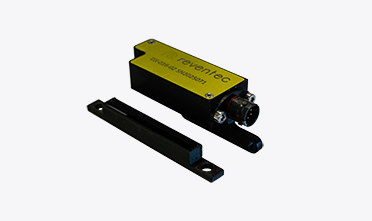

Low Pressure Actuator Linear Position Sensor
A lightweight, non-contact TMR linear position sensor designed to measure the movement of a low pressure actuator in a motorsport vehicle.
Rocker Suspension Position Sensor
Designed to measure the arc movement of a race car rocker suspension for vehicle performance monitoring and improvement of ride height.

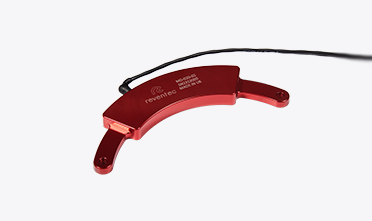

Programmable 70 degree Arc Position Sensor
A non-contact programmable arc position sensor calibrated to measure a 70 degree arc movement in a motorsport application.
