LSM500-IP69K

LSM500-IP69K

Mil-Spec Ground Vehicle 5-Bolt Coolant Level Sensor

A robust, solid-state coolant level sensor utilising the latest capacitive sensing technology for continuous, real-time readings. IP69K rated.

  • Accuracies of ±1% of reading (±0.5% accuracy variants available)
  • Stainless steel construction
  • Analog 0-5V and CAN outputs available
  • -40°C to +125°C operating temperature range (-55°C to +150°C option available)
  • Ingress Protection up to IP69K rated for extreme environments
  • Mil-Std EMC Certified

Description

LSM500-IP69K

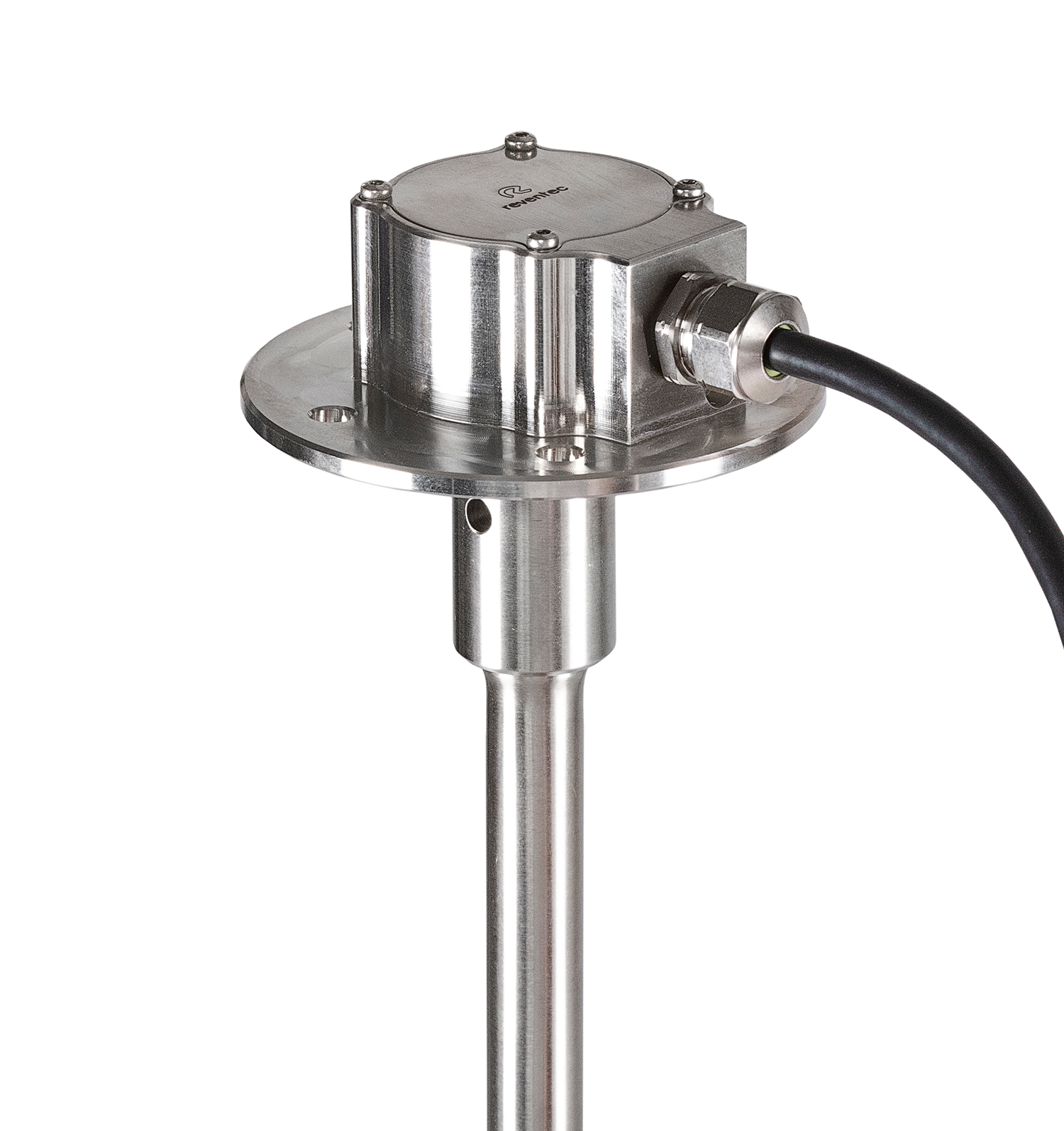

Designed for direct installation within defence ground vehicles coolant systems, the LSM500-IP69K is a highly accurate coolant level sensor engineered specifically for military applications. Featuring stainless steel construction and with an ingress protection rating of IP69K, the LSM500-IP69K is built for durability in high shock and vibration environments.

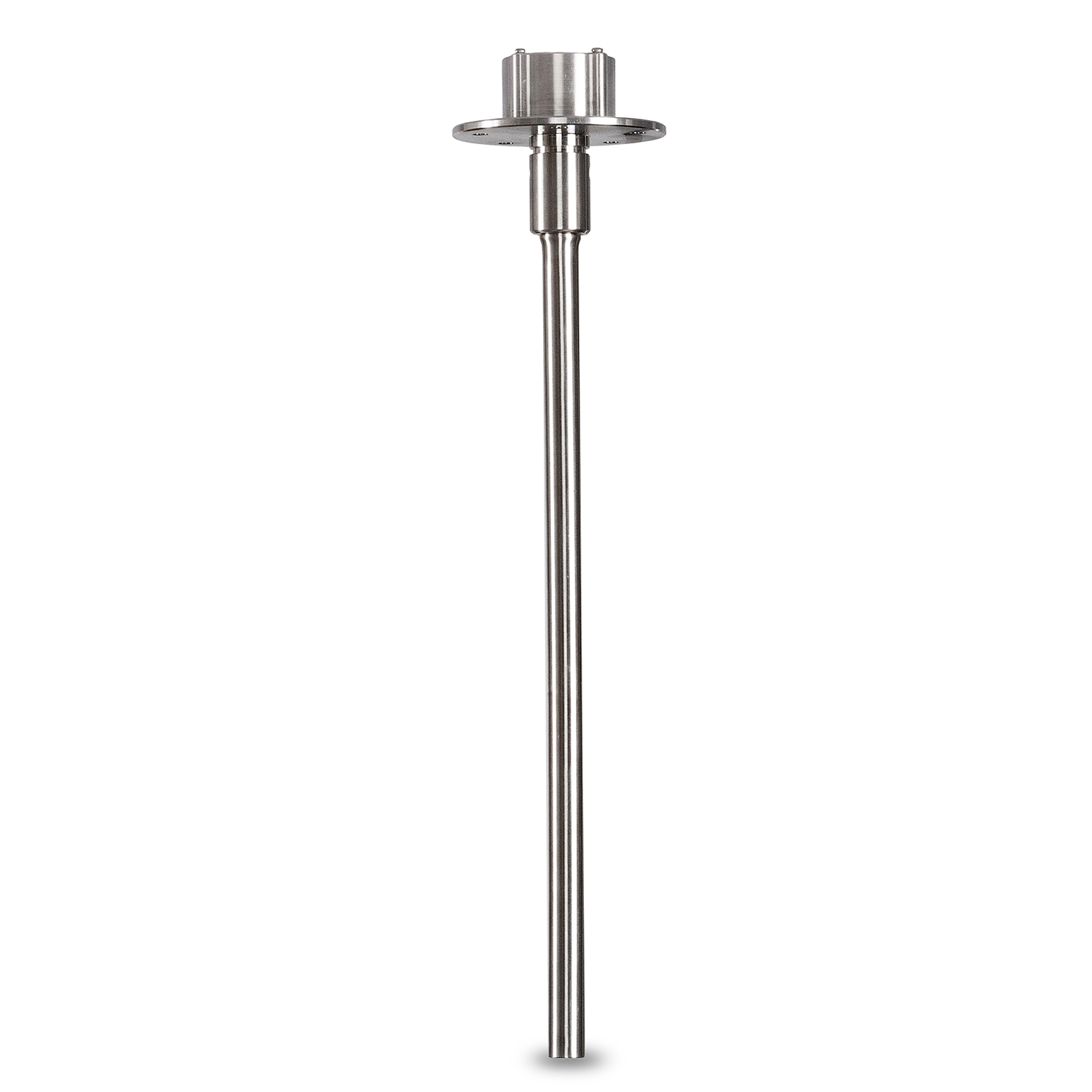

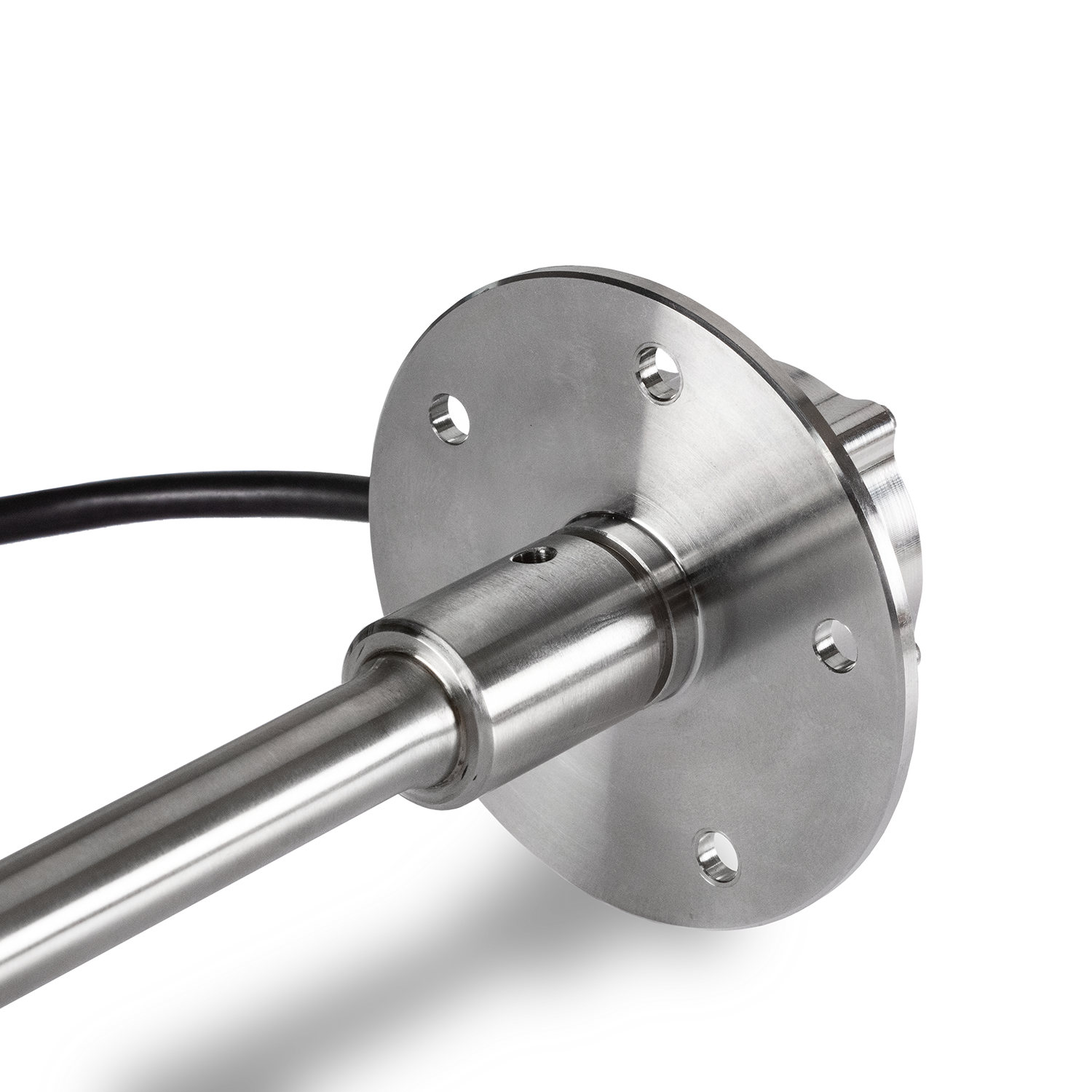

Reventec’s solid-state sensors provide powerful vehicle health monitoring and analysis of critical components to offer predictive vehicle maintenance to reduce vehicle downtime and unexpected breakdowns in combat zones. Delivering continuous, real-time readings for ultimate vehicle deployability and operational readiness, the LSM500-IP69K features an SAE 5-bolt mounting pattern for secure fitment to the exterior of coolant tanks. The liquid level sensors are manufactured to length for easy installation and are available in custom sizes up to 700mm long.

Boasting advanced accuracies of up to ±0.5%, the LSM500-IP69K offers analog 0-5V, CAN or both outputs directly from the coolant level sensor as integrated electronics within the sensor head, allowing for extremely accurate readings without the need for external CPU processing. Both the probe and electronics have a high operating temperature of -40°C to +125°C, with -55°C to +150°C temperature variants available. Certification to MIL STD 461G and RCTA DO160F available.

As a solid-state instrument, the LSM500-IP69K has no moving parts allowing for a reduction to the risk of mechanical wear. The mounting plate can be fitted at any angle, included inverted, to the exterior of the coolant reservoir whilst continuing to deliver precise readings. As the LSM500-IP69K is a part of Reventec’s capacitive liquid level sensing technology, this device is compatible with a wide variety of liquids and can be calibrated, upon request, in a variety of fuel, oil, water and coolant fluids.

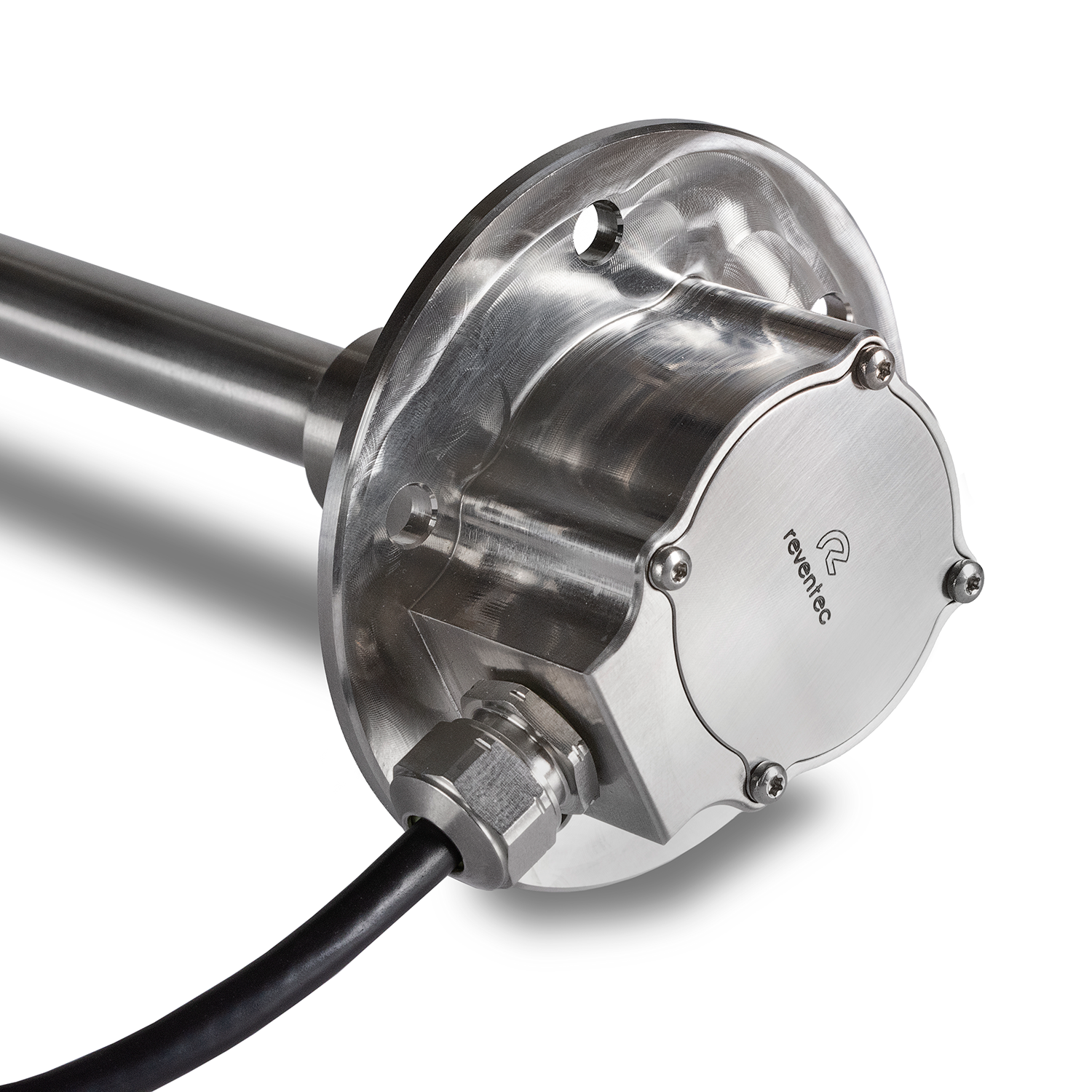

The LSM500-IP69K is provided with flying lead, as standard, for direct integration into vehicles’ electrical system. All of Reventec’s vehicle health monitoring sensors can be customised to fit a range of connector types dependent on requirement, including MIL-DTL-38999 connectors.



EMC Approvals

EMC approvals for this device includes: MIL STD 461G Army Ground Limits: CS114, CS115, CS116, RE102, RS103, RS101, CE102, CS101, RTCA DO160F: Section 25 ESD Cat. A



Output Options

Output options include:

  • Analog 0-5V (typically calibrated 0.25V empty, 4.75V full)
  • CAN and Analog 0-5V
  • CAN only



Accuracy Options

The LSM500-IP69K is available in two accuracy specifications:

  • ±1% accuracy of reading
  • ±0.5% accuracy of reading

Calibration of each sensor is made in the intended fluid for superior accuracy.



LSM Capacitive Liquid Level Sensors

The LSM500-IP69K is a capacitive liquid level sensor in our military product range, equipping ground vehicle and UAV manufacturers with real-time measurement of vital vehicle components. Reventec has vast experience over the past decade delivering highly customised sensor solutions to our customers and have the expertise to design and build sensors to fit specific spatial constraints, liquid type requirements, connector and cabling requirements. Please contact us to discuss your requirements with a member of our team.
