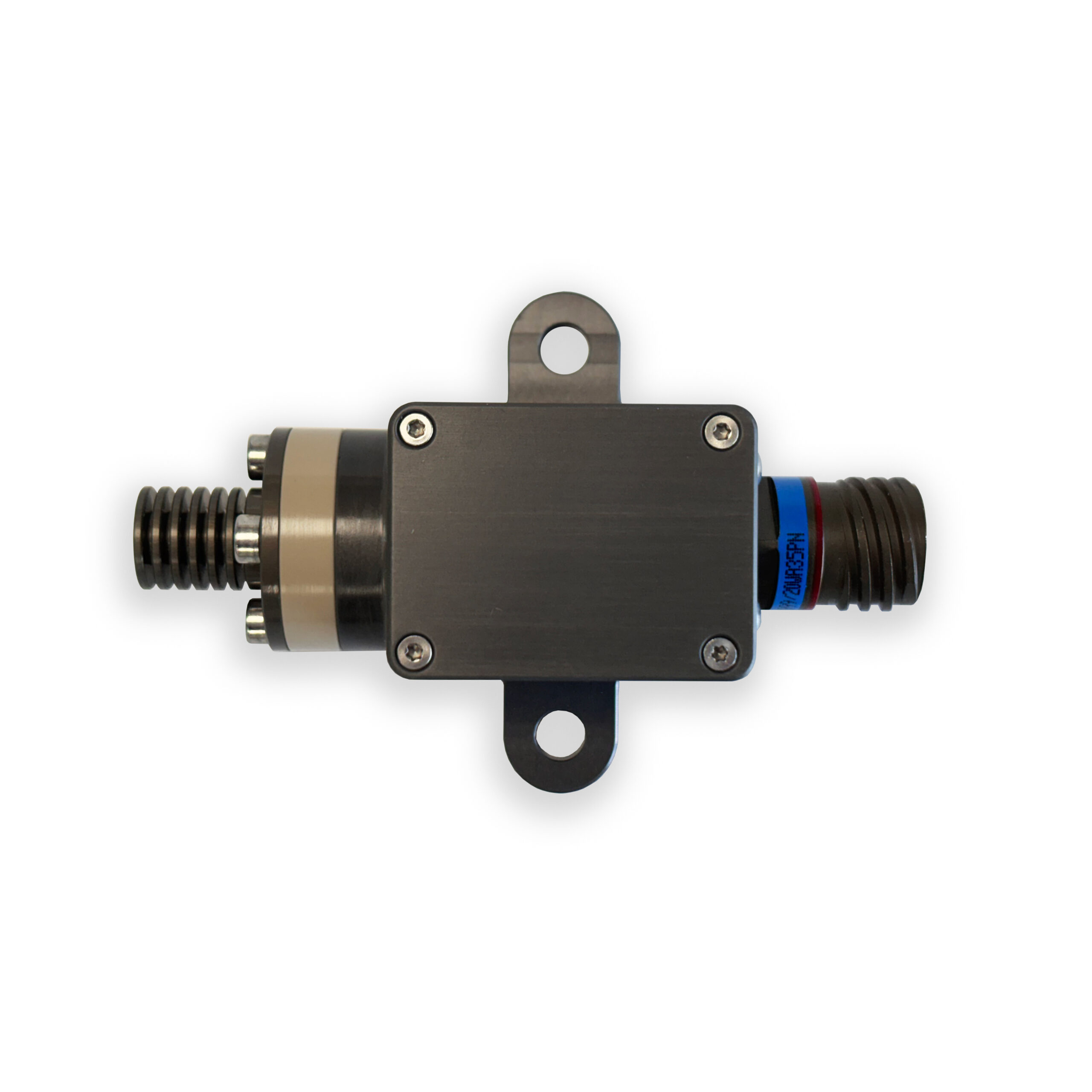

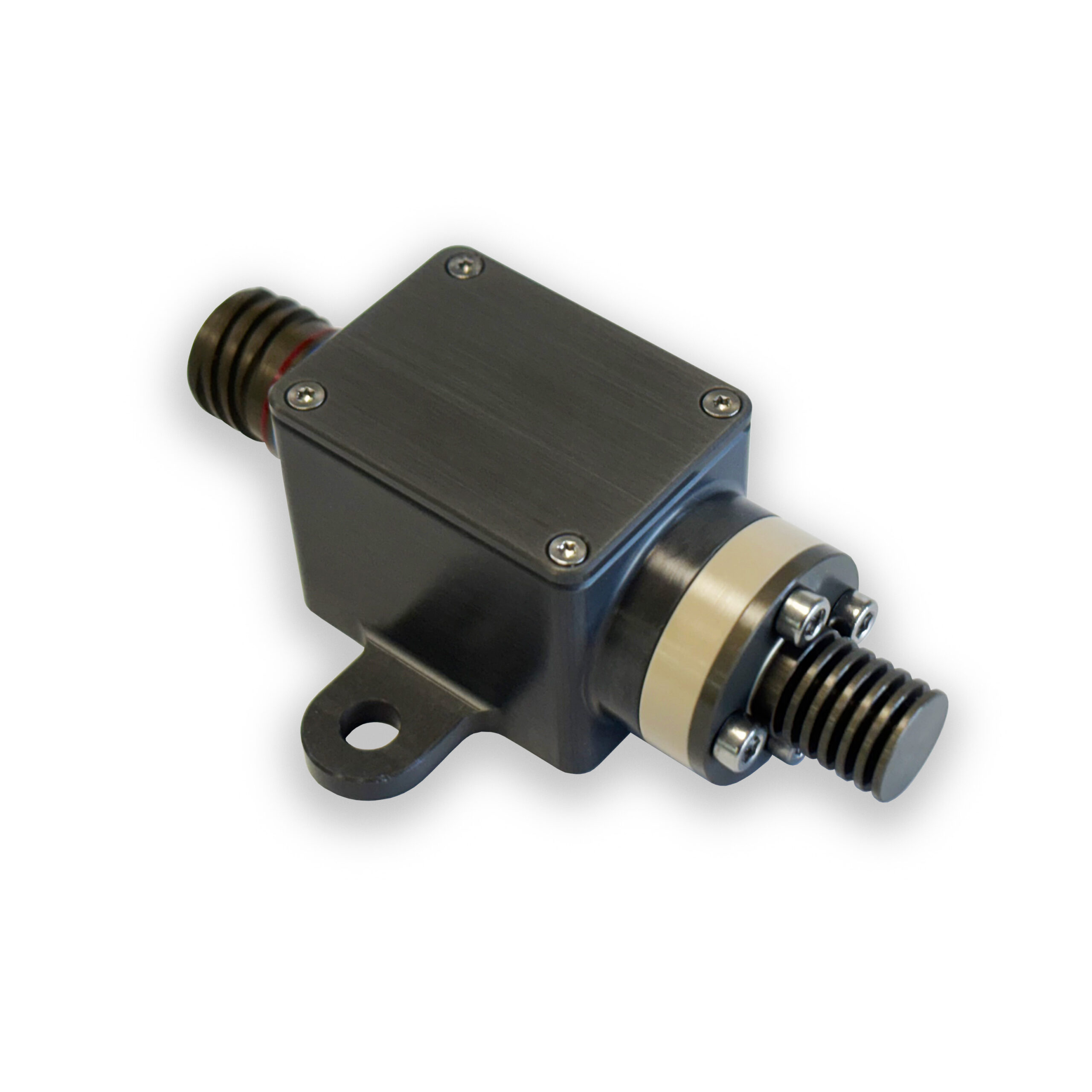

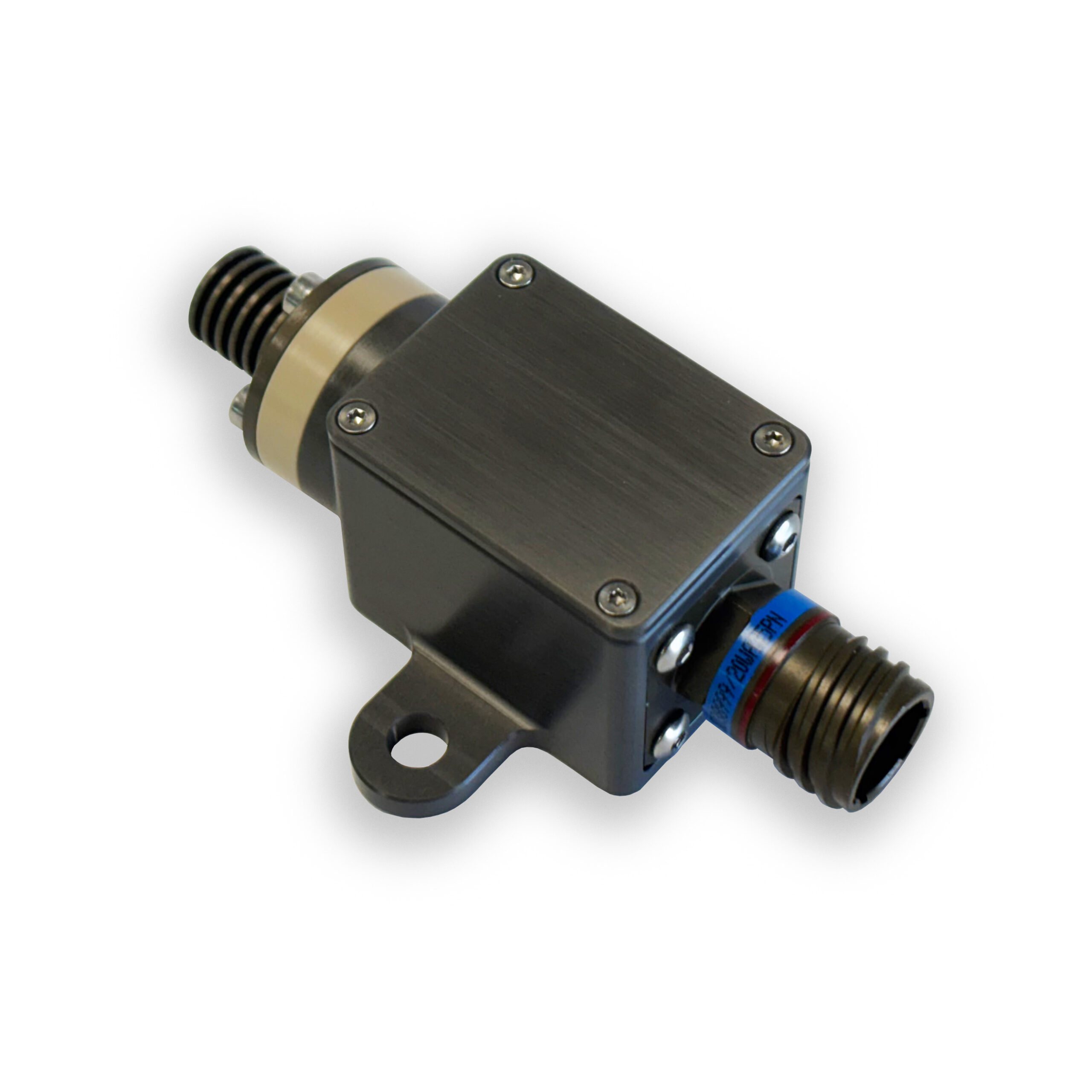

Reventec Mil-Spec Programmable Ambient Air Temperature Sensor (OY-100-01)

The OY-100-01 is a compact and highly accurate ambient air temperature sensor that delivers a programmable voltage output, eliminating the need for external CPU processing. This is especially useful for projects with limited space where additional electronics are not desirable or feasible.

Unlike standard resistive sensors, the OY-100-01 integrates all advanced electronics directly within the sensor. The fully programmable electronics offer programable CAN parameters. This design significantly reduces system complexity, weight, and space requirements.

The sensor covers a wide measurement range from -40ºC to +150ºC in its standard form, with high-temperature variants available. Specialist designs capable of withstanding up to 1000 bar of fluid pressure are also available.

By removing the need for an external CPU, the OY-100-01 maximises the use of available space and reduces system weight, providing a streamlined, high-performance solution for mission-critical applications.

EMC Approvals

EMC approvals for the Mil-Spec Programmable Ambient Air Temperature Sensor includes: MIL STD 461G and RTCA DO160F.

Options include:

• Metric/imperial temperature probe diameters
• 1000bar fluid pressure designs
• Custom electronic housings
• Connector / flying wire interfaces

OY-100-01 is solid state and therefore highly-resilient to vibration and liquid ingress, making it an ideal choice for military and UAV applications.
