Resistance Temperature Sensors – 3 Wire

Resistance Temperature Sensors – 3 Wire

A durable Resistive Temperature Detector (RTD) with a PT100 sensing element constructed from stainless steel 316L.

  • Continuous temperature sensing.
  • -40°C to 125°C operating temperature (High temperature variants available).
  • 1000 Bar rated design.
  • Class B 1/3 DIN PT100 sensing element for high accuracy and repeatability.
  • IP69K rated.

Description

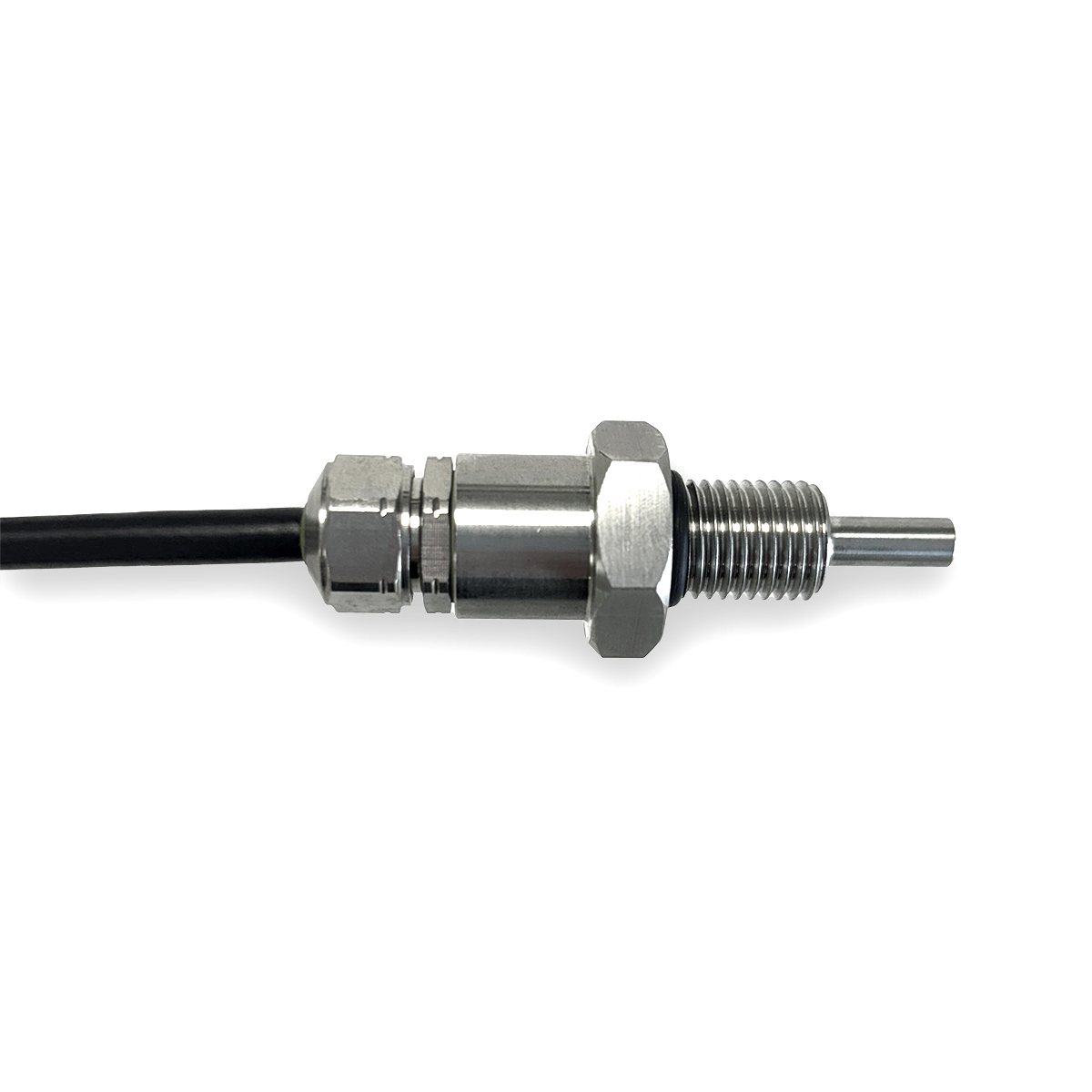

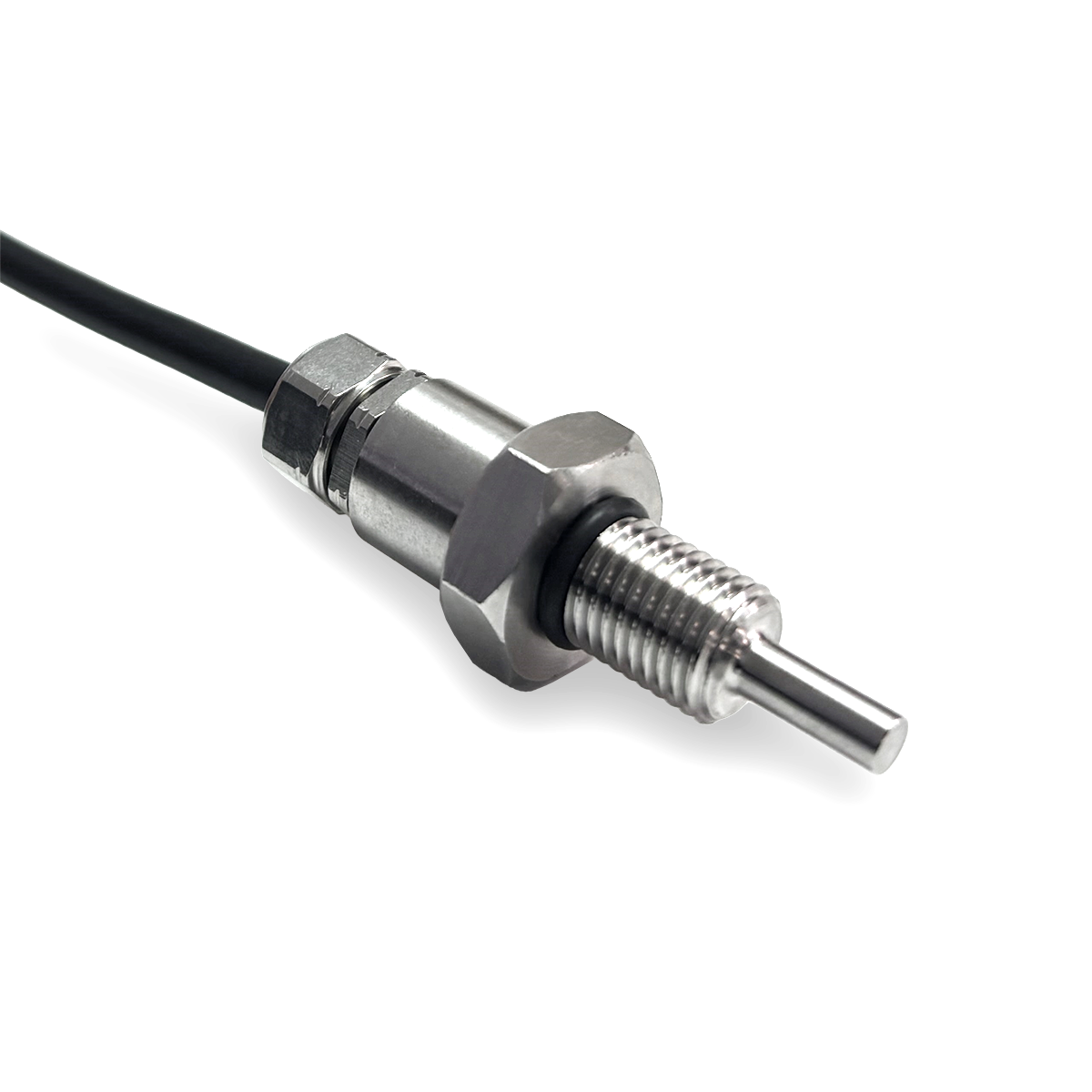

Resistance Temperature Sensor – 3 Wire (MR-020-01)

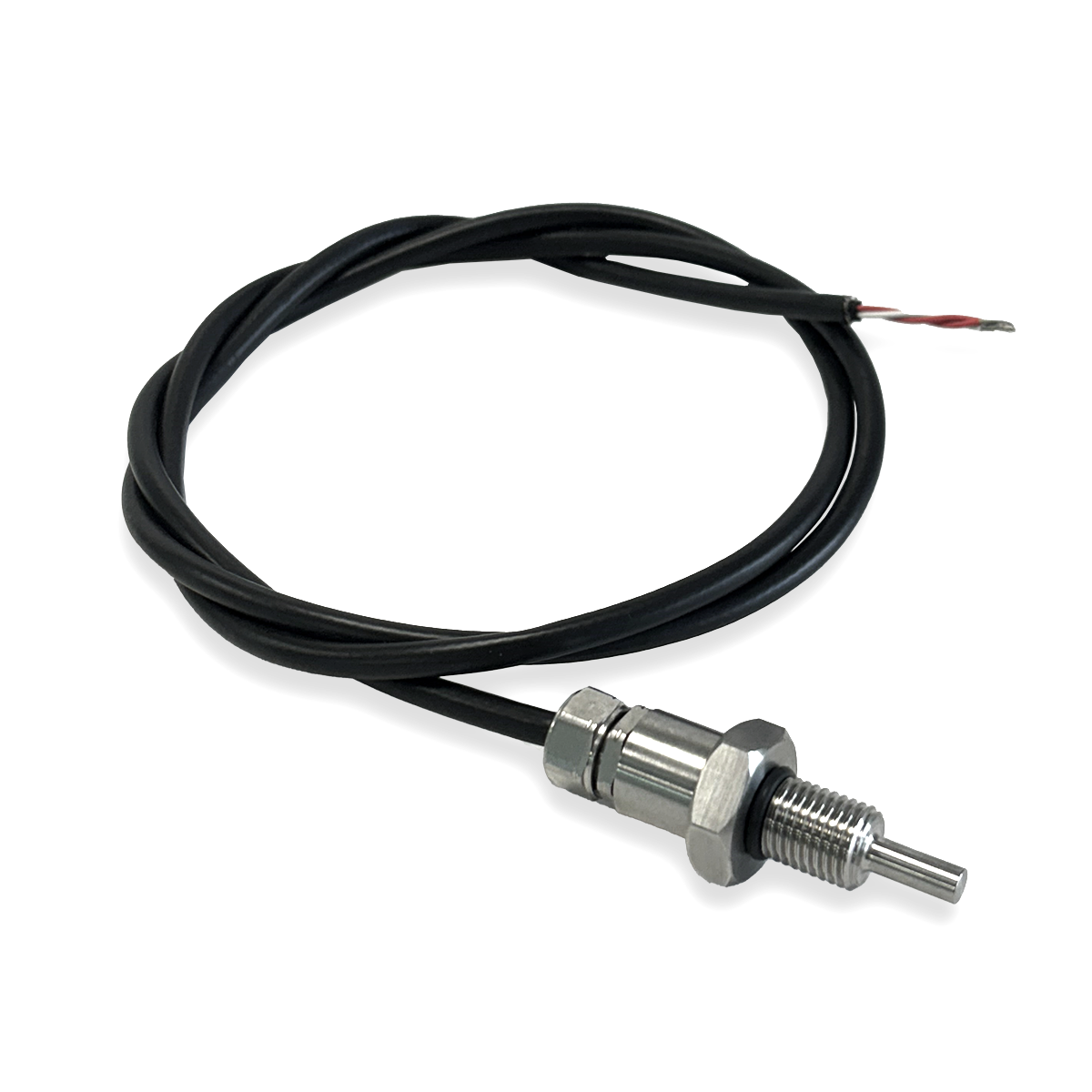

This Resistance Temperature Sensor is a durable measurement instrument designed with a Class B 1/3 DIN PT100 sensing element supplied with flying lead with 3 wires. The MR-020-01 is suitable for air, gas, or liquid detection.

Constructed from stainless steel 316L and featuring a 7/16″-20 UNF thread, the resistance temperature sensor is compact in size whilst boasting a robust design rated to 1000 Bar. With superior ±0.15K accuracy, the RTD detects temperature accurately across -40°C to +125°C operating temperature range (high temperature variants of up to +250°C are also available).

This RTD has been developed for a specific customer’s platform that required these exact spatial measurements and high repeatability. Reventec is a specialist at engineering customised sensors to fit particular applications with a choice of housing geometry, cable length and choice of connector types.



Options Include:

  • Custom threads available for a secure fitment to your specific application.
  • Metric/imperial temperature probe diameters.
  • High temperature variant available for measurement up to 250°C.
  • Connector / flying wire interfaces.
  • Electronics available for analog or CAN outputs without the need for external CPU processing.



Reventec reacts rapidly to custom design requests and we specialise in small batch, low volume production from 1 – 25 pieces. We have the ability to manufacture volume production of more than 5,000 pieces. Our design and development office is based alongside our manufacturing facility in the UK allowing for quick turnarounds of bespoke sensors when required.

Reventec specialises in highly-customised design projects; please contact us to discuss your requirements.
