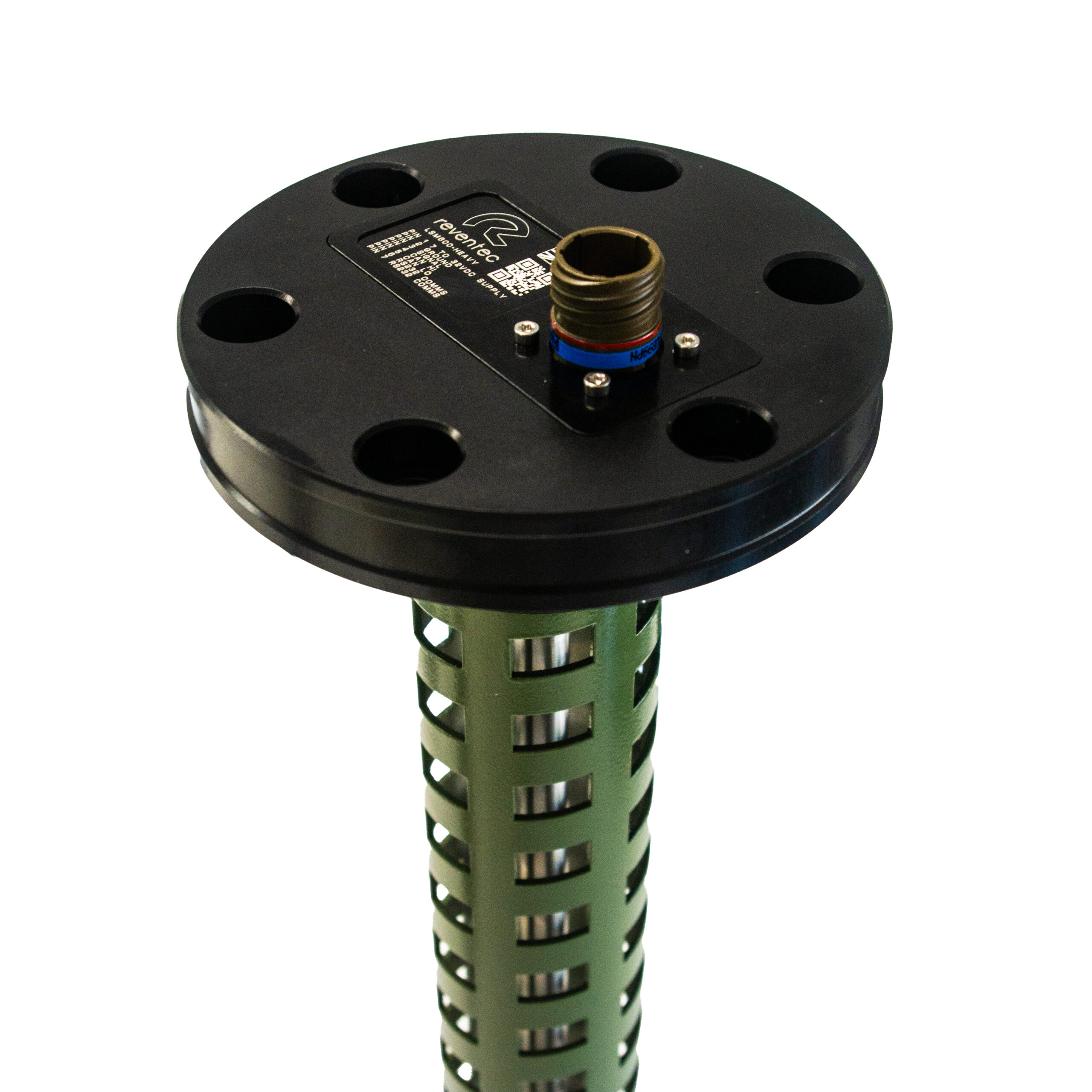

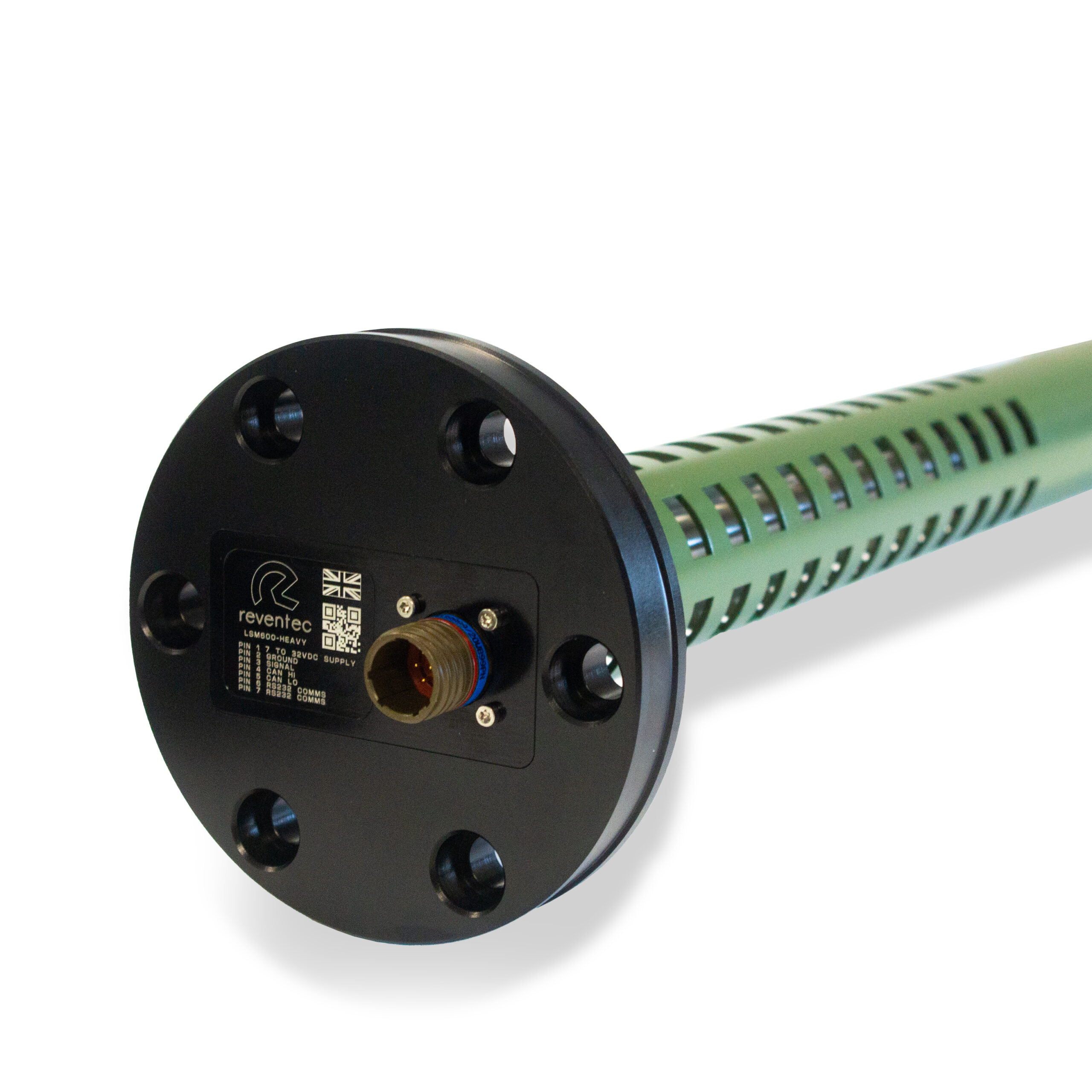

Mil-Spec Heavy-Duty 6-Bolt Oil and Fuel Level Sensor

Ultra-rugged, solid-state capacitive oil and fuel level sensor engineered for heavy-duty military vehicles. A robust IP69K rated instrument that delivers reliable measurement consistently in high vibration environments.

  • Extremely accurate; ±0.5% of reading
  • Rugged anodised aluminium design
  • Continuous, solid-state capacitive sensing
  • A wide operating temperature range of -55°C to +150°C
  • 0-5V Analog, CAN or Analog and CAN Outputs
  • IP69K rated
  • Mil-Std EMC Certified

Description

LSM600-HEAVY

Engineered as an ultra-rugged oil and fuel level sensor designed to withstand extreme temperatures, tolerate high vibration environments and benefit from shock resistance, the LSM600-HEAVY is ideal for measurement onboard ground vehicle platforms. Featuring a 6-bolt mounting configuration for a secure fitting and constructed from rugged hard anodised aluminium for longevity, the instrument is extremely robust and available in custom sizes up to 700mm.

The LSM600-HEAVY is a solid-state instrument with no moving parts that may suffer from mechanical wear over time or mechanical failure and therefore requires minimal maintenance. With a superior accuracy of ±0.5% of reading, the capacitive liquid level sensor is calibrated in the intended fluid type for precision and delivers continuous measurement so operators have real-time data for deeper analysis.

Boasting a wide temperature range of -55°C to +150°C, this heavy-duty oil and fuel level sensor is equipped to withstand rapid temperature changes. The integrated electronics are housed within the sensor head allowing for an extremely small footprint without the need for external CPU processing and can be calibrated to 0-5V analog, CAN or analog and CAN outputs. All capacitive liquid level sensors in our LSM range have 2 bar differential tank pressure ratings, with up to 10 bar pressure ratings available upon request, and are certified to MIL STD 461G and RCTA DO160F.

The LSM600-HEAVY is compatible with a large portfolio of defence land vehicles and is well-suited for military combat and engineering vehicles. Integrated perforated tube, the LSM600-HEAVY includes mechanical damping to maintain accuracy during dynamic operations.

Reventec capacitive liquid level sensors continuously monitor critical liquid levels to improve performance and monitor health of critical vehicle components to allow for timely predictive maintenance and to avoid unnecessary breakdowns in challenging terrains and combat zones. Ensuring vehicle reliability and readiness is extremely vital for efficient operations in challenging military environments.



EMC Approvals

EMC approvals for the LSM600-HEAVY includes: MIL STD 461G Army Ground Limits: CS114, CS115, CS116, RE102, RS103, RS101, CE102, CS101, RTCA DO160F: Section 25 ESD Cat. A



Output Options

Output options include:

  • Analog 0-5V (typically calibrated 0.25V empty, 4.75V full)
  • CAN and Analog 0-5V
  • CAN only

The LSM600-HEAVY is supplied with an integrated 38999 connector for direct integration into the vehicle system. Reventec’s capacitive technology is highly versatile which allows for all designs to be adapted to specific lengths, mounting configurations and customised to fit a range of connector types dependent on requirement.



LSM Capacitive Liquid Level Sensors

The LSM600-HEAVY is a capacitive liquid level sensor in our military product range, equipping ground vehicle manufacturers, integrators and subsystem manufacturers with real-time measurement of vital vehicles components. Reventec has vast experience over the past decade delivering highly customised sensor solutions and have the skill and expertise to design and build sensors to fit specific spatial constraints, fluid type, connector and cabling requirements. Please contact us to discuss your requirements with a member of our team.
