Mil-Spec Ground Vehicle Transmission Oil Level Sensor

A rugged capacitive oil level sensor specifically designed for military ground vehicle transmission oil measurement. Built in stainless steel, the robust sensor is highly-vibration and shock tolerant and available in custom sizes up to 700mm long.

  • Extremely accurate; ±0.5% of reading
  • Mil-Std EMC Certification to MIL STD 461G and RCTA DO160F
  • Continuous, solid-state capacitive sensing technology
  • 0-5V Analog, CAN or Analog and CAN Outputs
  • Robust stainless steel construction for advanced durability
  • -40°C to +125°C operating temperature range (-55°C to +150°C variant available)
  • IP69K Rated

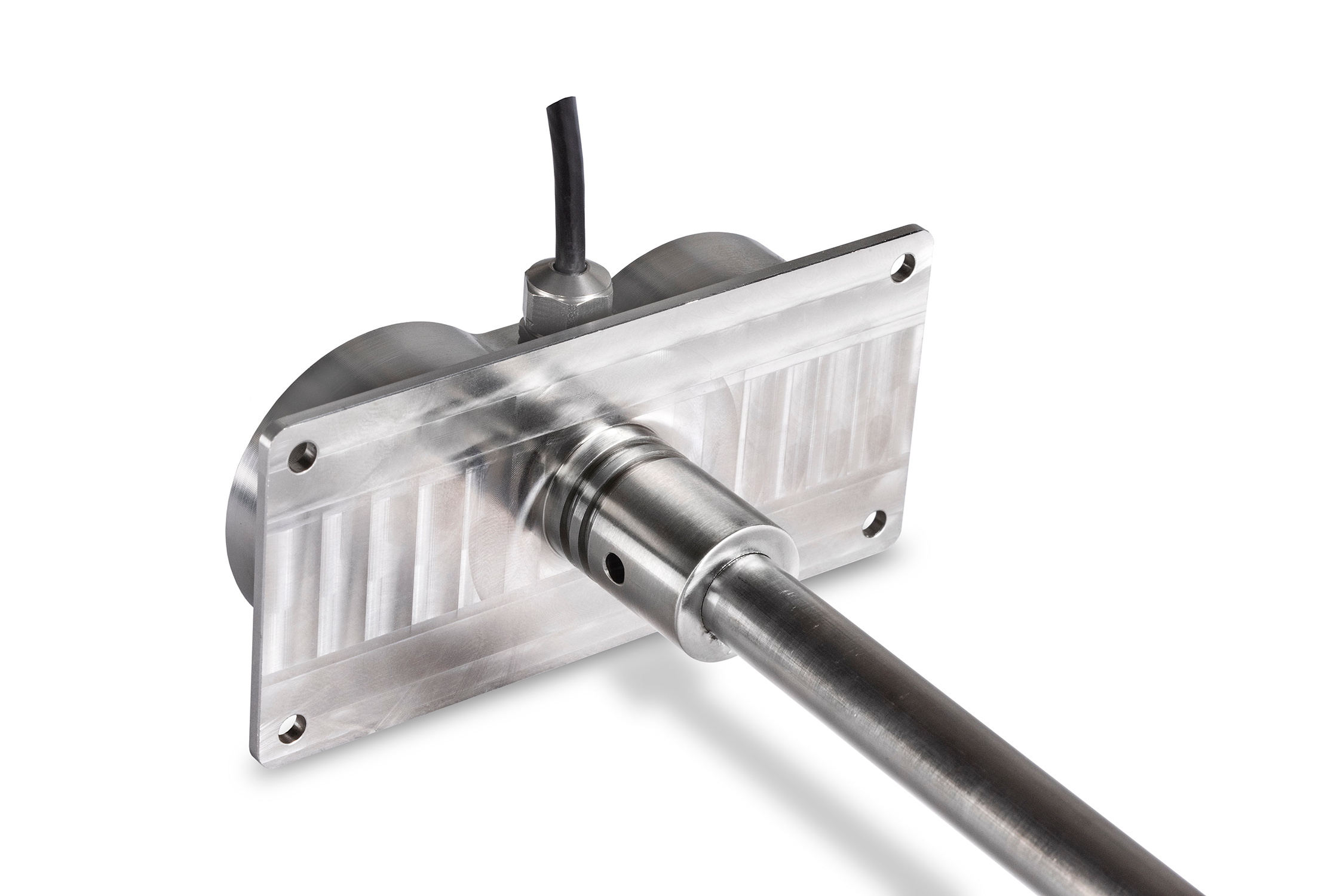

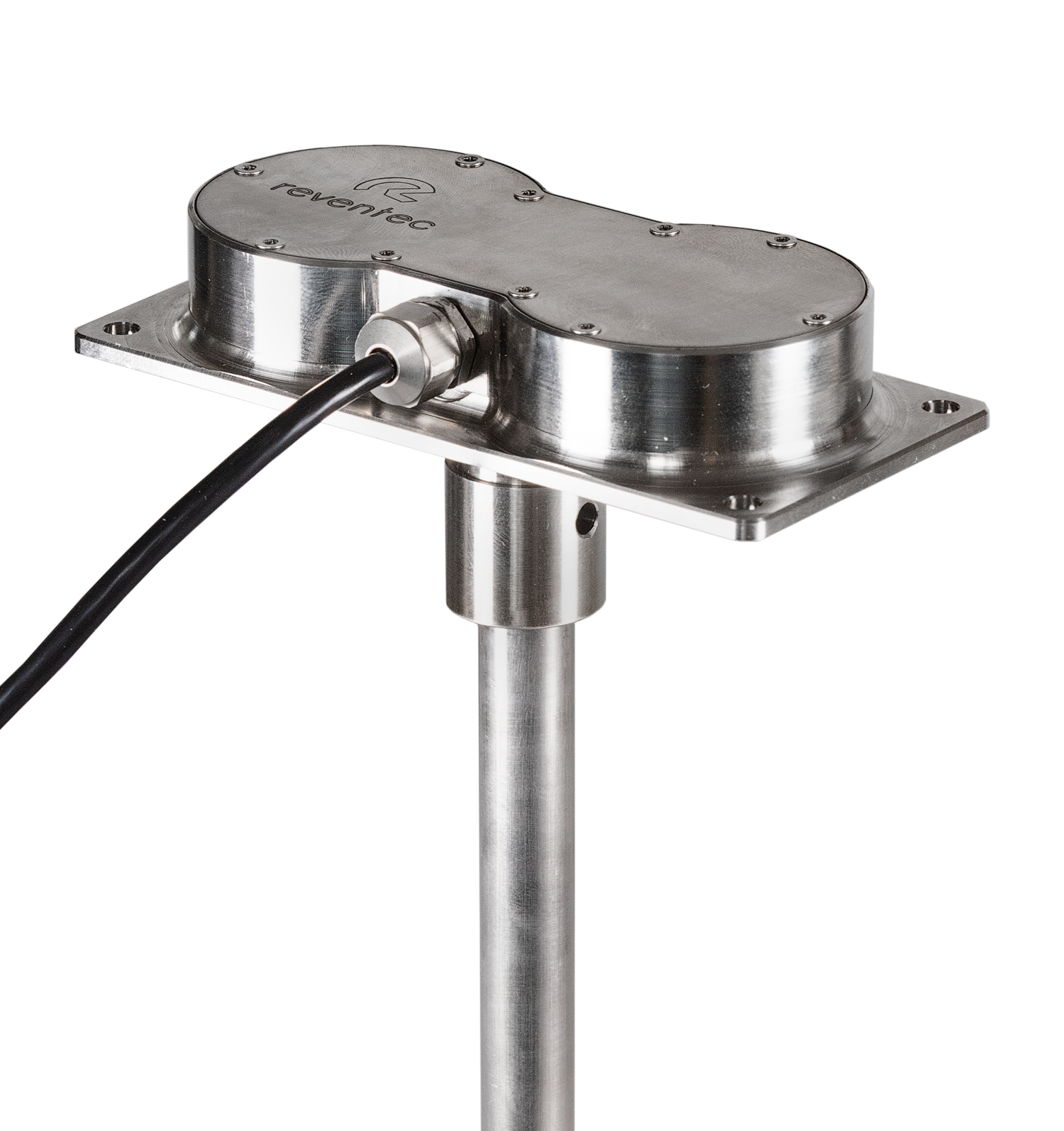

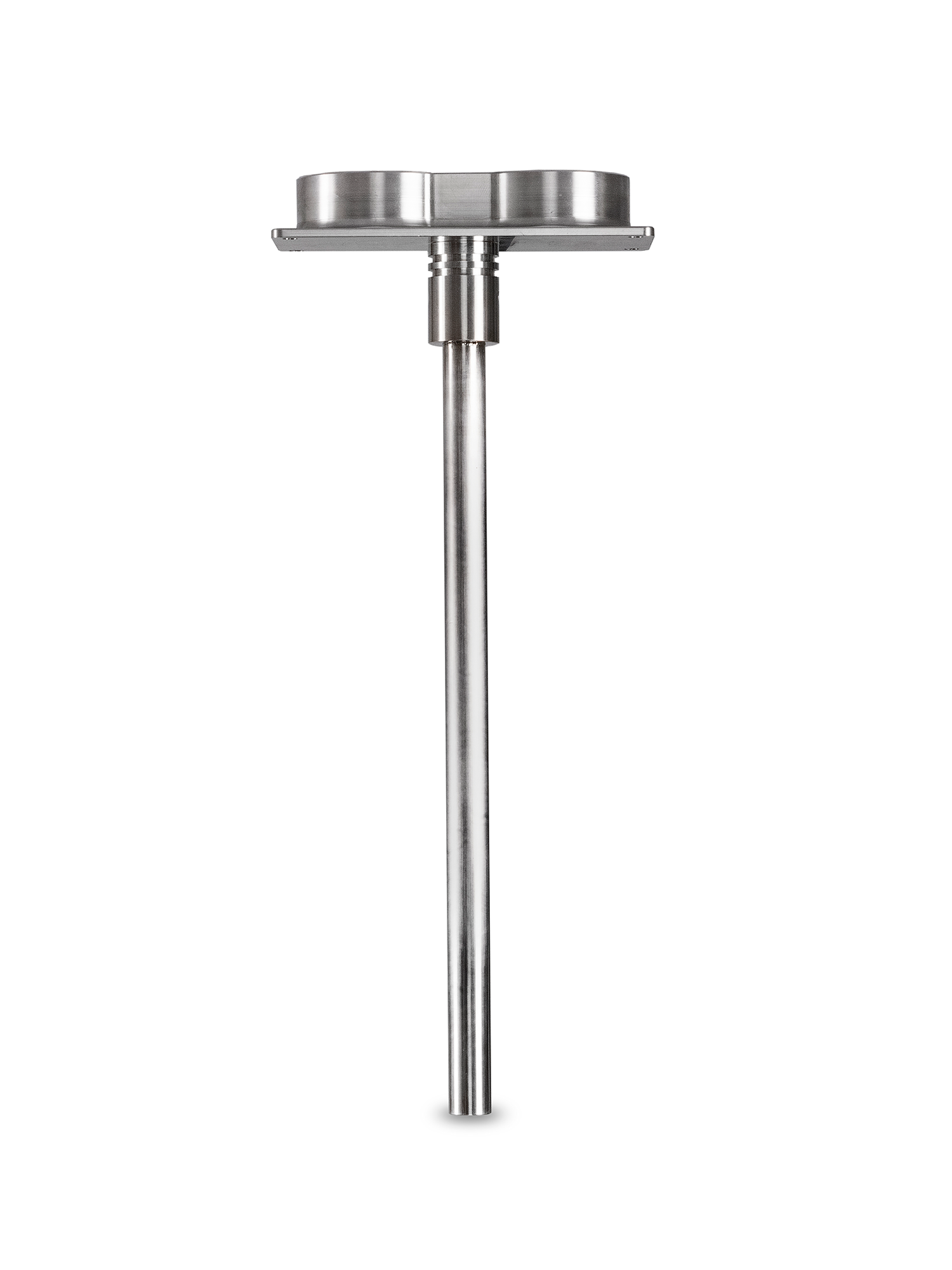

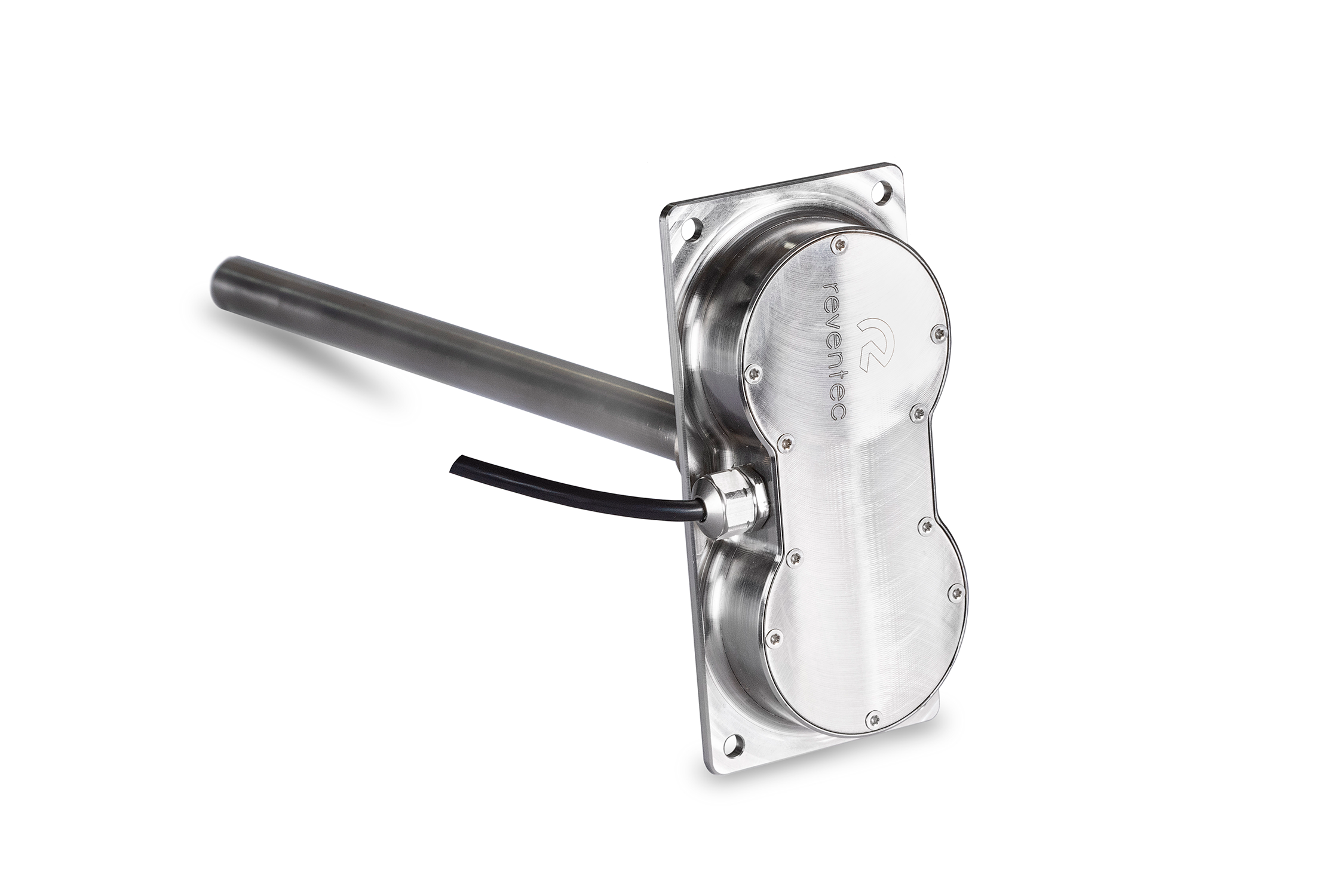

The Reventec Mil-Spec Transmission Oil Level Sensor (LSM400-CUSTOM) utilises proven capacitive level measurement technology to continuously measure contained fluids to a high accuracy. With robust stainless steel construction and a 4-bolt mounting configuration, the device is ideal for measurement onboard ground vehicle platforms and valuable for efficient operations in challenging military environments.

As a solid-state instrument, the LSM400-CUSTOM benefits from not having physical moving parts that may suffer from mechanical wear. This reduces the risk of mechanical failure and minimizes maintenance demands to enhance the overall reliability and longevity of the sensors. The integrated electronics are housed within the sensor head allowing for an extremely small footprint without the need for external CPU processing. Both the probe and electronics have a high operating temperature of -40°C to +125°C, with -55°C to +150°C temperature variants available. Certification to MIL STD 461F and RCTA DO160F available.

Through continuously monitoring vital vehicle fluid vehicles, the LSM400-CUSTOM prevents situations which could impact vehicle performance or compromise mission objectives. Early detection of leaks or other discrepancies within defence vehicles can improve passengers safety in combat zones by enabling preventative maintenance in advance of an issue developing.

Reventec capacitive liquid level sensors’ measurement accuracy is unaffected by physical orientation allowing for convenient placement within fuel and oil tanks. All capacitive liquid level sensors in our LSM range have 2 bar differential tank pressure ratings, with up to 10 bar pressure ratings available upon request, and are highly vibration and shock tolerant. The LSM400-CUSTOM is calibrated in the intended fluid to achieve superior accuracies of ±0.5% of reading.

EMC Approvals

EMC approvals for the LSM400-CUSTOM includes: MIL STD 461G Army Ground Limits: CS114, CS115, CS116, RE102, RS103, RS101, CE102, CS101, RTCA DO160F: Section 25 ESD Cat. A

Output Options

Output options include:

  • Analog 0-5V (typically calibrated 0.25V empty, 4.75V full)
  • CAN and Analog 0-5V
  • CAN only

The LSM400-CUSTOM is supplied, as standard, with a flying lead for direct integration into a vehicles wiring harness. Reventec’s capacitive technology is highly versatile which allows for all designs to be adapted to specific lengths, mounting configurations and customised to fit a range of connector types dependent on requirement, including MIL-DTL-38999 connectors.

LSM Capacitive Liquid Level Sensors

The LSM400-CUSTOM is a capacitive liquid level sensor in our military product range, equipping ground vehicle and UAV manufacturers with real-time measurement of vital vehicles components. Reventec has vast experience over the past decade delivering highly customised sensor solutions to our customers and have the expertise to design and build sensors to fit specific spatial constraints, liquid type requirements, connector and cabling requirements. Please contact us to discuss your requirements with a member of our team.
