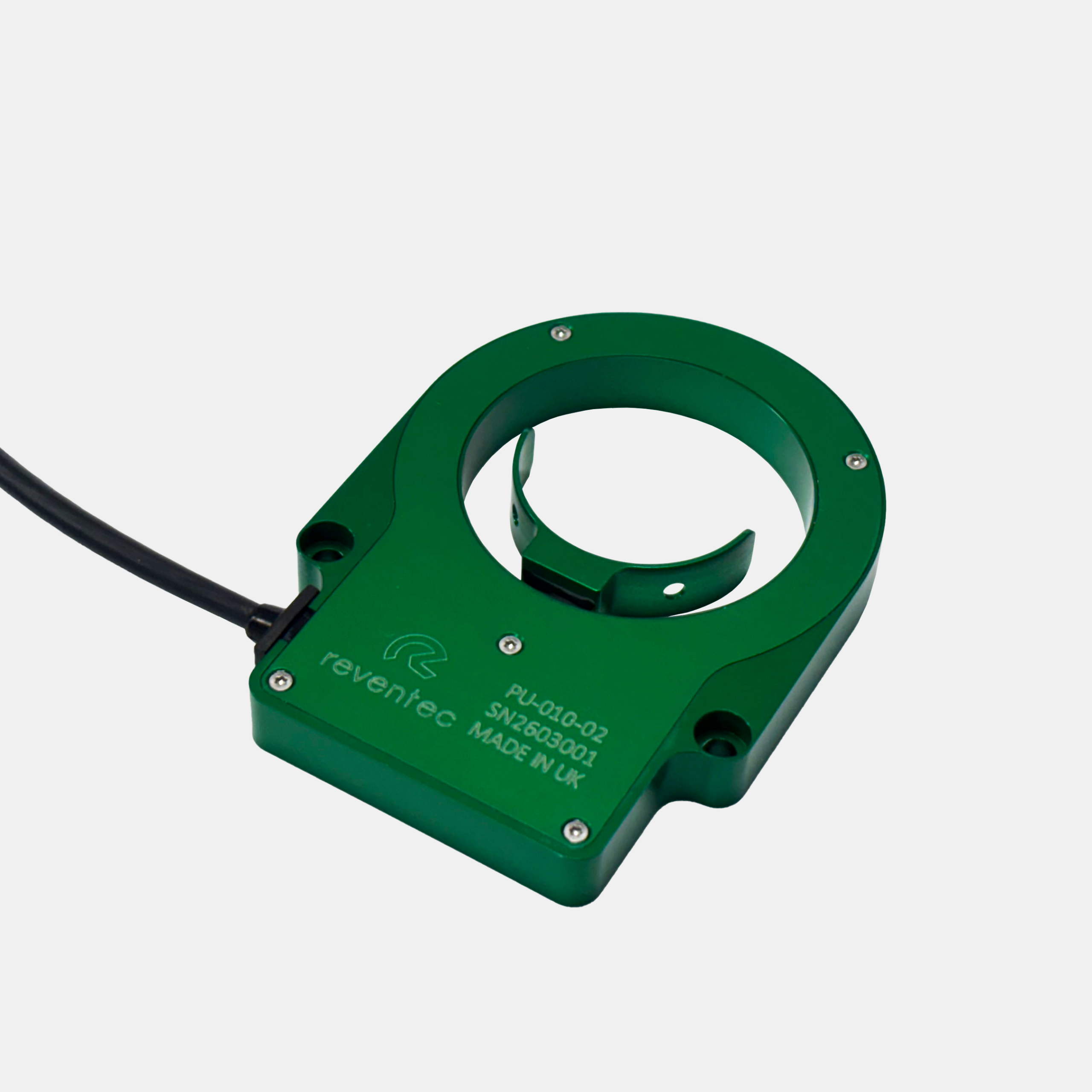

Quantum TMR 360° Rotary Steering Angle Sensor

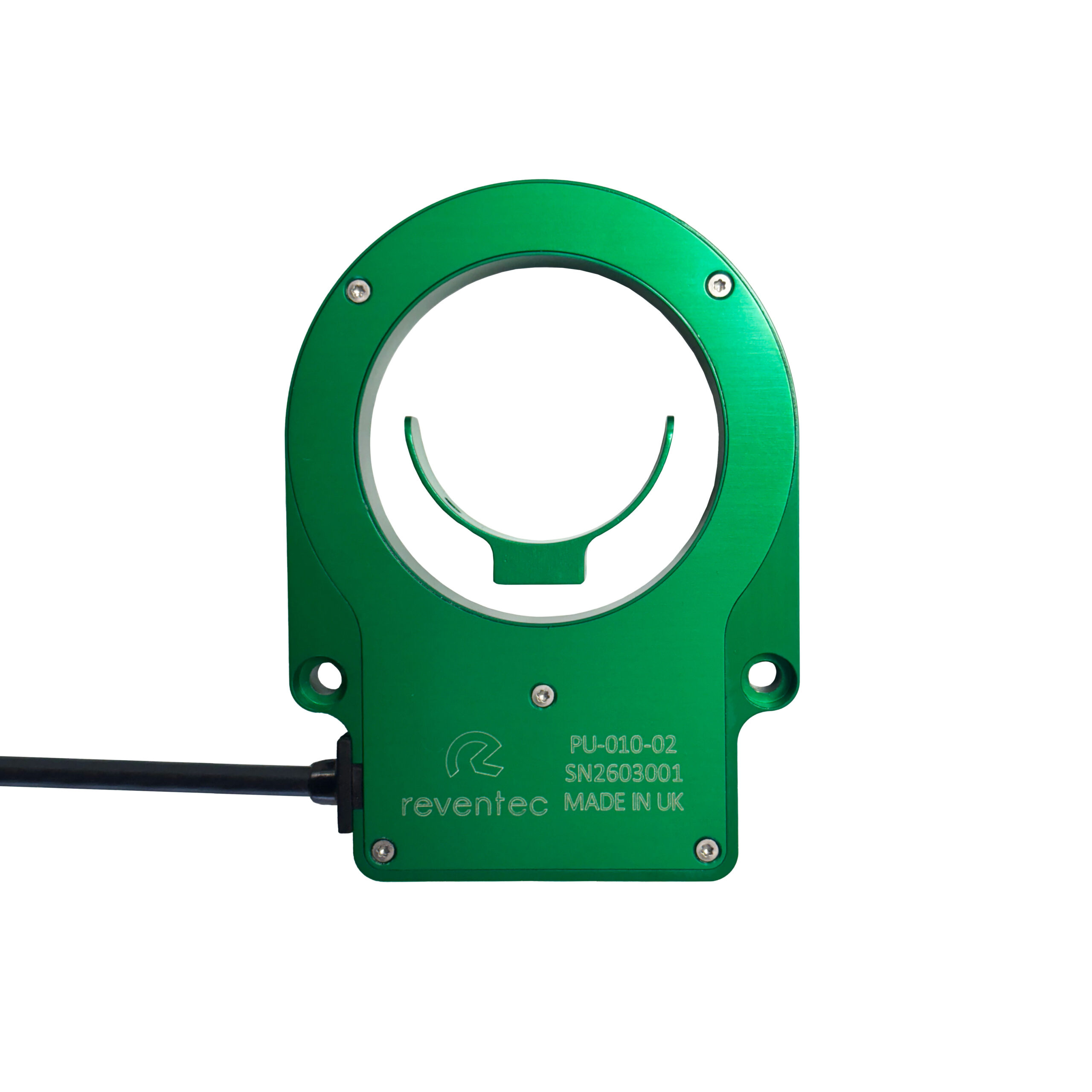

Quantum TMR 360° Rotary Steering Angle Sensor - Image 2

Quantum TMR 360° Rotary Steering Angle Sensor

Quantum TMR 360° Rotary Steering Angle Sensor

A lightweight, non-contact rotary position sensor designed to measure the steering angle measurement in high-performance motorsport vehicles. The solid-state sensor utilises advanced Tunnelling MagnetoResistive (TMR) technology for long-term stability in high-vibration motorsport environments and provides a continuous 0-359° measurement range for precise, real-time, single-turn steering angle feedback for driver analysis and vehicle dynamics tuning.

  • 0-5V Analog and CAN output
  • 12 bit resolution
  • Rapid 2kHz update rate enabling ultra-fast sampling for race telemetry
  • 0 – 359 degrees of measurement sensing range
  • Advanced accuracies of ±0.5% of reading
  • IP67 rated
Categories: ,

Description

Quantum TMR 360° Rotary Steering Angle Sensor (PU-010-02)

The Quantum TMR™ 360° Rotary Steering Angle Sensor delivers uncompromising accuracy, ultra‑fast 2 kHz response rates and reliability – making it the ideal steering angle sensor for professional race car applications. Designed with Reventec’s advanced Quantum Tunnelling MagnetoResistive (TMR) technology, this solid‑state rotary sensor provides continuous, real‑time 0–359° measurement in the harshest motorsport environments.

The Quantum TMR™ steering sensor offers race teams a significant performance advantage by delivering highly accurate steering angle mapping for telemetry, driver development and chassis optimisation. Its low maintenance, solid-state design ensures long‑term reliability across an entire race season, reducing servicing demands. With configurable analog and CAN outputs, the sensor integrates quickly into any steering system architecture, while custom housing options, connector choices and tailored cable lengths provide complete fitment flexibility for bespoke racing builds.



Options include:

  • Custom housing to fit the intended application’s spatial constraints.
  • Multichannel redundancy available for reliability and repeatability.
  • Variety of connector interfaces to choose from.
  • Analog and/or CAN outputs without the need for external CPU processing.



Quantum TMR™ Programmable Position Sensors

The Motorsport Rotary Steering Angle Position Sensor is a measurement device in our Quantum TMR™ position sensor range developed specifically to deliver rotary position feedback for motorsport vehicle applications. Our range of Quantum TMR™ position sensor instruments deliver continuous, precision position feedback across linear, angular and rotary component movement paths whilst leveraging the latest advancements in Tunnelling MagnetoResistive (TMR) technology, quantum physics equations and robust components. Our sensors are factory-calibrated to specific applications and specifications, ensuring high accuracy and simple installation.

Please contact us to discuss your requirements.

Mechanical Details

Tunnelling Magneto Resistive Technology

The Quantum TMR 360° Rotary Steering Sensor leverages the latest advancements in TMR technology for non-contact accurate position sensing. Discover our technology video to explore the science behind the technology, how it works and how it is used across our range of linear, arc and position sensors.
