Hydraulic Actuator Linear Position Sensor

Hydraulic Actuator Linear Position Sensor

A robust, programmable hydraulic actuator linear position sensor designed to provide measurement over a 12mm sensing range in tough environments.

  • Advanced accuracies of ±0.5% of reading
  • Capable of detecting through non-ferrous material
  • Analog or CAN outputs available
  • 12mm measurement range
  • 12 bit resolution
  • Rapid 5kHz update rate
  • Certified to MIL STD 461G and RCTA DO160F EMC standards.
  • IP67 rated

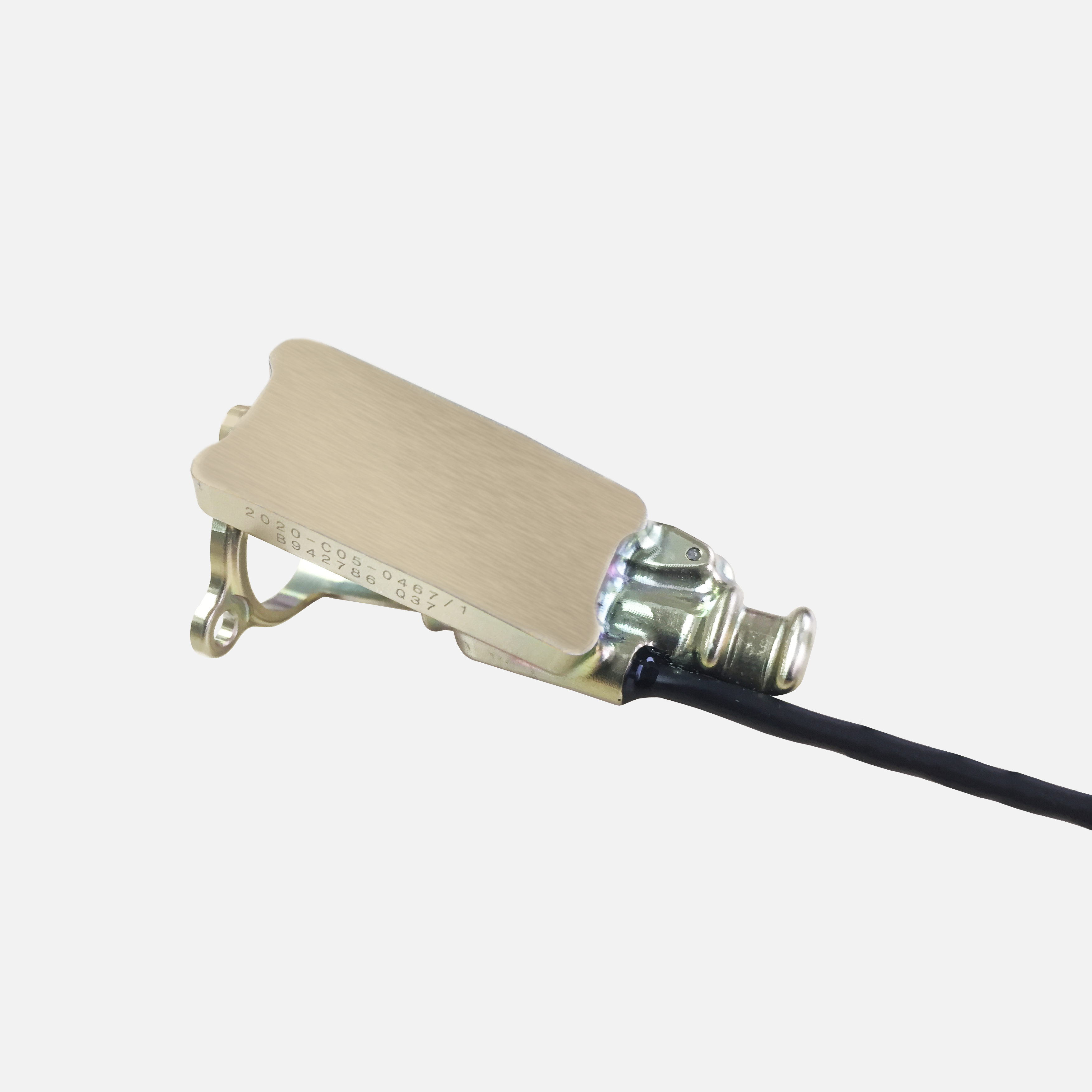

Hydraulic Actuator Linear Position Sensor (FU-060-01)

The hydraulic actuator linear position sensor is a non-contact, programmable linear position sensor suitable for a variety of linear actuator applications.

Reventec’s Quantum TMR technology is capable of sensing through up to 40mm air gaps and through up to 20mm of non-ferrous material such as stainless steel and aluminium, depending on the magnet target. This sensor has a 12mm measurement range which can be reconfigured to measure across 0-20mm. As a solid-state device with a wide operating temperature range of -40°C to +150°C, the sensor is extremely reliable and designed to endure tough environments. Benefits from being non-contact which reduces mechanical wear and predictive maintenance.

The Hydraulic Actuator Linear Position Sensor boasts continuous measurement with a rapid update rate of 5kHz allowing devices to capture the position of the magnet target relative to the sensor in excess of 5,000 times per second. Boasting advanced accuracies of ±0.5% of reading, the sensor delivers a configurable 0.25V – 4.75V analog output with integrated CPU’s eliminating the need for additional external processing.

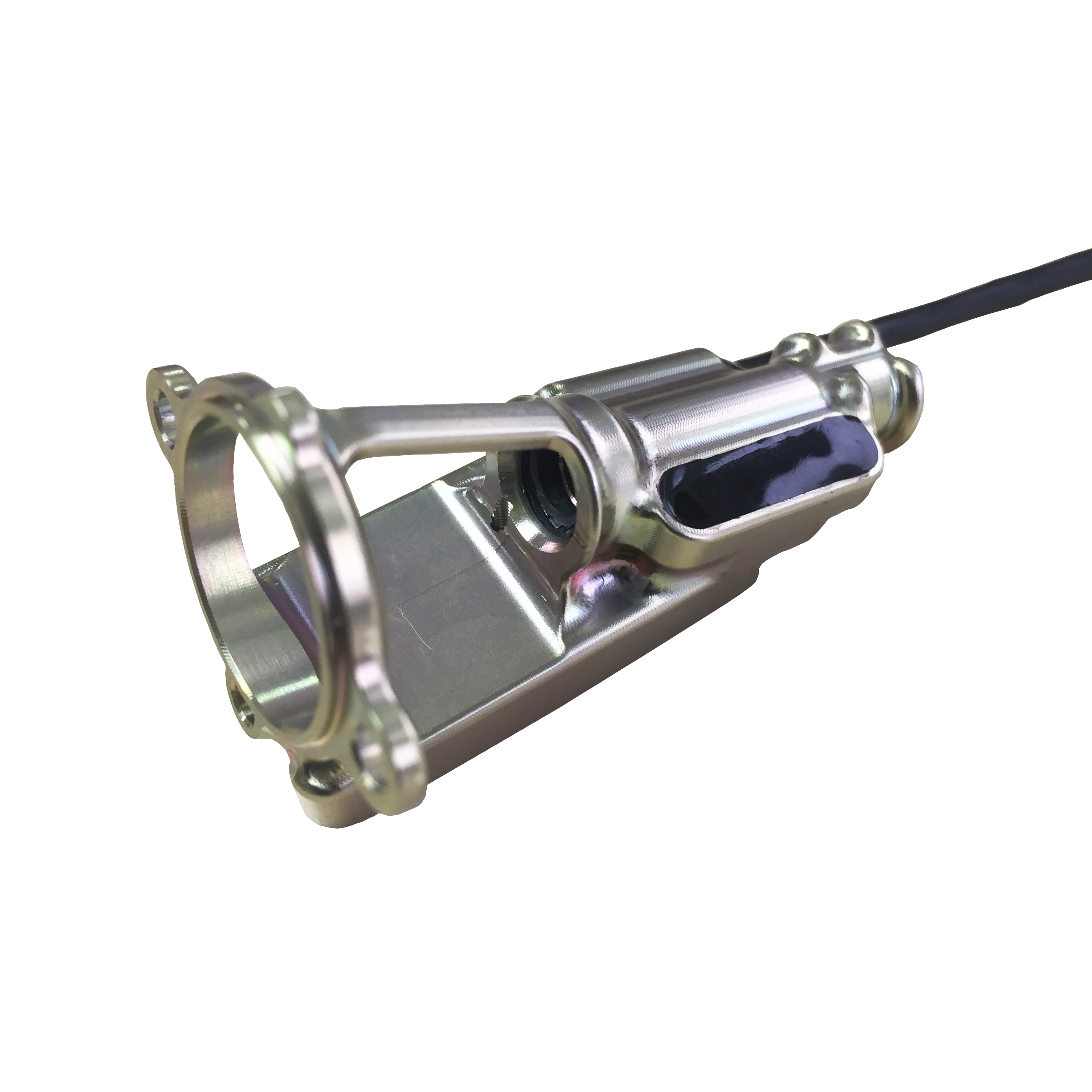

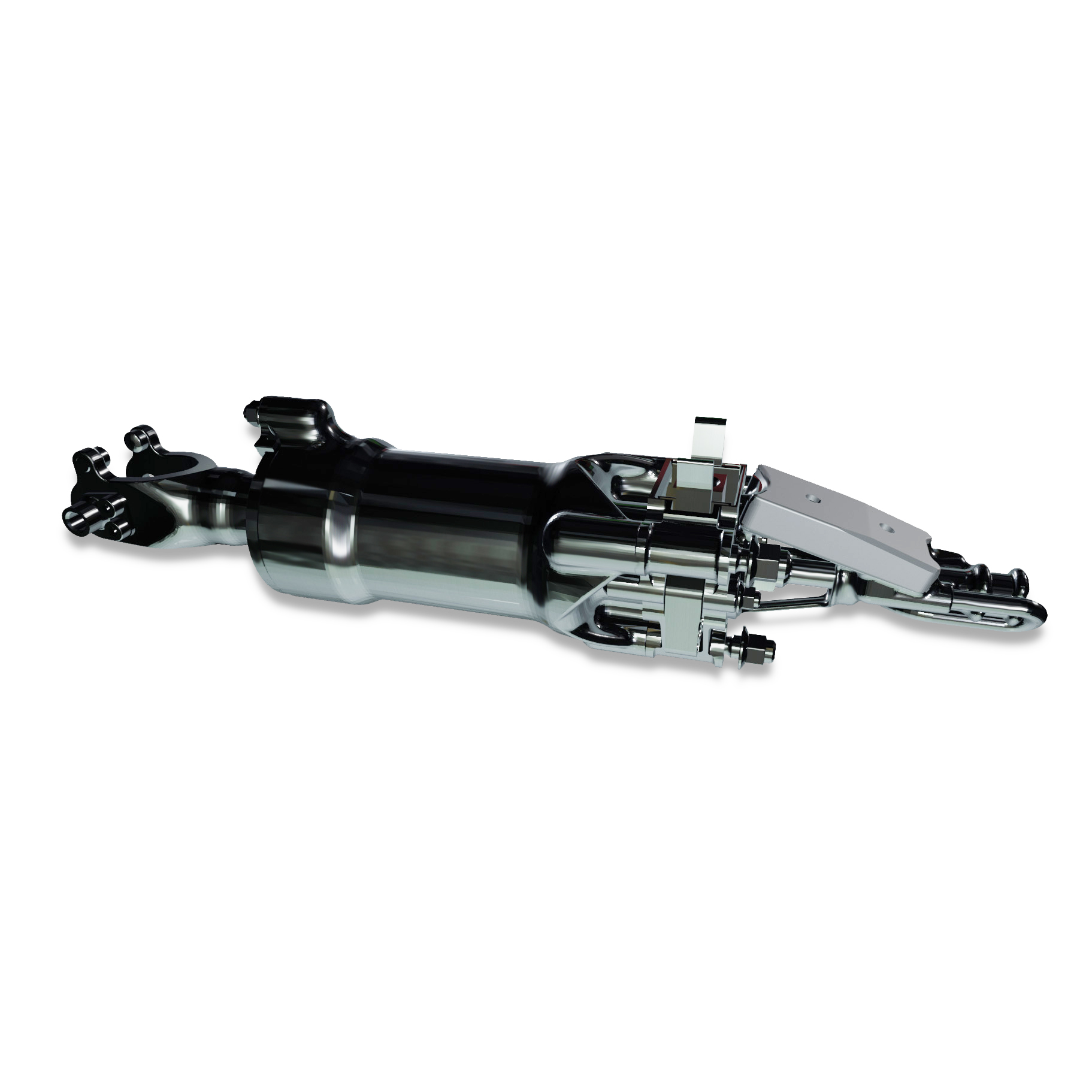

The hydraulic actuator linear position sensor shown here fits securely with M4 fasteners on to the end of the hydraulic system and measures the distance from a magnet target located within the hydraulic piston that moves with the plunger. As this technology is highly customisable, the shape and size of each linear position sensor is adapted to fit the spatial constraints and measurement requirements of each intended application, ensuring it is custom built in any shape, size, and in a variety of construction materials with cable and connector options. Supplied with a flying lead and factory calibrated to customers specific measurement path and range to ensure simple plug and play installation.

EMC Approvals

EMC approvals for this device includes: MIL STD 461G Army Ground Limits: CS114, CS115, CS116, RE102, RS103, RS101, CE102, CS101, RTCA DO160F: Section 25 ESD Cat. A

Options include:

  • Custom housing to fit the intended application’s spatial constraints.
  • Multichannel redundancy available for reliability and repeatability.
  • Semi-remote and fully remote electronics available for high temperature variants.
  • Variety of connector interfaces to choose from.
  • Analog or CAN outputs with the need for external CPU processing.


Quantum TMR™ Programmable Position Sensors

The Hydraulic Actuator Linear Position Sensor is a measurement device in our Quantum TMR™ position sensor range developed specifically for monitoring components in defence ground platforms (engineering vehicles and combat vehicles), motorsport vehicles and rail and off-highway applications. Our range of Quantum TMR™ position sensor instruments deliver continuous, precision position feedback across linear, angular and rotary component movement paths whilst leveraging the latest advancements in Tunnelling MagnetoResistive (TMR) technology, quantum physics equations and robust components. Our sensors are factory-calibrated to specific applications and specifications, ensuring high accuracy and simple installation.
