Quantum TMR 100° Arc Position Sensor

Quantum TMR 100° Arc Position Sensor

A robust, lightweight programmable 100 degree arc position sensor with an analogue VDC output equipped for accurate position measurement across extreme environments. Featuring solid-state technology for minimal maintenance, the sensor is built to last.

  • Rapid response rate of 5kHz
  • Extremely accurate; ±0.5% of reading
  • ± 50 degrees of shallow arc measurement range
  • 12 bit Analogue VDC Output Resolution
  • IP67 rated

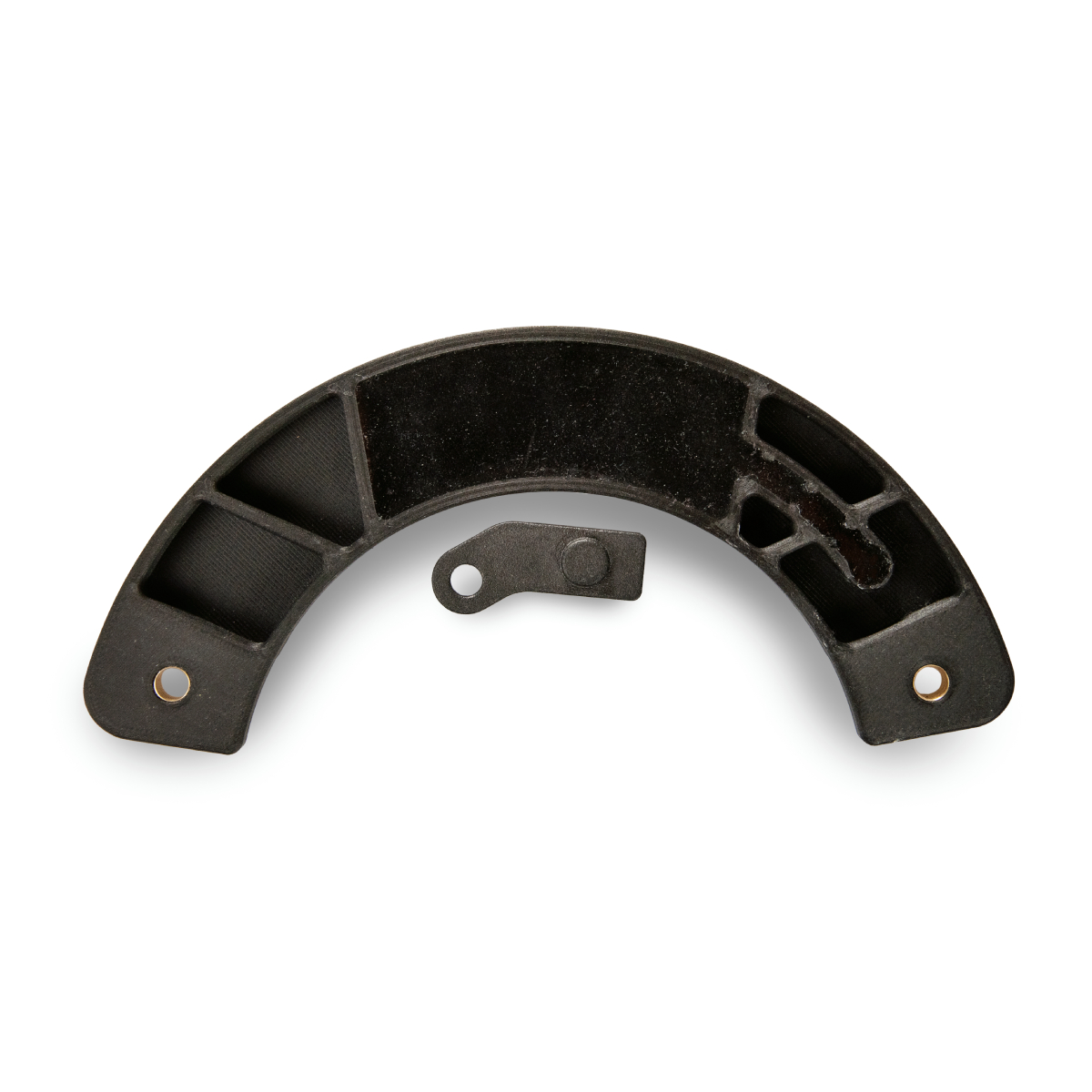

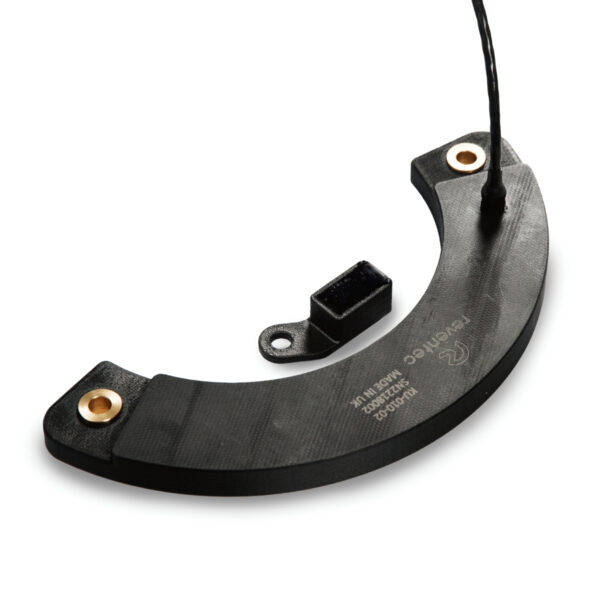

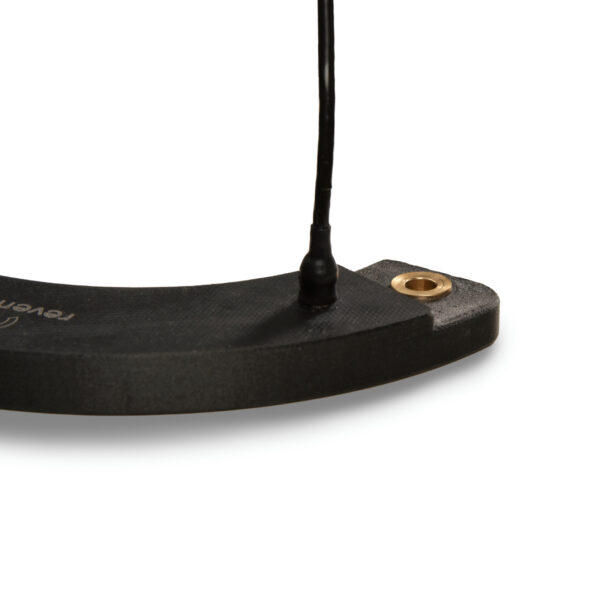

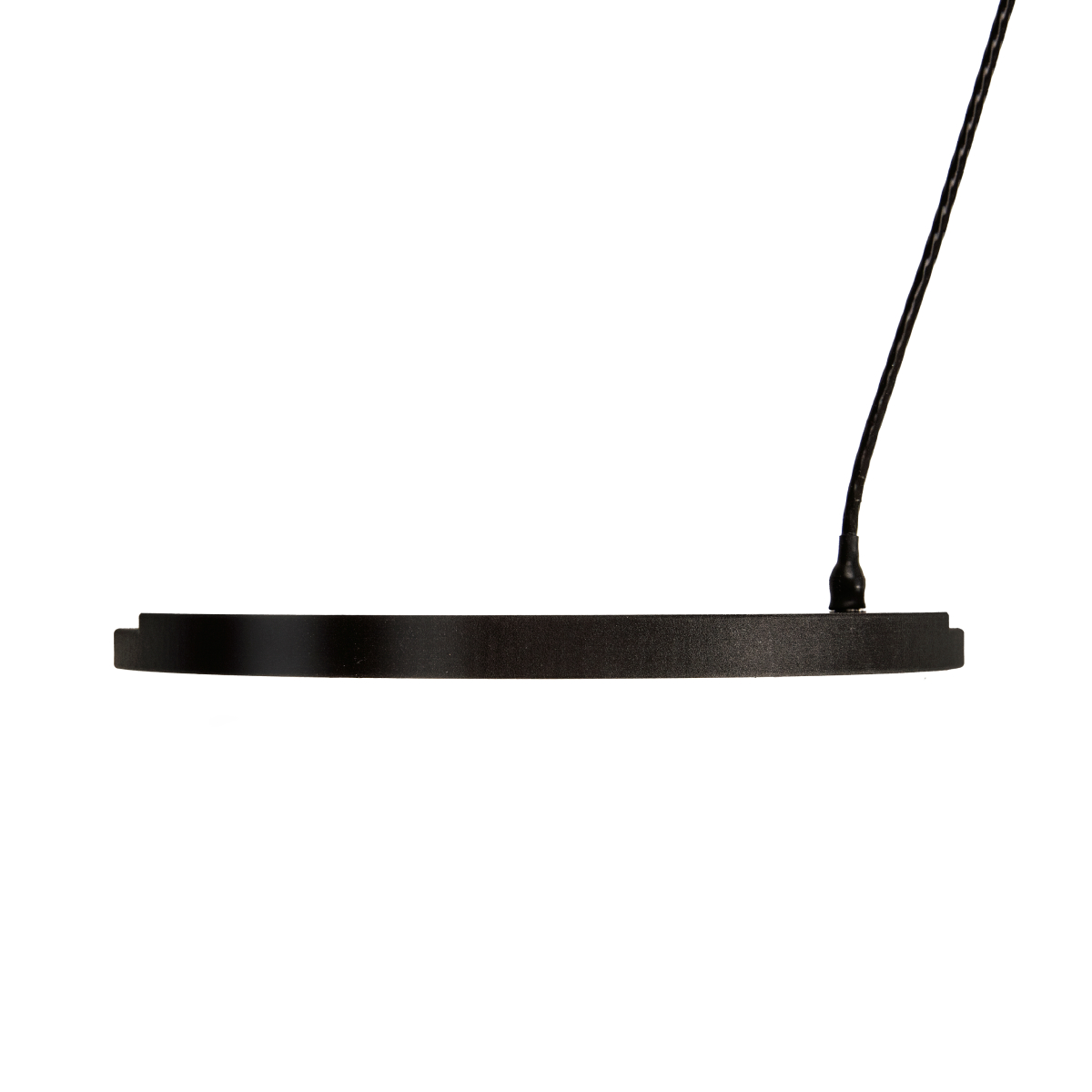

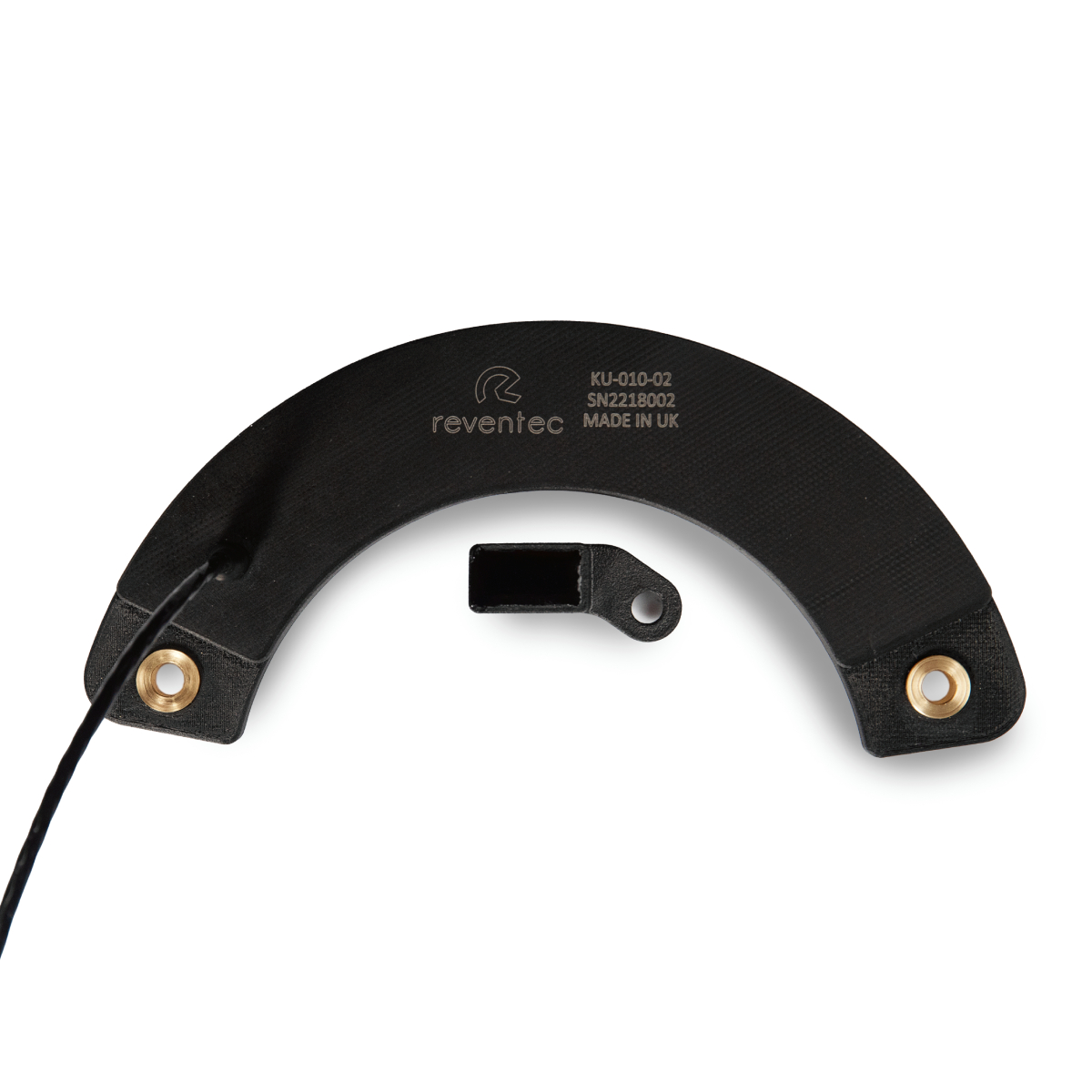

Quantum TMR 100° Arc Position Sensor (KU-010-02)

The 100° Arc Position Sensor features the latest Quantum TMR technology for solid-state, non-contacting, continuous position measurement. Developed for the industrial sector, the robust sensor is equipped to handle the demands of operating in harsh environments.

An integrated CPU located within the durable sensor housing creates an analogue voltage output for easy implementation into your project. Benefits of the sensor includes a reduction in operational downtime of machinery by providing real-time measurement of component movements.

The instrument has a programmable 0° to 100° sensing range where it detects the position of the supplied magnet target relative to the sensor. With no moving parts and a sealing rating of IP67, the sensor performs reliably across a temperature range of -40°C to +125°C. Boasting advanced accuracies of ±0.5% of reading, the sensor is capable of achieving measurements across up to 40mm air gaps from sensor to target and through up to 20mm of non-ferrous material such as aluminium or stainless steel. Delivered with a flying lead, the Arc Position Sensor offers easy installation and mounting.

Harnessing Reventec’s expertise in highly-customised, specialist projects, all of our sensors can be modified to your specifications through specific housing geometry and material, cable length and choice of connector.

Options include:

  • Range of connector interfaces available including; MIL-DTL 38999, 26482 & 5015
  • Custom housing options to fit your application to offer analogue or CAN outputs without the need for external CPU processing.

Quantum TMR Programmable Sensors

The 100 degree arc rotary position sensor is a product from our Quantum TMR range of magnetic position sensors. Our Quantum TMR range offers powerful precision measurement of linear, angular and rotary component movement using Tunnelling MagnetoResistive (TMR) technology whilst leveraging quantum physics equations. Legacy technologies can’t achieve this level of accuracy or reliability and all of our sensors are factory-calibrated to a user’s specifications. We can supply a free GUI, should customers wish to re-programme their sensors in the field.


The Quantum TMR 100° Arc Position Sensor is a lightweight and reliable non-contact position sensor ideal for the Off-Highway Vehicles, Motorsport, Defence, UAV, Industrial, Automotive, Rail and Maritime industries.

Please contact us to discuss your requirements.

Datasheet Mechanical Details
