Quantum TMR 360° Triple Channel Rotary Position Sensor

Quantum TMR 360° Triple Channel Rotary Position Sensor

A programmable triple channel rotary position sensor well-suited for harsh environments requiring 359 degrees of measurement. Featuring non-contact Quantum TMR™ technology, the robust, solid-state sensor is capable of precision position sensing across an extreme operating temperature range.

  • Rapid response rate of 5kHz
  • Extremely accurate; ±0.5% of reading
  • 0 – 359 degrees of measurement sensing range
  • 12 bit Analogue VDC Output Resolution
  • Configurable Triple Channel Output
  • Accurate position sensing over a wide operating temperature range of -40°C to +150°C
  • IP67 Rated
Category:

Description

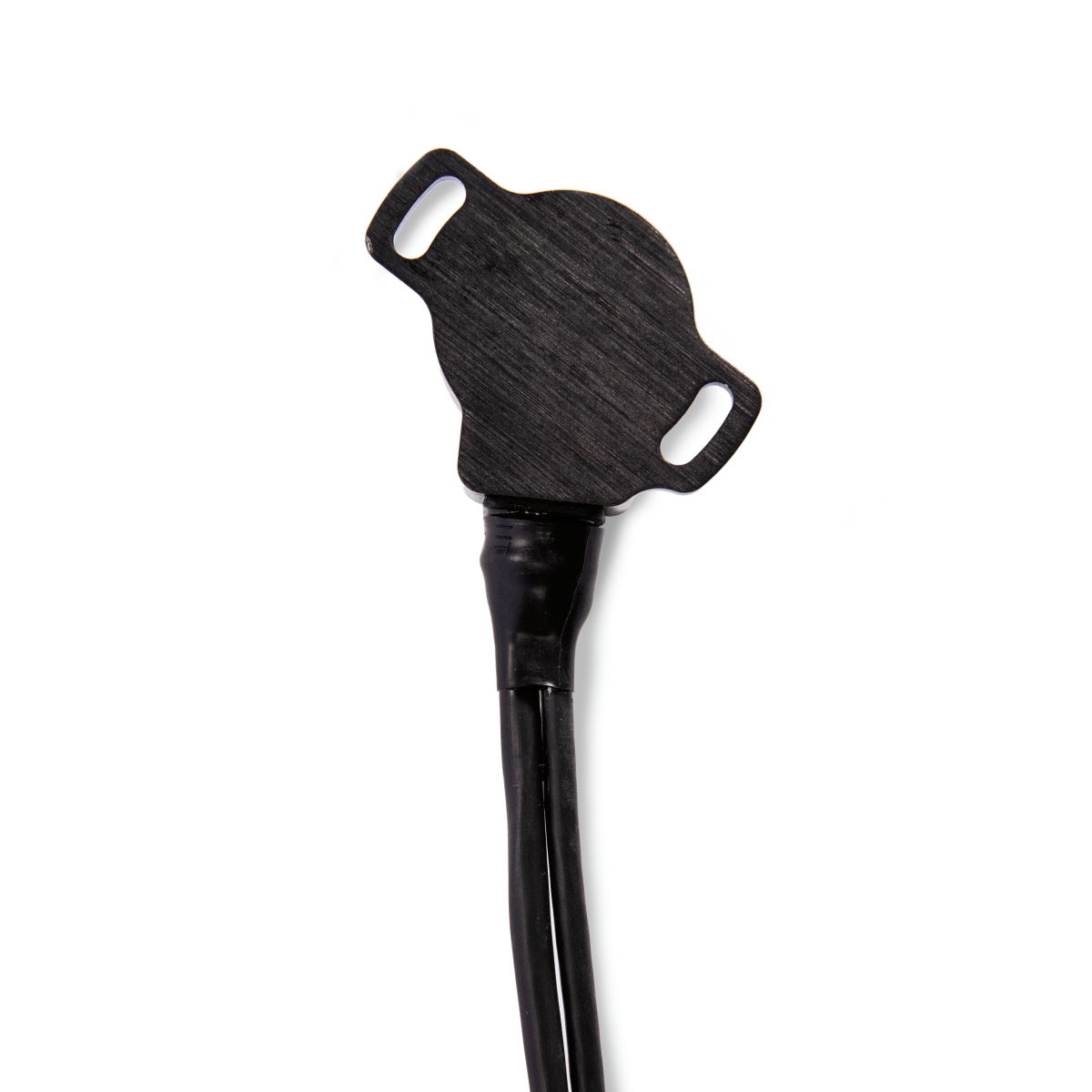

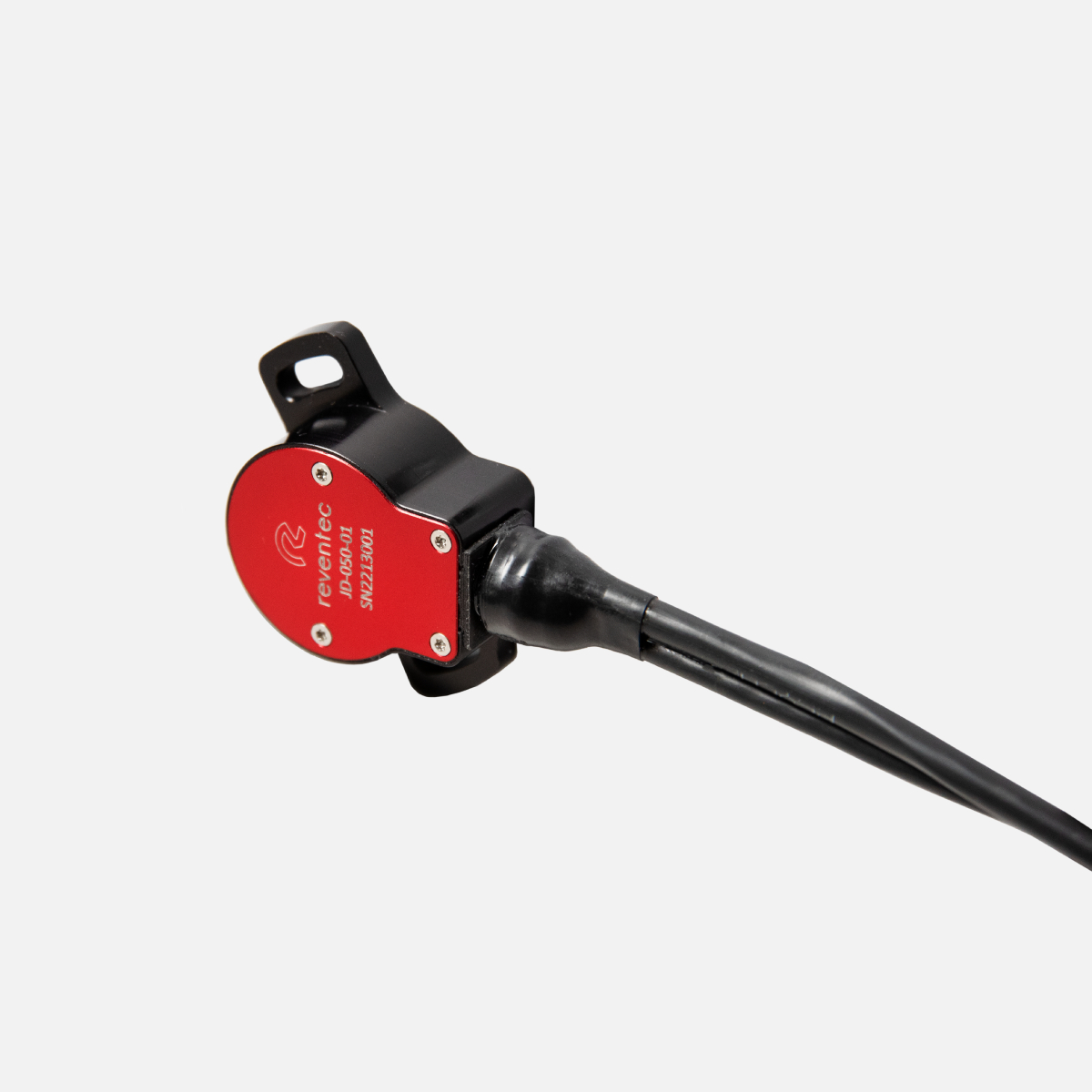

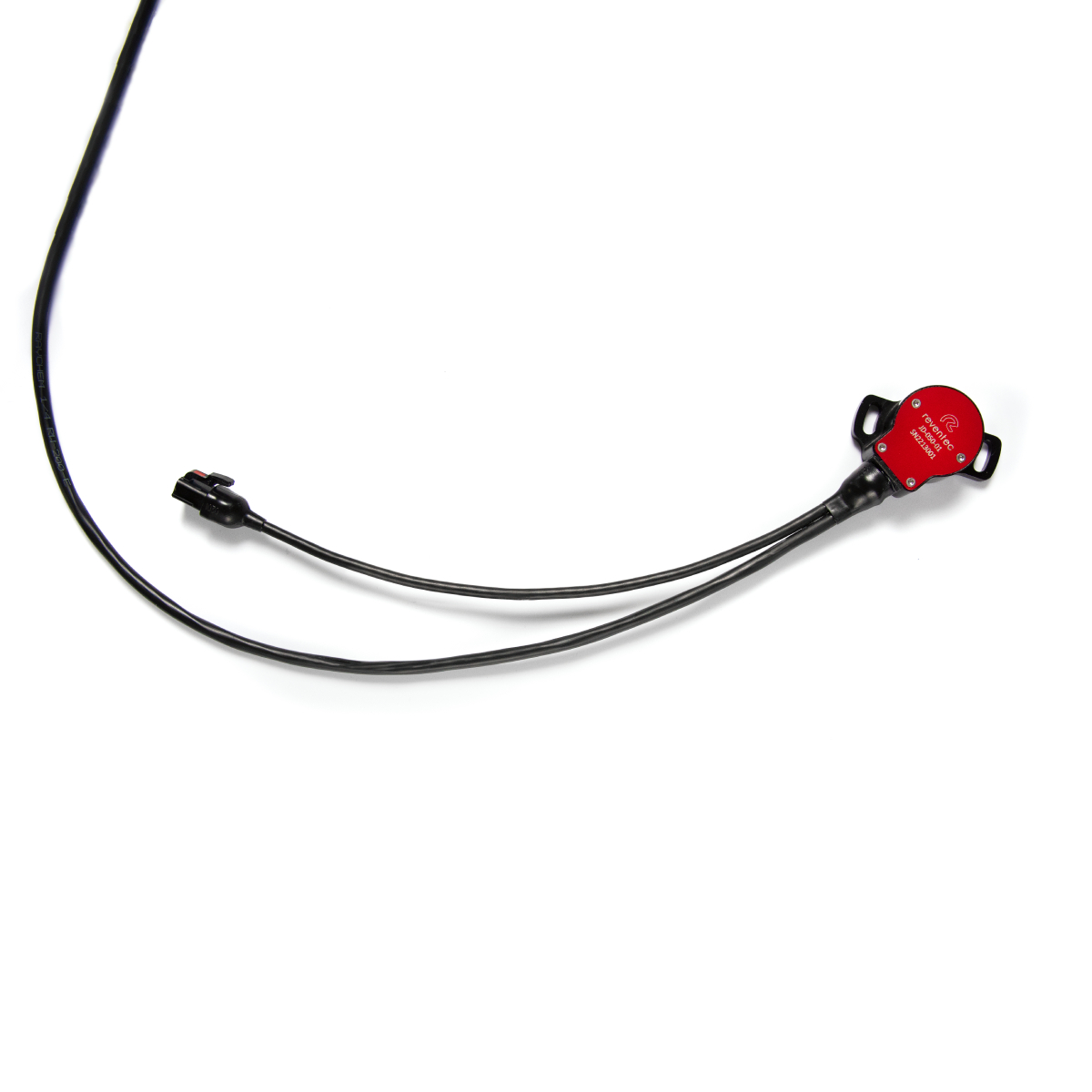

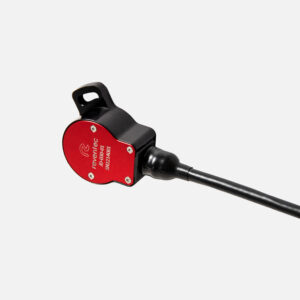

Quantum TMR™ 360° Triple Channel Rotary Position Sensor (JD-050-02)

The 360° Triple Channel Rotary Position sensor is designed to deliver reliable real-time position measurement across a harsh temperature range of -40°C to +150°C. Featuring the latest Quantum TMR™ technology for solid-state, non-contacting, continuous position measurement, the sensor was originally developed for the extreme environmental demands of the motorsport industry.

Designed as an alternative to traditional potentiometer sensors, the instrument features excellent linearity across the 0° to 359° sensing range. The multichannel device is extremely accurate with sensitivities of up to 450mV per degree and provides multichannel redundancy for reliability and repeatability.

Boasting advanced accuracies of ±0.5% of reading, the sensor is capable of achieving measurement across 40mm air gaps from sensor to target and through up to 20mm of non-ferrous material such as aluminium or stainless steel. With an IP rating of IP67, the lightweight, vibration-tolerant sensor is suitable for specialist applications.

An integrated CPU located within the durable sensor housing creates an analogue voltage output for easy implementation into your project. Benefits of the sensor includes a reduction in operational downtime of machinery by providing real-time measurement of component movements.

Reventec’s Quantum TMR™ technology offers high-performance and reliability. As one of the sensors in our Quantum TMR™ range, this position sensor utilises a modular design; for similar products available in single and dual outputs, discover the rest of our Quantum TMR™ range.

Harnessing Reventec’s expertise in highly-customised, specialist projects, all of our sensors can be modified to your specifications through specific housing geometry and material, cable length and choice of connector.

Options include:

  • Range of connector interfaces available.
  • Custom housing options to fit your application to offer analogue or CAN outputs without the need for external CPU processing.

Quantum TMR™ Programmable Sensors

The Triple Channel Rotary Position sensor is a product from our Quantum TMR™ range of magnetic position sensors. Our Quantum TMR™ range offers powerful precision measurement of linear, angular and rotary component movement positioning through non-contact Tunnelling MagnetoResistive (TMR) technology whilst leveraging quantum physics equations. Legacy technologies can’t achieve this level of accuracy or reliability and all of our sensors are factory-calibrated to a user’s specifications. We can supply a free GUI, should customers wish to programme their sensors in the field.

Applications:

The Quantum TMR 100° Arc Position Sensor is a lightweight and reliable non-contact position sensor ideal for the Off-Highway Vehicles, Motorsport, Defence, UAV, Industrial, Automotive, Rail and Maritime industries.

Please contact us to discuss your requirements.
