Dual Channel Quantum TMR Hydroplane Arc Position Sensor

Dual Channel Quantum TMR Hydroplane Arc Position Sensor

A marine Tunnelling MagnetoResistive arc position sensor specifically engineered to measure the arc movement of a hydroplane on a defence marine vessel. IP69 rated.

  • Configurable 0-5V Analog and CAN Output
  • Designed for durability in corrosive marine and subsea environments
  • Certified to MIL-STD-461F and RCTA DO160F EMC standards.
  • Rapid 5kHz update rate
  • Advanced accuracies of ±0.5% of reading
  • Integrated subsea connector
  • IP69 rated

Description

Dual Channel Quantum TMR Hydroplane Arc Sensor (HU-050-02)

The Dual Channel Quantum TMR Hydroplane Arc Sensor is a rugged, non-contact Tunnelling MagnetoResistive instrument engineered for a specific customer requirement that required the measurement of the hydroplane arc movement across a 22° arc sensing range.

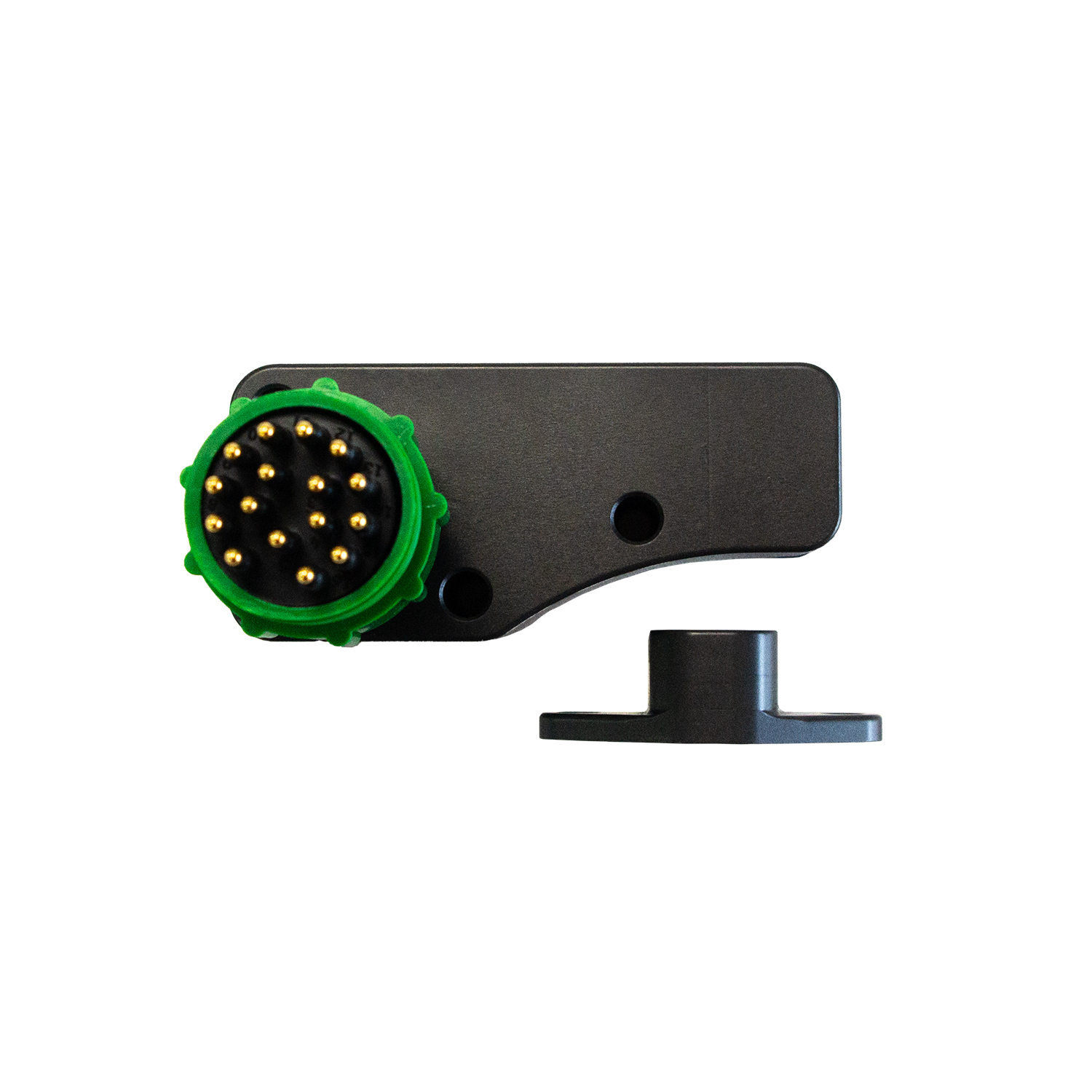

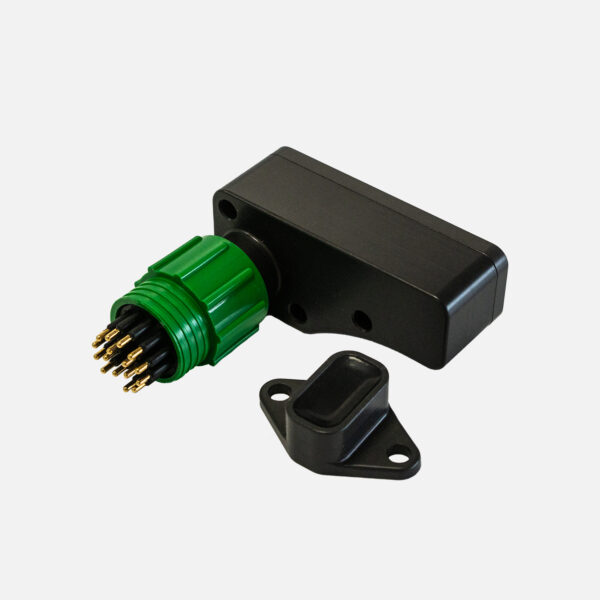

Designed for a defence marine application where product longevity and accuracy are paramount, the Hydroplane Arc Sensor has advanced accuracies of ±0.5% of reading and a rapid update rate of 5kHz allowing devices to capture the position of the magnet target relative to the sensor in excess of 5,000 times per second. Fitted with a SubConn MCBH-12-MP 12 pin connector for simple plug and play installation, the IP69 rated arc sensor has a wide operating temperature range of -40°C to +125°C with both the sensor electronics and magnet target encased in hard anodised aluminium. The entire device is pressure rated to 5 bar.

The HU-050-02 offers dual channel output enabling engineers to utilise both a configurable 0-5V analog output and a CAN output that delivers a ratiometric output across the 22° arc measurement sensing range. An alternative sensing range can be achieved through reprogramming the device and integrated CPU’s eliminate the need for additional external processing.

This hydroplane sensor is factory calibrated for easy installation and designed to measure across a 2.5mm air gap. Tunnelling Magneto Resistive position sensing is capable of measuring across up to 40mm air gaps and through up to 20mm of non-ferrous material such as stainless steel and aluminium, depending on the magnet target.

Reventec’s Quantum TMR™ technology offers high performance and dependability for applications in extreme environments. All devices in this range are compatible with MIL-STD-461F and RTCA DO160F EMC standards. Harnessing Reventec’s expertise in specialist, highly-customised projects, all position sensors can be modified to your specifications through specific housing geometry and material, mounting configuration, cable length and choice of connector.



EMC Approvals

EMC approvals for this device includes: MIL STD 461F Army Ground Limits: CS114, CS115, CS116, RE102, RS103, RS101, CE102, CS101, RTCA DO160F: Section 25 ESD Cat. A

Options include:

  • Custom housing to fit the intended application’s spatial constraints.
  • Multichannel redundancy available for reliability and repeatability.
  • Variety of connector interfaces to choose from.
  • Analog or CAN outputs without the need for external CPU processing.



Quantum TMR™ Programmable Position Sensors

The Dual Channel Hydroplane Arc Position Sensor is a measurement device in our Quantum TMR™ position sensor range developed specifically to deliver linear position feedback for marine vessels, defence platforms, motorsport vehicles, rail locomotives and off-highway applications. Our range of Quantum TMR™ position sensor instruments deliver continuous, precision position feedback across linear, angular and rotary component movement paths whilst leveraging the latest advancements in Tunnelling MagnetoResistive (TMR) technology, quantum physics equations and robust components. Our sensors are factory-calibrated to specific applications and specifications, ensuring high accuracy and simple installation.

Please contact us to discuss your requirements.

Datasheet Mechanical Details
