Quantum TMR 360° Triple Channel Rotary Position Sensor with 3 cables

Quantum TMR 360° Triple Channel Rotary Position Sensor with 3 cables

This non-contact, programmable triple channel rotary position sensor is designed to provide industry-leading precision across harsh environmental applications. Featuring three cables and connector types for ultimate adaptability, the solid-state sensor provides real-time accuracy and reliability.

  • Solid-state, continuous rotational sensing
  • Rapid response rate of 5kHz
  • Extremely accurate; ±0.5% of reading
  • 0 – 359 degrees of measurement sensing range
  • 12 bit Analogue VDC Output Resolution
  • Configurable outputs on each of the 3 channels
  • Performs across a wide operating temperature range of -40°C to +150°C
  • Rotary measurement through non-ferrous material
  • IP67 Rated

Description

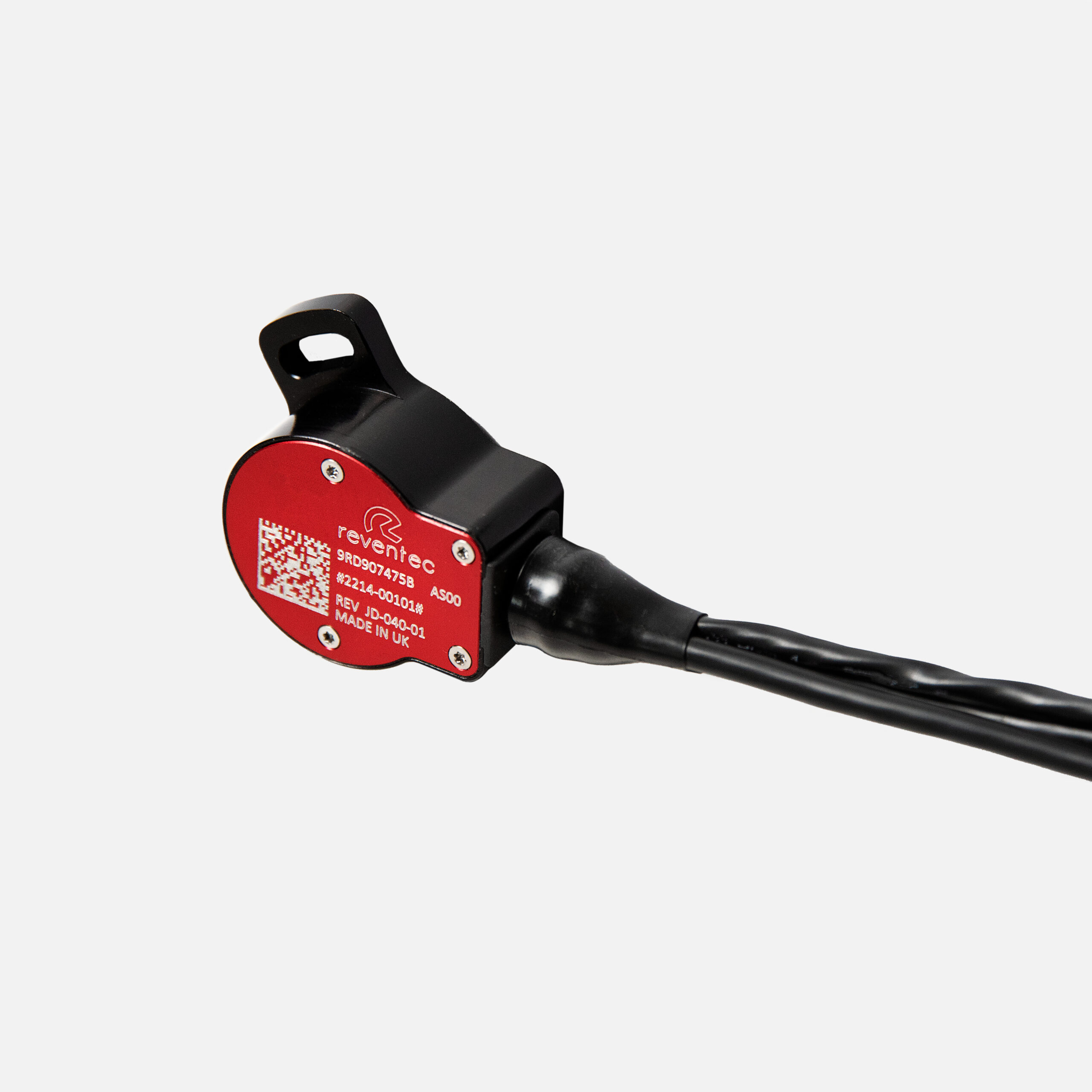

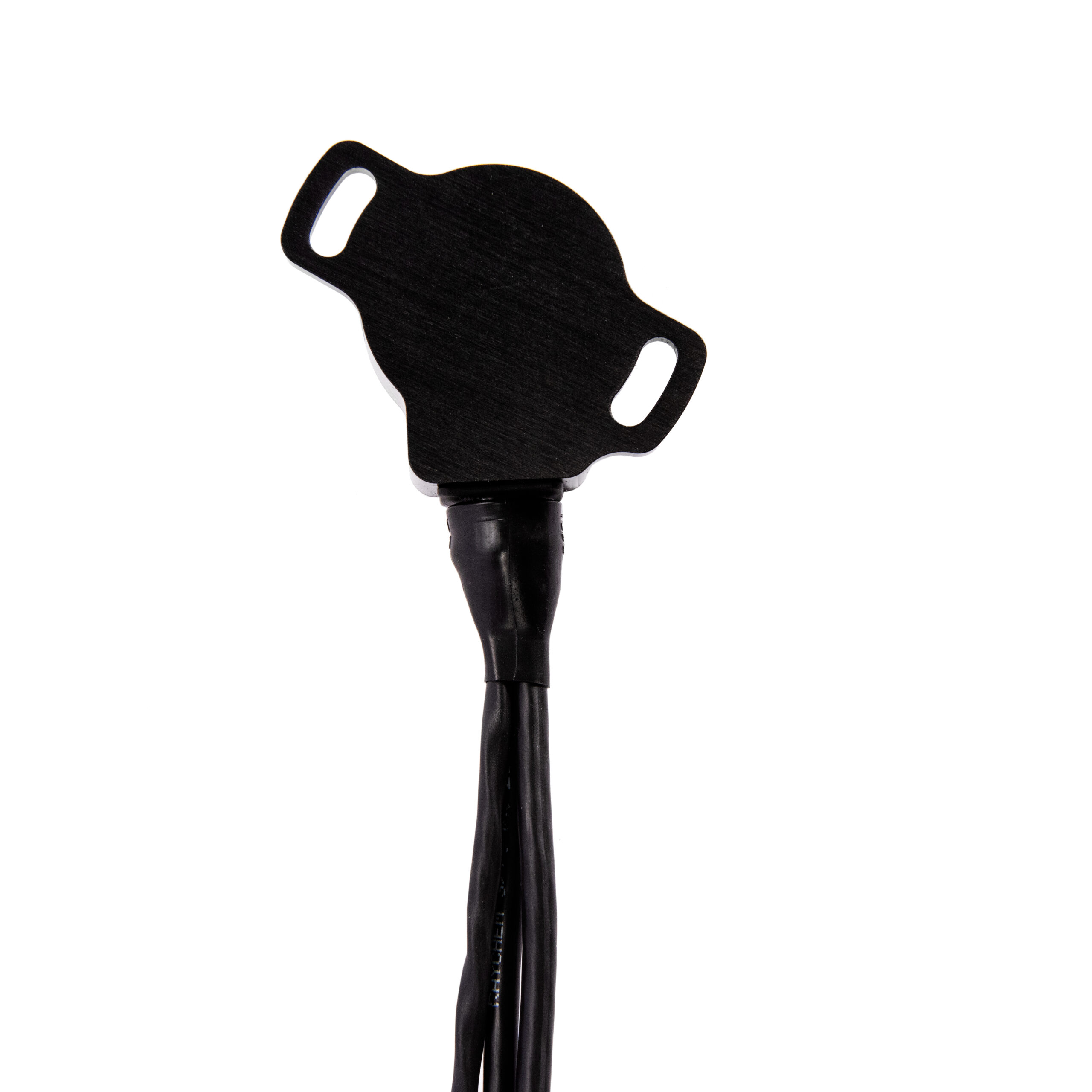

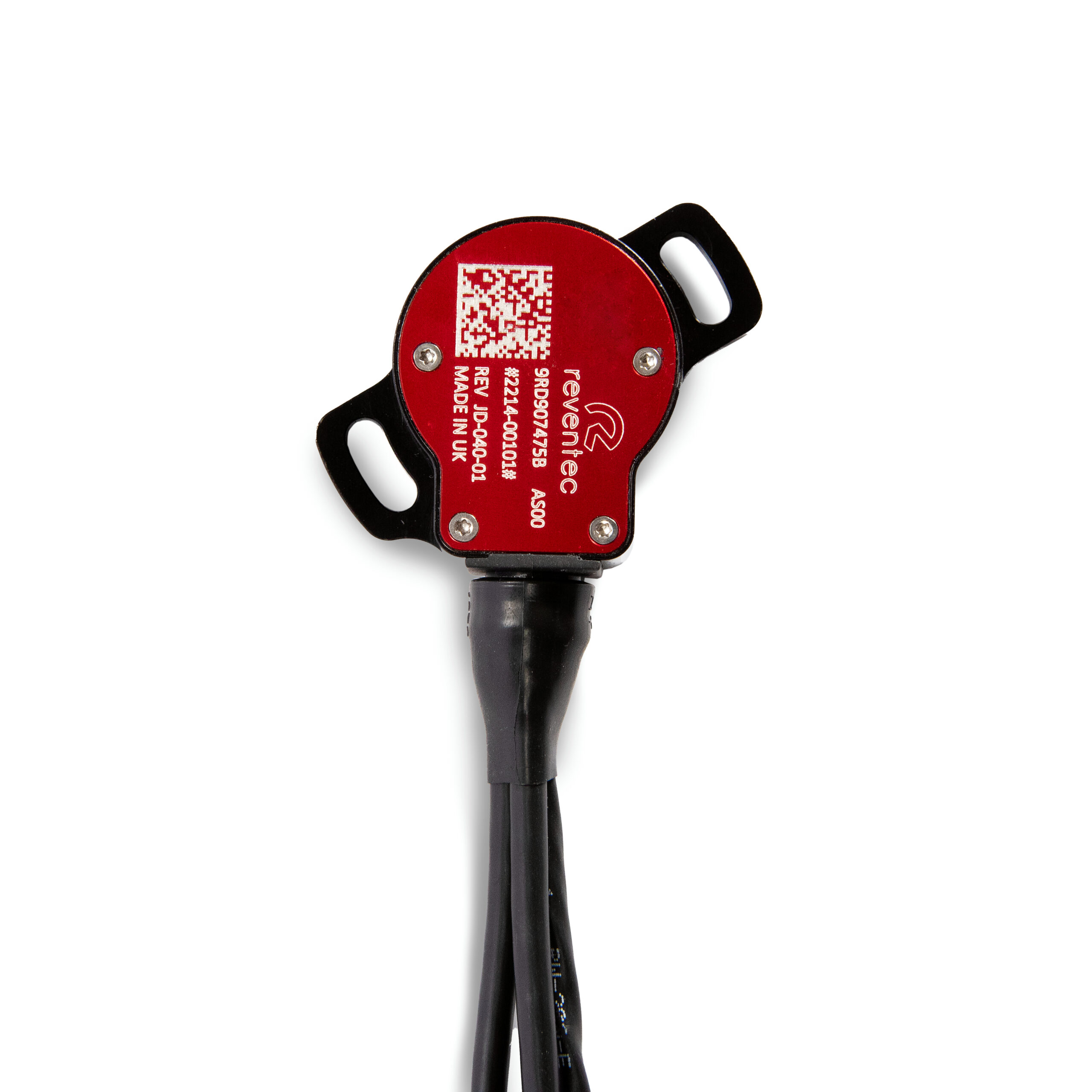

Quantum TMR™ 360° Triple Channel Rotary Position Sensor with 3 cables (JD-040-02)

Manufactured in the UK, the 360° Triple Channel Rotary Position sensor is well-suited for harsh environments requiring up to 359 degrees of measurement. The robust sensor is designed to deliver reliable real-time position measurement across a wide temperature range of -40°C to +150°C. Leveraging the latest Quantum TMR™ technology for continuous, solid-state, non-contacting position measurement, the sensor was originally engineered for the extreme conditions of competitive motorsport.

Designed as an alternative to traditional potentiometer sensors, the accurate instrument features exceptional linearity across the 0° to 359° sensing range. With sensitivities of up to 450mV per degree, the multichannel device is extremely accurate and provides multichannel redundancy for reliability and repeatability.

Boasting advanced accuracies of ±0.5% of reading, the sensor is ideal for pedal applications where independent multi-channel functionality is required, either through regulation or desirability. The lightweight, vibration-tolerant sensor is suitable for specialist applications that require an instrument with an IP rating of IP67.

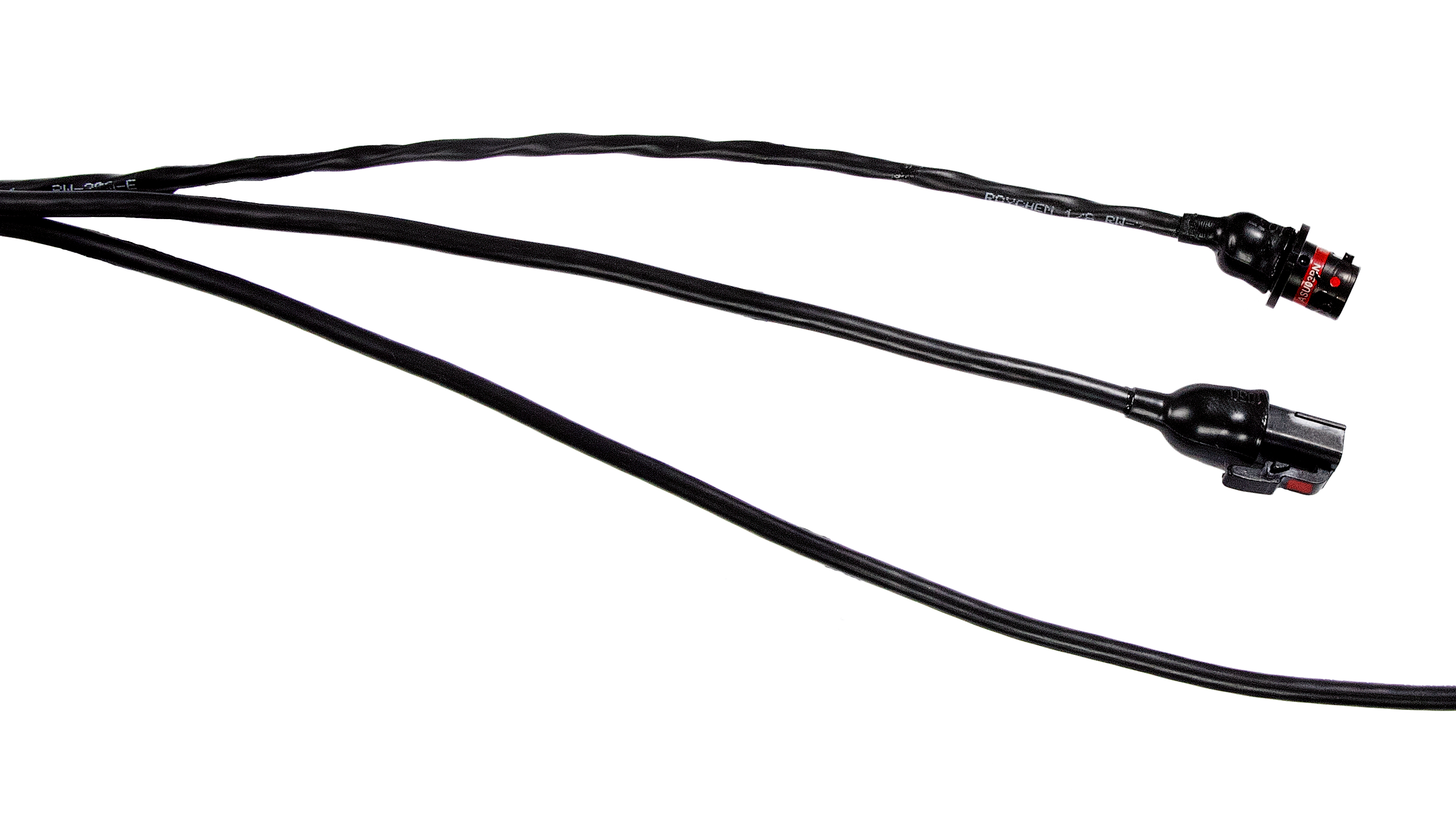

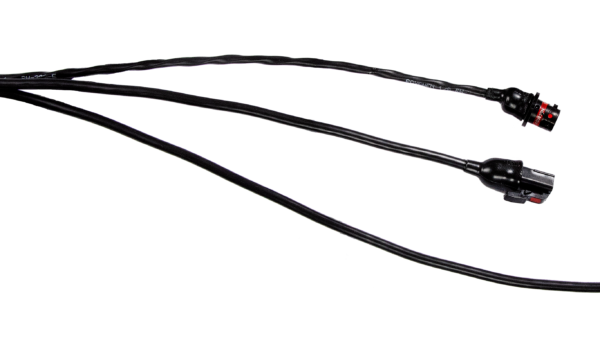

Integrated CPU’s located within the durable sensor housing create 3 x independent analogue voltage outputs for easy implementation into your project. Benefits of the sensor includes a reduction in operational downtime of machinery by providing real-time measurement of component movements.

Reventec’s Quantum TMR™ technology offers high-performance and dependability. As one of the sensors in our Quantum TMR™ range, the 360° Triple Channel Rotary Position Sensor with 3 cables utilises a modular design. For similar products available in single and dual outputs, discover the rest of our Quantum TMR range.

Harnessing Reventec’s expertise in specialist, highly-customised projects, all position sensors can be modified to your specifications through specific housing geometry and material, cable length and choice of connector.

Options include:

  • Variety of connector interfaces to choose from.
  • Custom housing options to fit your application.
  • Analogue or CAN outputs without the need for external CPU processing.

Quantum TMR™ Programmable Sensors

The Triple Channel Rotary Position sensor with 3 cables is a product from our Quantum TMR range of magnetic position sensors. Our Quantum TMR range offers powerful precision measurement of linear, angular and rotary component movement positioning through non-contact Tunnelling MagnetoResistive (TMR) technology whilst leveraging quantum physics equations. Legacy technologies can’t achieve this level of accuracy or reliability and all of our sensors are factory-calibrated to a user’s specifications. We can supply a free GUI, should customers wish to programme their sensors in the field.

Applications:

The Quantum TMR 360° Rotary Position Sensor is a lightweight and reliable non-contact position sensor ideal for the Off-Highway Vehicles, Motorsport, Defence, UAV, Industrial, Automotive, Rail and Maritime industries.

Please contact us to discuss your requirements.

Datasheet Mechanical Details
