Mil-Spec 360° Dual Channel Rotary Position Sensor with Blade Shaft

Mil-Spec 360° Dual Channel Rotary Position Sensor with Blade Shaft

A mil-spec dual channel rotary position sensor with integrated blade shaft and 38999 series connector that is well-suited for harsh environments requiring 359 degrees of measurement. Featuring industry-leading Quantum TMR™ technology, the precision sensor is an ideal drop in replacement to potentiometers.

  • Solid-state, continuous rotational sensing
  • -40°C to +150°C operational temperature capability
  • 0 – 359 degrees of measurement sensing range
  • Rapid response rate of 5kHz
  • 12 bit Analog VDC Output Resolution
  • IP67 rated
  • Dual channel redundancy
  • Designed to meet EMC tests

Description

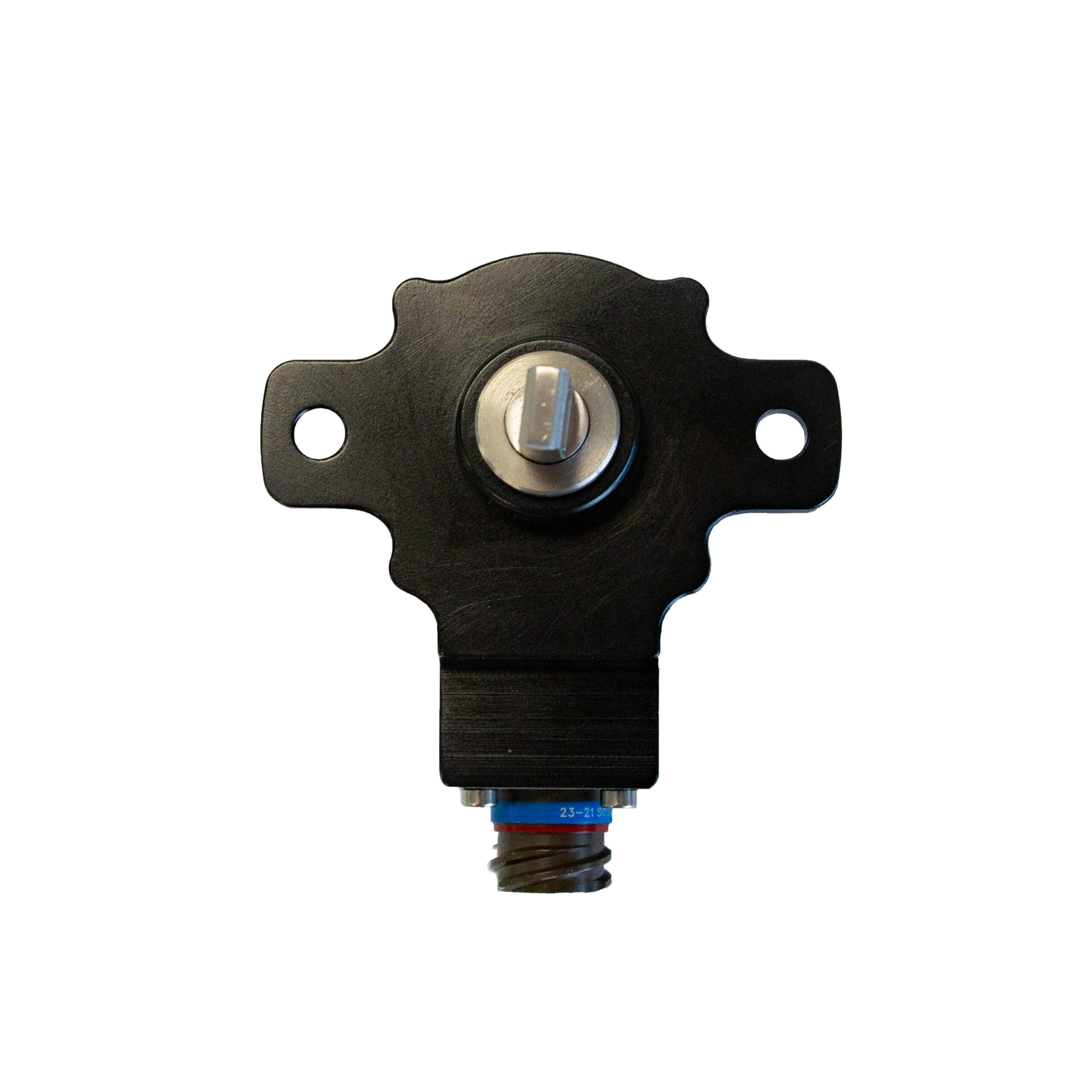

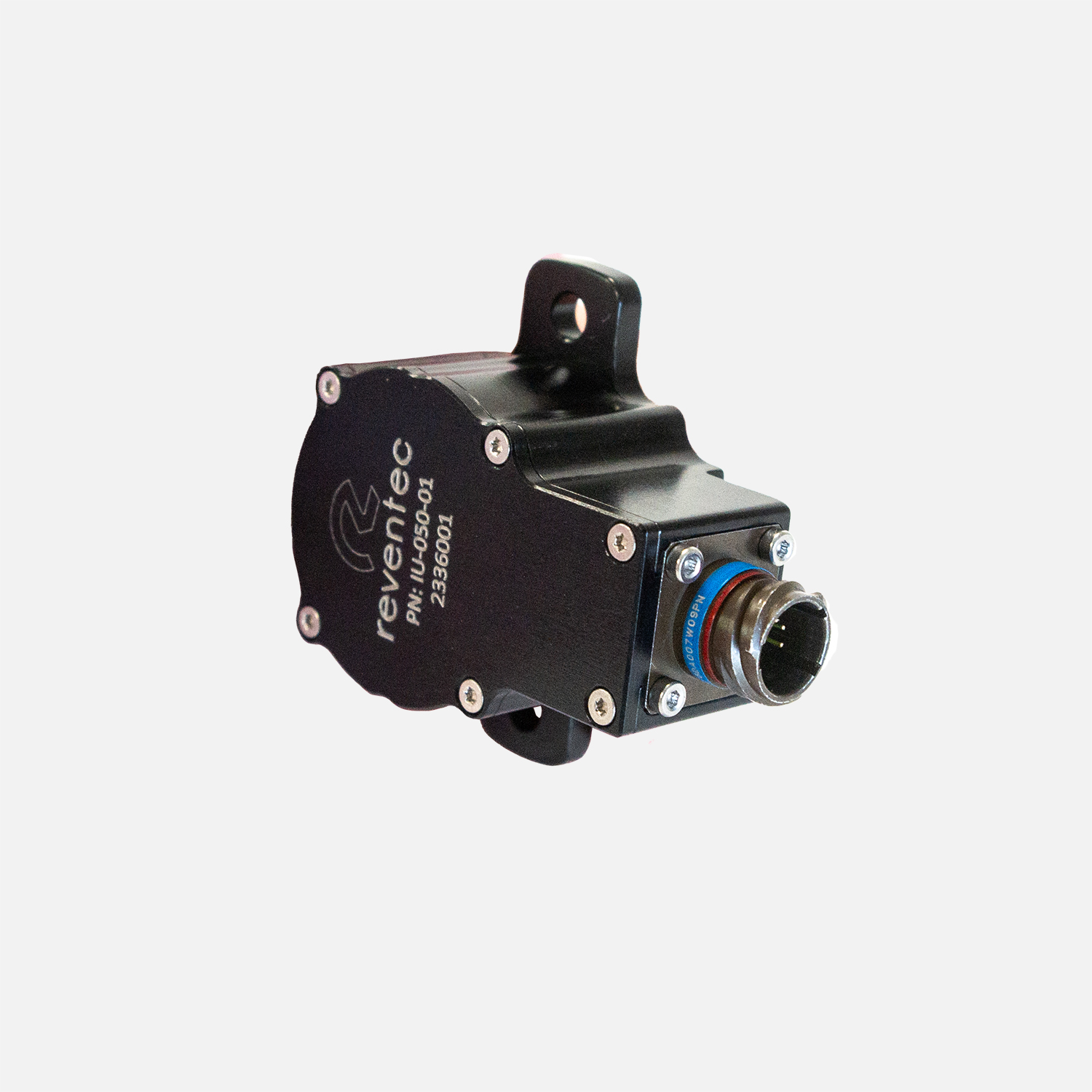

Mil-Spec 360° Dual Channel Rotary Position Sensor with Blade Shaft (IU-050-01)

Manufactured in the UK, the Mil-Spec 360° Dual Channel Rotary Position Sensor with Blade Shaft is built to last with a wide operational temperature capability of -40°C to +150°C. Designed to deliver powerful precision position measurement within military ground vehicles, the position instrument provides real-time component performance monitoring for reduced vehicle downtime in combat zones. With continuous measurement as standard, our sensors capture the position of the magnet target relative to the sensor in excess of 5,000 times per second.

With an ingress protection rating of IP67, this robust sensor with integral blade shaft delivers the same real-time reliability available from TMR technology whilst offering simple installation compared to its separate magnet counterpart. Boasting advanced accuracies of ±0.5% of reading, this dual channel device features integrated CPU processing for a ratiometric analog VDC outputs.

Reventec’s Quantum TMR™ technology offers high-performance and reliability. As one of the sensors in our Quantum TMR™ range, this position sensor utilises a modular design; for similar products available in single, dual and triple outputs, discover the rest of our Quantum TMR range.

Harnessing Reventec’s expertise in highly-customised, specialist projects, all of our sensors can be modified to your specifications through specific housing geometry and material, cable length and choice of connector.

Options include:

  • Variety of connector interfaces to choose from including D38999 mil-spec connectors.
  • Custom housing options to fit your application.
  • Analogue or CAN outputs without the need for external CPU processing.
  • Dual redundant and triple redundant options available.


Quantum TMR™ Programmable Sensors

The Mil-Spec 360° Dual Channel  Rotary Position Sensor with Blade Shaft is a product from our Quantum TMR range of magnetic position sensors. Our Quantum TMR range offers powerful precision measurement of linear, angular and rotary component movement positioning through non-contact Tunnelling MagnetoResistive (TMR) technology whilst leveraging quantum physics equations. Legacy technologies can’t achieve this level of accuracy or reliability and all of our sensors are factory-calibrated to a user’s specifications. We can supply a free GUI, should customers wish to programme their sensors in the field.

Applications:

The Mil-Spec 360° Dual Channel  Rotary Position Sensor with Blade Shaft is a rugged, reliable and precise non-contact position sensor ideal for the Defence, Off-Highway Vehicles, Industrial, Rail and Maritime industries.

Please contact us to discuss your requirements.

Defence Vehicle Health Sensors

The Mil-Spec 360° Dual Channel Rotary Position Sensor with Blade Shaft is a position sensor in our military product range, equipping ground vehicle and UAV manufacturers with real-time measurement of vital vehicle components. Discover how we help our customers to defend for longer in a variety of applications:
