Quantum TMR 180° Arc Position Sensor

Quantum TMR 180° Arc Position Sensor

A solid-state, lightweight 180 degree arc position sensor equipped with non-contact measurement techniques for durability in harsh applications. IP67 rated.

  • ±90 degrees of arc measurement range
  • 0-5V Analog Output
  • Rapid response rate of 5kHz
  • 12 bit Resolution
  • Anodised aluminium construction
  • Non-contact, solid-state device for increased product lifespan
  • IP67 rated

Description

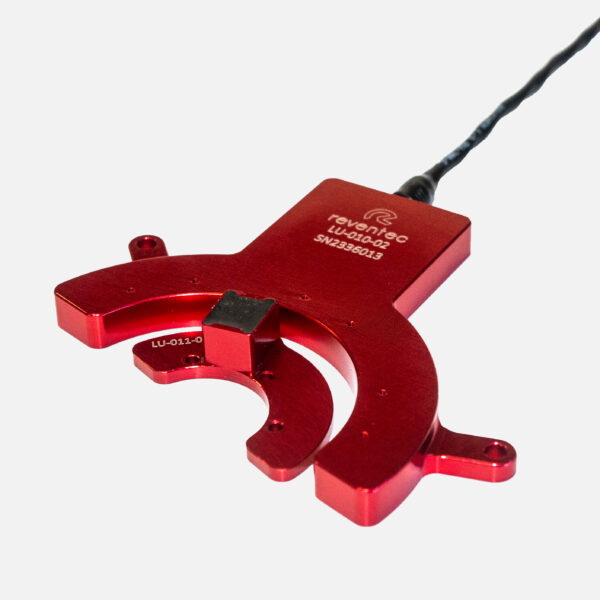

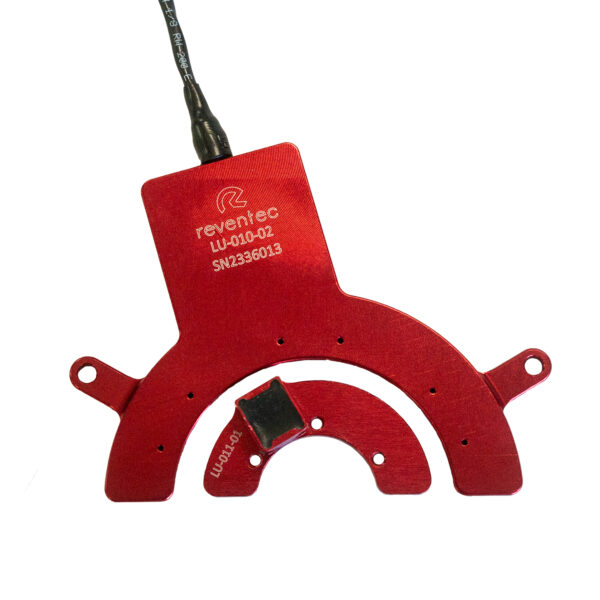

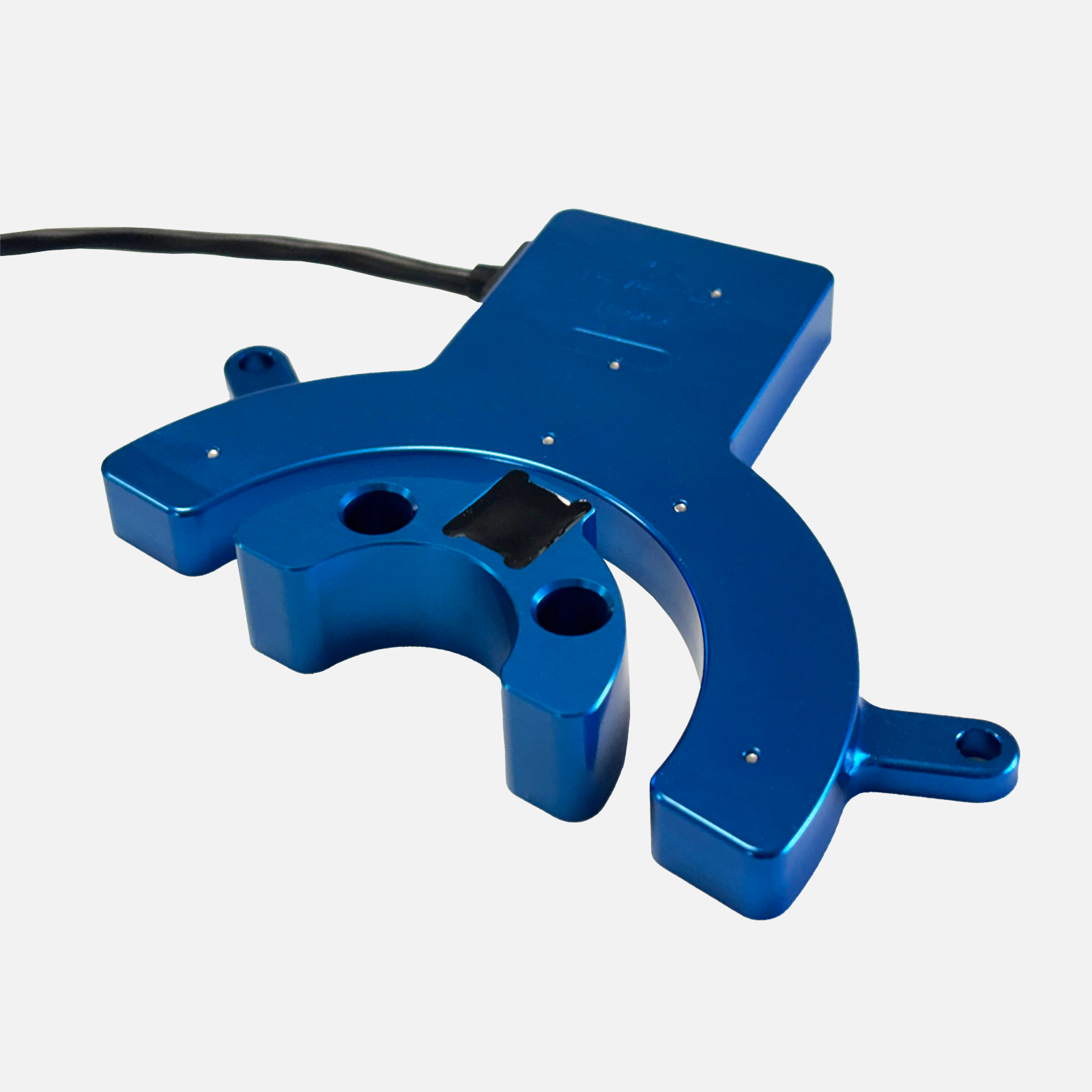

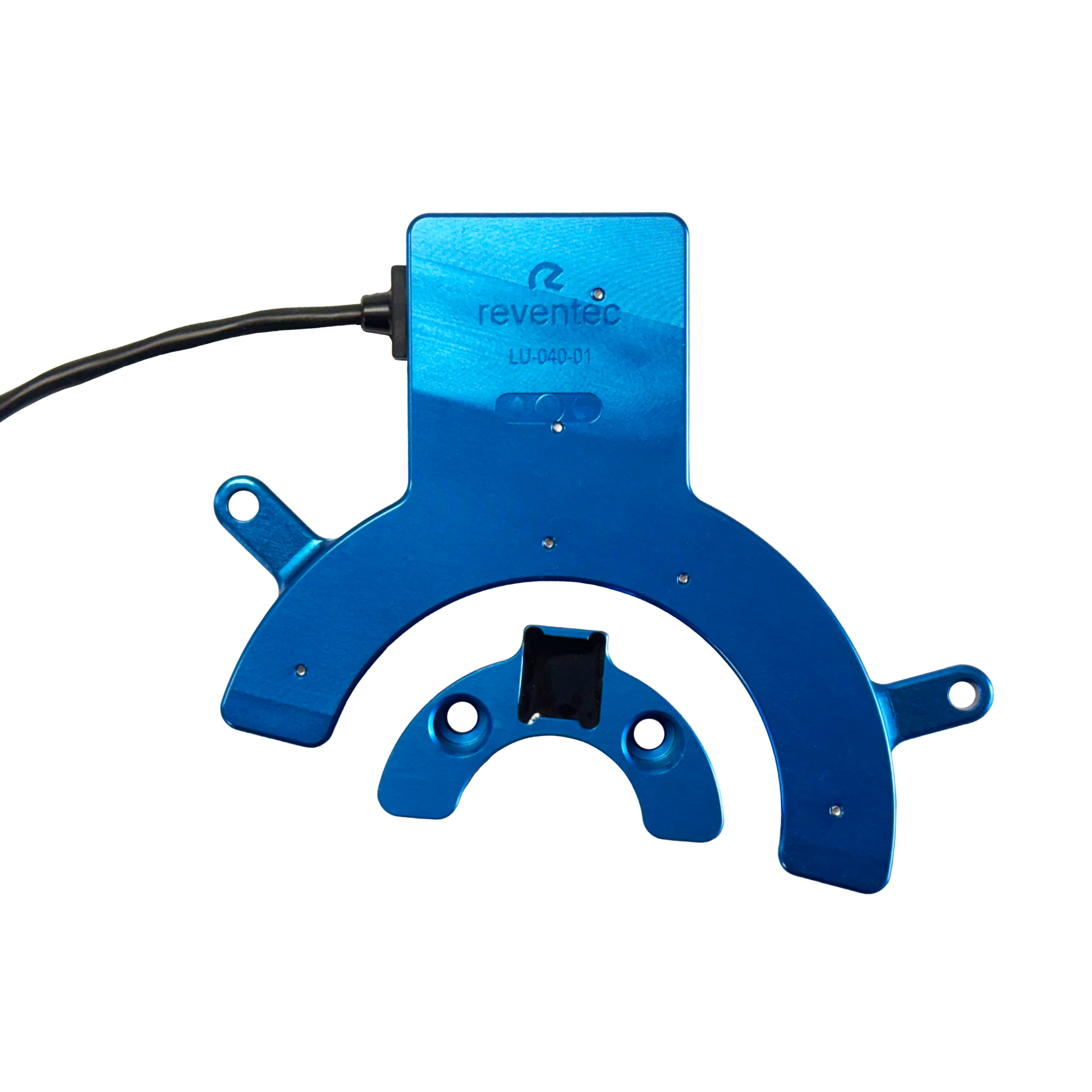

Quantum TMR 180° Arc Position Sensor (LU-010-03)

The Quantum TMR 180° Arc Position Sensor is a non-contact, solid-state position sensor custom-built for a marine outboard measuring the angular movement of the steering head. With advanced accuracies of ±0.5% of reading, powerful processing technology is packaged in a compact sensor that performs well across the entire -40°C to +150°C operating temperature range.

The arc position sensor allows for easier maintenance and sensor interchangeability. With an IP67 rating, the device is resistant to shock and highly tolerant to vibration making it ideal for vehicles operating in extreme environments.

An integrated CPU located within the hard anodised aluminium sensor housing creates a ratiometric analog 0-5 voltage output for easy implementation into the vehicle. Leveraging the latest advancements in Tunnelling Magnetoresistance sensing, Reventec’s state-of-the-art Quantum TMR technology offers superior accuracy compared to Hall Effect sensors and provides reliable readings across magnetic field strength fluctuations. The arc position sensor benefits from real-time measurement with a rapid update rate of 5kHz, enabling engineers to extract detailed data for analysis. The solid-state design eliminates the need for regular maintenance and the non-contact nature of the technology increases the products lifespan by eliminating mechanical wear.

The 180° Arc Position Sensor is supplied with flying lead for direct integration to vehicle platforms and is delivered factory calibrated to a customers specific measurement path. Reventec’s Quantum TMR technology is highly customisable with each arc position sensor designed to fit an intended, customer-specific application and the corresponding spatial constraints, ensuring it is custom built in any shape, size, and in a variety of construction materials with cable and connector options.



EMC Approvals

EMC design standards for this device include: MIL STD 461F Army Ground Limits: CS114, CS115, CS116, RE102, RS103, RS101, CE102, CS101, RTCA DO160F: Section 25 ESD Cat. A



Options include:

  • Custom housing to fit the intended application’s spatial constraints.
  • Multichannel redundancy available for reliability and repeatability.
  • Semi-remote and fully remote electronics available for high temperature variants.
  • Variety of connector interfaces to choose from.
  • Analog or CAN outputs without the need for external CPU processing.



Quantum TMR™ Programmable Position Sensors

The 180° Arc Position Sensor is a measurement device in our Quantum TMR™ position sensor range developed specifically for monitoring components in defence ground platforms (engineering vehicles and combat vehicles), motorsport vehicles, rail and off-highway applications. Our range of Quantum TMR™ position sensor instruments deliver continuous, precision position feedback across linear, angular and rotary component movement paths whilst leveraging the latest advancements in Tunnelling MagnetoResistive (TMR) technology, quantum physics equations and robust components. Our sensors are factory-calibrated to specific applications and specifications, ensuring high accuracy and simple installation.

Please contact us to discuss your requirements.

Mechanical Details
