Dual Channel Rotary Position Sensor with Blade Shaft

Dual Channel Rotary Position Sensor with Blade Shaft

A programmable dual channel rotary position sensor with integrated blade shaft that is well-suited for harsh environments requiring 359 degrees of measurement. Featuring industry-leading Quantum TMR™ technology, the precision sensor is an ideal drop in replacement to potentiometers.

  • Rapid response rate of 5kHz
  • Extremely accurate; ±0.5% of reading
  • 0 – 359 degrees of measurement sensing range
  • 12 bit Analogue VDC Output Resolution
  • Configurable Dual Channel Output for reliability and redundancy
  • Accurate position sensing over a wide operating temperature range of -40°C to +150°C
  • IP67 Rated

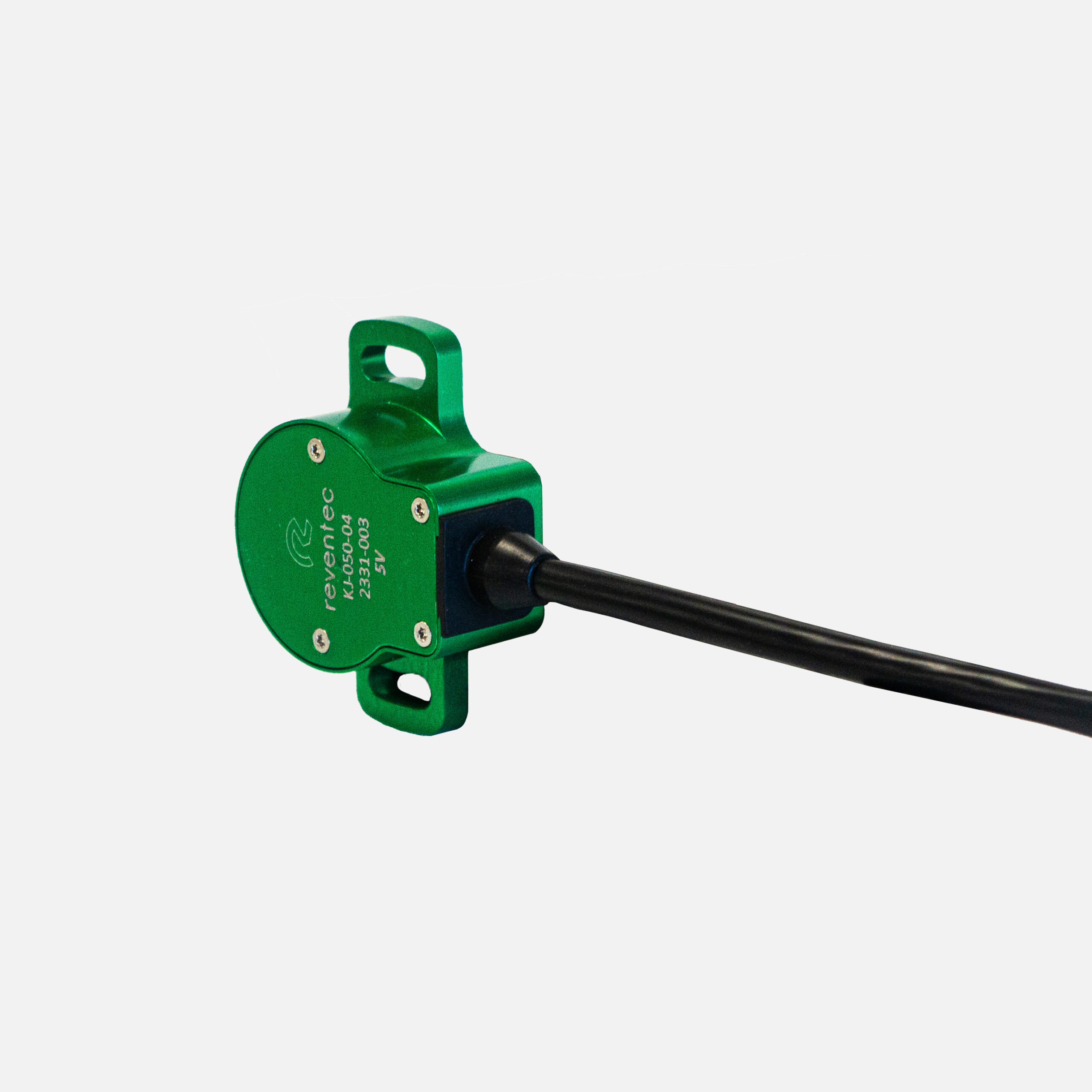

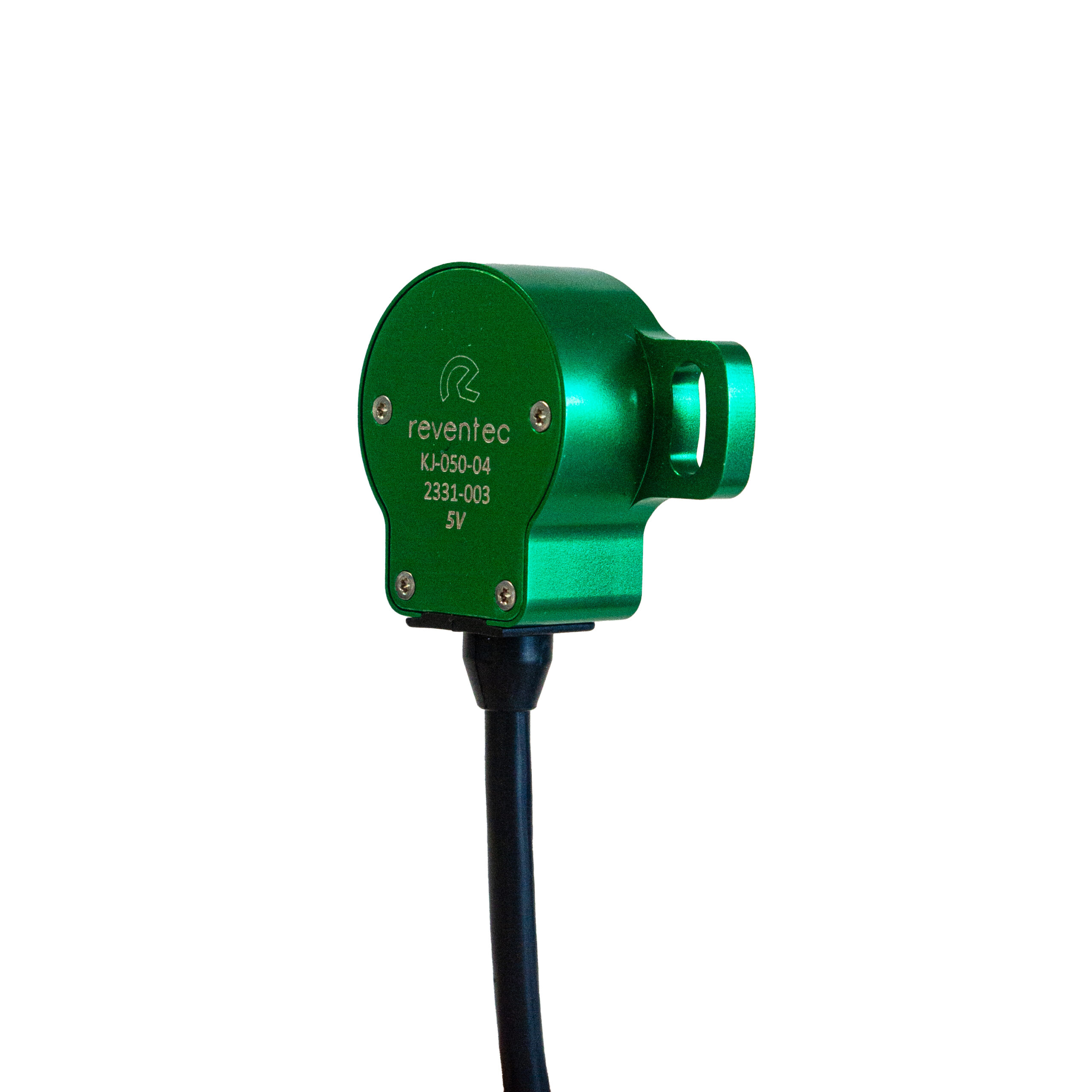

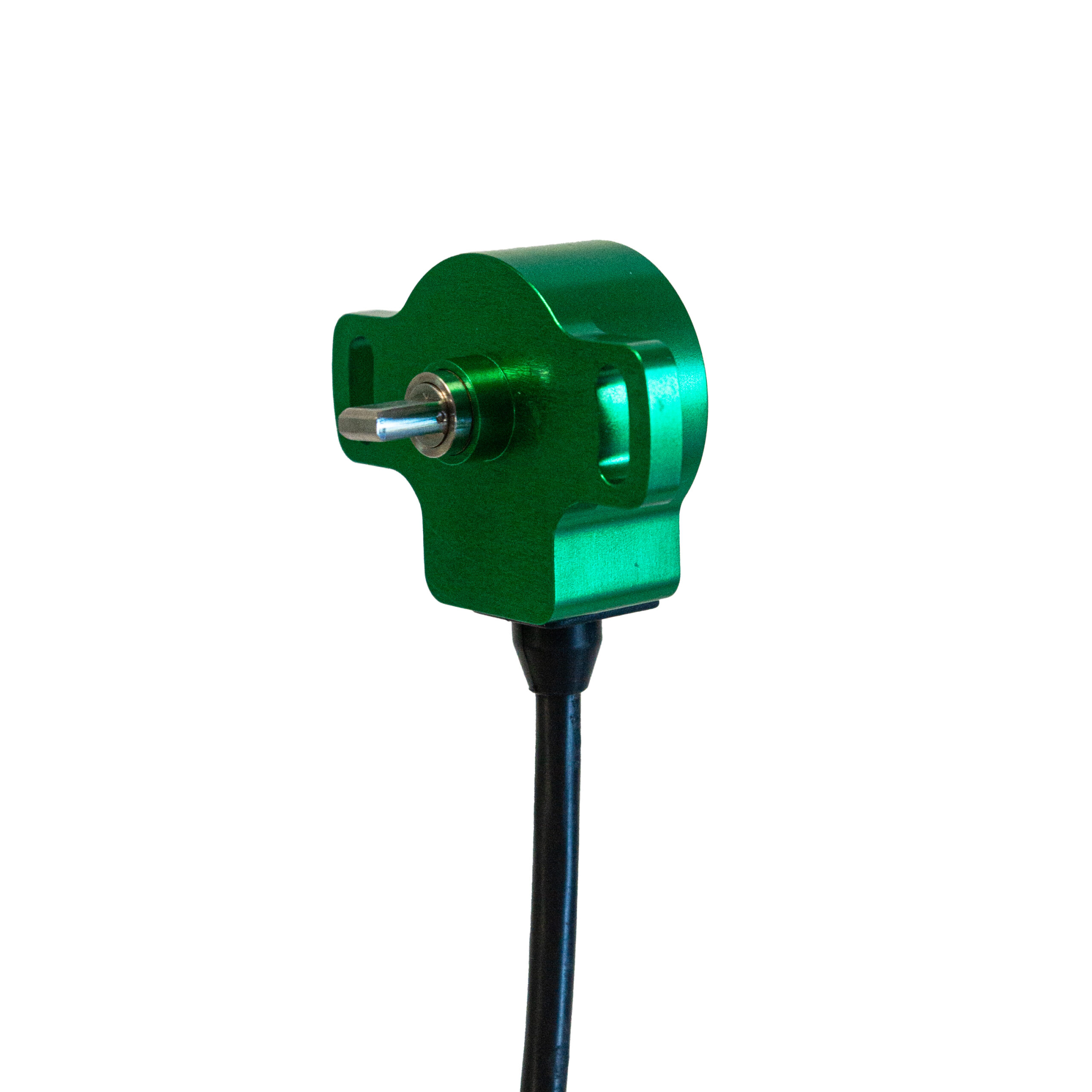

Quantum 360° Dual Channel Rotary Position Sensor with Blade Shaft (KJ-050-04)

The 360° Dual Channel Rotary Position sensor with blade shaft is designed to deliver reliable, real-time position measurement across a harsh temperature range of -40°C to +150°C. Featuring the latest Quantum TMR™ technology, the lightweight, versatile instrument offers continuous reliable readings and is suitable for specialist applications.

Designed as an alternative to traditional potentiometer sensors, the instrument features excellent linearity across the 0° to 359° sensing range, offers sensitivities of up to 450mV per degree and offers full independent channel configurability, enabling each output to offer different voltage values for identical shaft positions.

With an ingress protection rating of IP67, this robust sensor with integral blade shaft delivers the same real-time reliability available from TMR technology whilst offering simple installation compared to its separate magnet counterpart. Boasting advanced accuracies of ±0.5% of reading, this dual channel device features integrated CPU processing for a ratiometric analog VDC outputs.

Reventec’s Quantum TMR™ technology offers high-performance and reliability. As one of the sensors in our Quantum TMR™ range, this position sensor utilises a modular design; for similar products available in single, dual and triple outputs, discover the rest of our Quantum TMR range.

Harnessing Reventec’s expertise in highly-customised, specialist projects, all of our sensors can be modified to your specifications through specific housing geometry and material, cable length and choice of connector.

Options include:

  • Range of connector interfaces available.
  • Custom housing options to fit your application to offer analogue or CAN outputs without the need for external CPU processing.

Quantum TMR™ Programmable Sensors

The Dual Channel Rotary Position Sensor with Blade Shaft is a product from our Quantum TMR range of magnetic position sensors. Our Quantum TMR range offers powerful precision measurement of linear, angular and rotary component movement positioning through Tunnelling MagnetoResistive (TMR) technology whilst leveraging quantum physics equations. Legacy technologies can’t achieve this level of accuracy or reliability and all of our sensors are factory-calibrated to a user’s specifications. We can supply a free GUI, should customers wish to programme their sensors in the field.


The Quantum 360° Dual Channel Rotary Position Sensor with Blade Shaft is a lightweight and reliable position sensor ideal for the Motorsport, UAV, Industrial, Automotive, Rail and Maritime industries.

Please contact us to discuss your requirements.

Datasheet Mechanical Details
