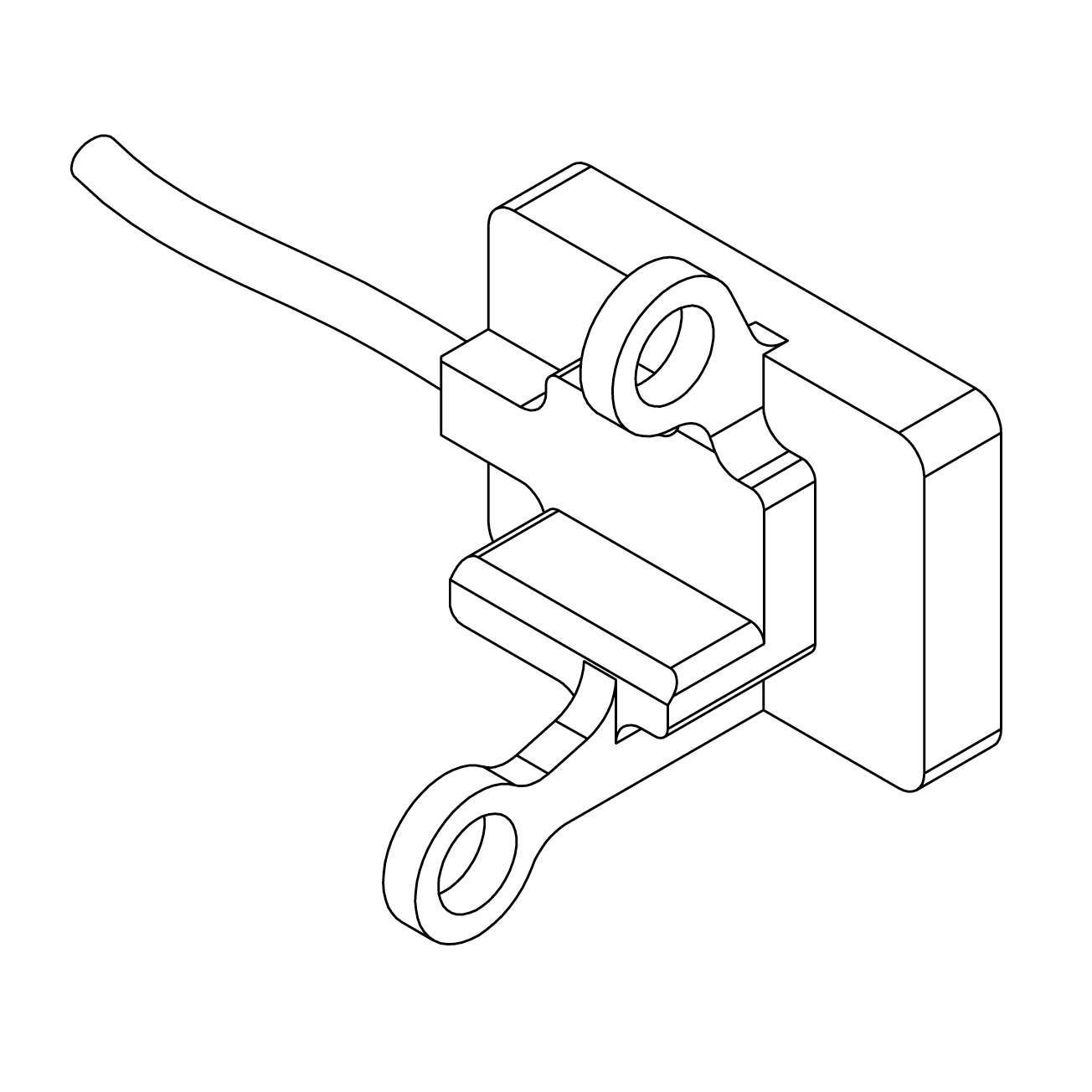

F1 Brake Master Cylinder Position Sensor

F1 Brake Master Cylinder Position Sensor

A leading Formula 1™ team needed to measure the linear displacement of a brake master cylinder. Reventec has an enviable history developing custom sensors for top-flight motorsports teams and as with most Formula 1™ projects that we undertake, the delivery timescale requirements were very tight. The initial brief to product delivery was just three weeks.

  • F1 brake master cylinder application
  • Fully custom design
  • Linear position measurement through a solid aluminium wall
  • Delivery in three weeks
Send Enquiry

Description

The brief

A Formula 1™ race team asked us to design a sensor to measure the linear displacement of a brake master cylinder piston. It had to provide reliable data in the harsh environment of an F1 race car. We develop sensors used by top-flight motorsport teams, so we understand the challenges our customers face.

As a result, we were asked to design a brake master cylinder position sensor and build it, ready to race, in just three weeks.

The project

Reventec uses the latest TMR non-contact sensing technology, so our sensors don’t suffer from the same physical wear characteristics as potentiometers or other legacy technologies.

The brake master cylinder position sensor monitored the linear travel of an internal piston and no direct contact was possible, so the sensor had to be mounted outside the cylinder. That meant providing accurate measurement through a combined 35mm gap of aluminium, lubricant and air.

We designed, built and calibrated the sensor at our Wiltshire, UK premises. We manufactured the product body using PEEK material, so that it would cope with extremes of heat and vibration.

About Reventec

We measure linear, angular and rotary component movement using the latest TMR technology. Our sensors can measure through 40mm of non-ferrous material. This delivers a high level of accuracy and reliability unmatched by potentiometers and other legacy technologies. Our position sensors are ideal for use in harsh environments because they are solid-state and robust. They are also highly-resistant to liquid ingress.

Reventec products provide highly-accurate data and are factory calibrated to a user’s specifications. They are also user-programmable via a simple GUI, supplied free of charge.

Reventec also designs and builds capacitive liquid level sensors and programmable temperature sensing solutions.

We produce a range of standard and customisable sensor configurations and offer a full custom design service.

Our customers value our technical expertise and also our fast response times. They typically operate at the cutting edge of:

  • Motorsports
  • Defence manufacturing
  • Industrial automation
  • Automotive industry

Reventec is a design consultancy. We live for one-off and small-batch production runs up to 5000+ pieces. Please contact us for more information.

Additional information

Measurement Type

Resolution

12 bit

Sensing Range

0-90mm
