Description

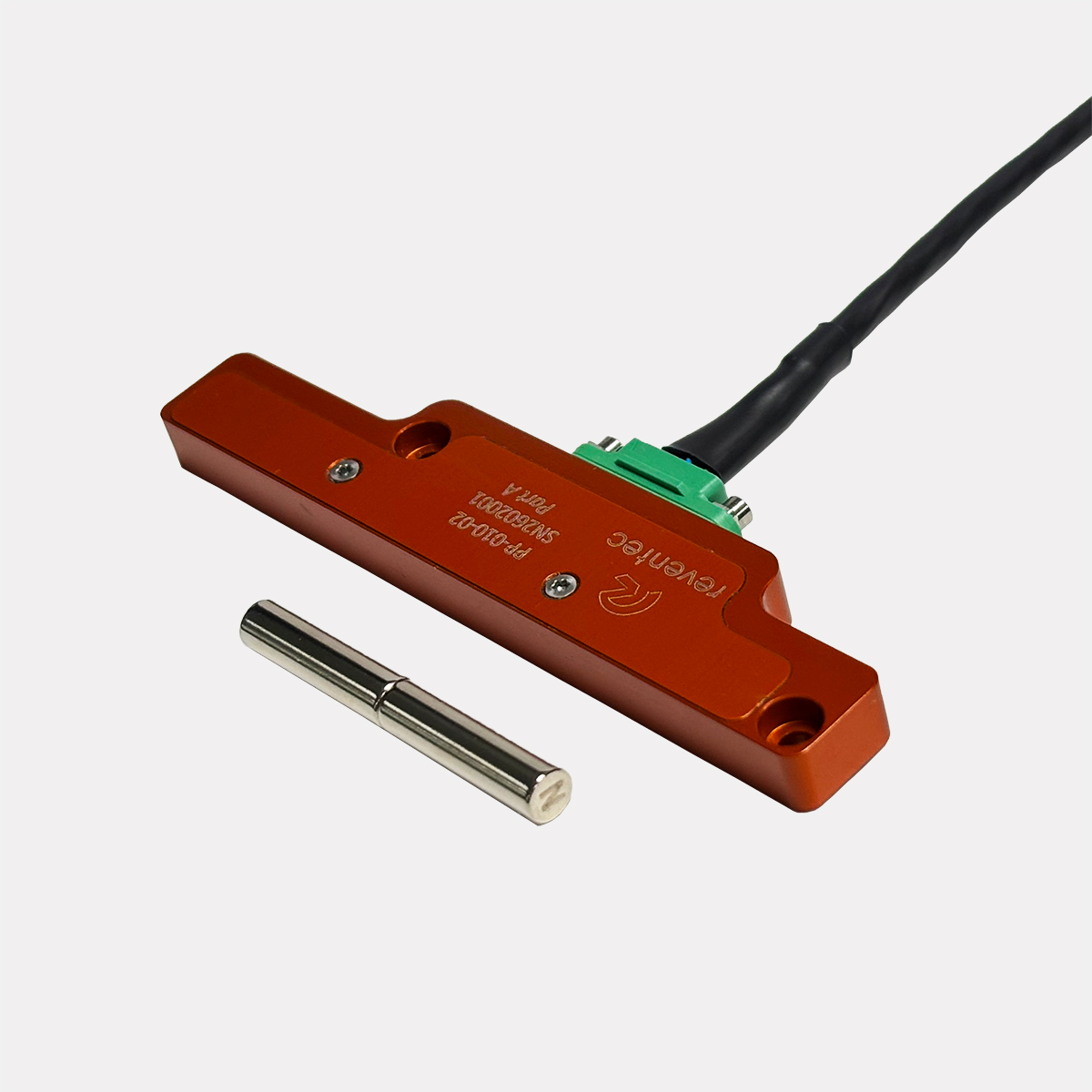

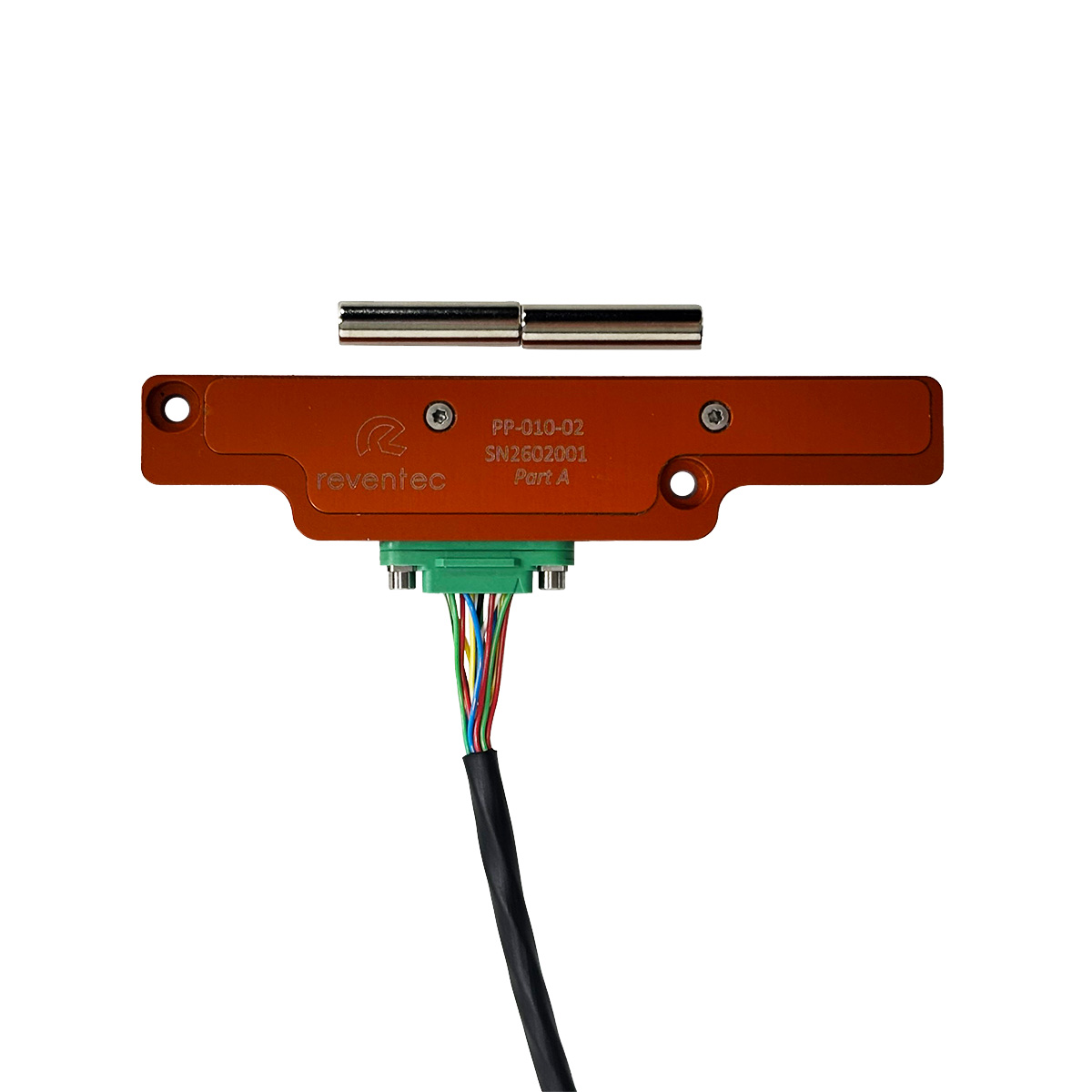

Quantum TMR DRS Rear Wing Actuator Linear Position Sensor (PP-010-02)
The Motorsport DRS Rear Wing Actuator Linear Position Sensor is a highly accurate, non‑contact linear measurement device designed specifically for Formula One Drag Reduction Systems (DRS). Featuring a 110 mm sensing range, it delivers continuous linear position 0-5V analog feedback essential for precise rear‑wing actuation at high speed. Built around Reventec’s advanced Quantum Tunnelling MagnetoResistive (TMR) technology, this solid‑state sensor ensures reliable, repeatable data acquisition under intense vibration, aerodynamic load and temperature variation. Leveraging superior field sensitivity, over 1000 times that of traditional Hall Effect sensors, the system provides exceptionally low‑noise, accurate output critical to DRS deployment and aerodynamic optimisation.

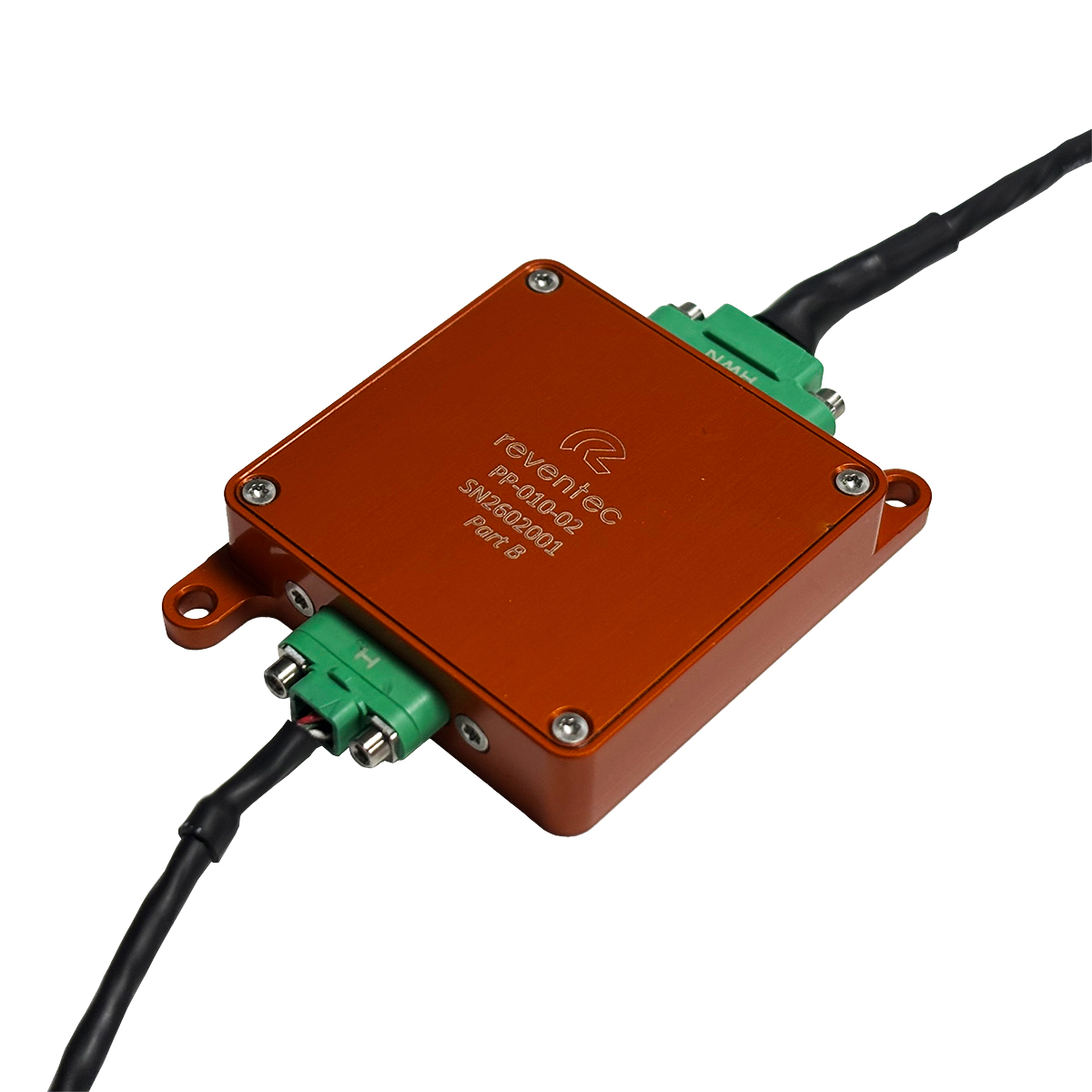

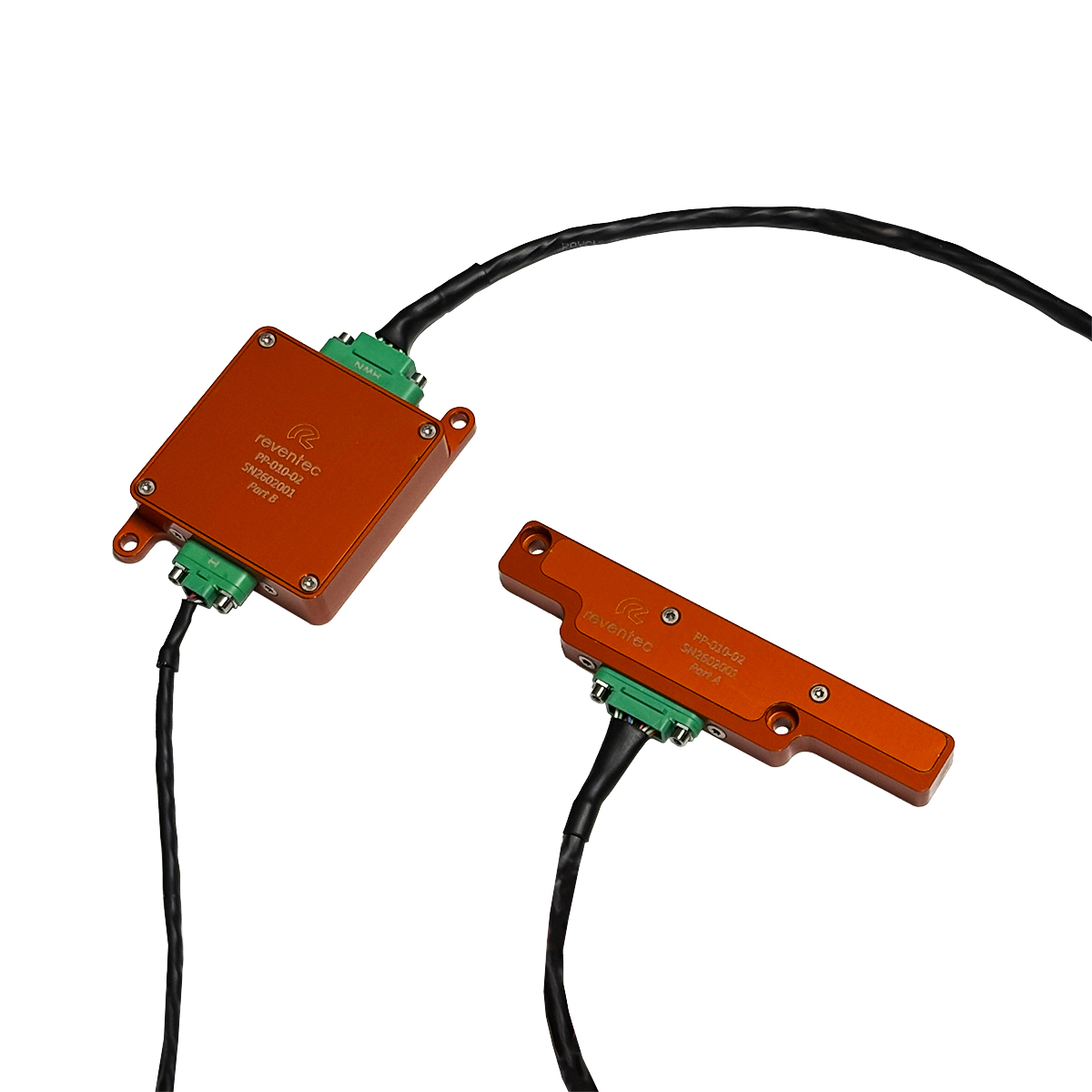

To support integration within Formula One chassis layouts, the sensor incorporates semi‑remote electronics housed separately, allowing engineers to position the electronics module away from confined or high‑temperature areas while maintaining precise measurement integrity. This flexibility ensures seamless installation within the highly constrained actuator assemblies used in modern F1 rear‑wing mechanisms.
Options include:
- Custom housing to fit the intended application’s spatial constraints.
- Multichannel redundancy available for reliability and repeatability.
- Variety of connector interfaces to choose from.
- Analog or CAN outputs without the need for external CPU processing.
Quantum TMR™ Programmable Position Sensors
The Motorsport DRS Rear Wing Position Sensor is a measurement device in our Quantum TMR™ position sensor range developed specifically to deliver linear position feedback for motorsport vehicle applications. Our range of Quantum TMR™ position sensor instruments deliver continuous, precision position feedback across linear, angular and rotary component movement paths whilst leveraging the latest advancements in Tunnelling MagnetoResistive (TMR) technology, quantum physics equations and robust components. Our sensors are factory-calibrated to specific applications and specifications, ensuring high accuracy and simple installation.
Please contact us to discuss your requirements.
