Quantum TMR 100mm TMR Slider Linear Position Sensor

Quantum TMR 100mm TMR Slider Linear Position Sensor

A rugged Tunnelling MagnetoResistive linear position sensor measuring 100mm of movement in harsh environment applications.

  • 0-5V Analog and CAN output
  • 100mm measurement range
  • 12 bit resolution
  • Rapid 5kHz update rate
  • Advanced accuracies of ±0.5% of reading
  • Certified to MIL-STD-461F and RCTA DO160F EMC standards.
  • IP68 rated

Description

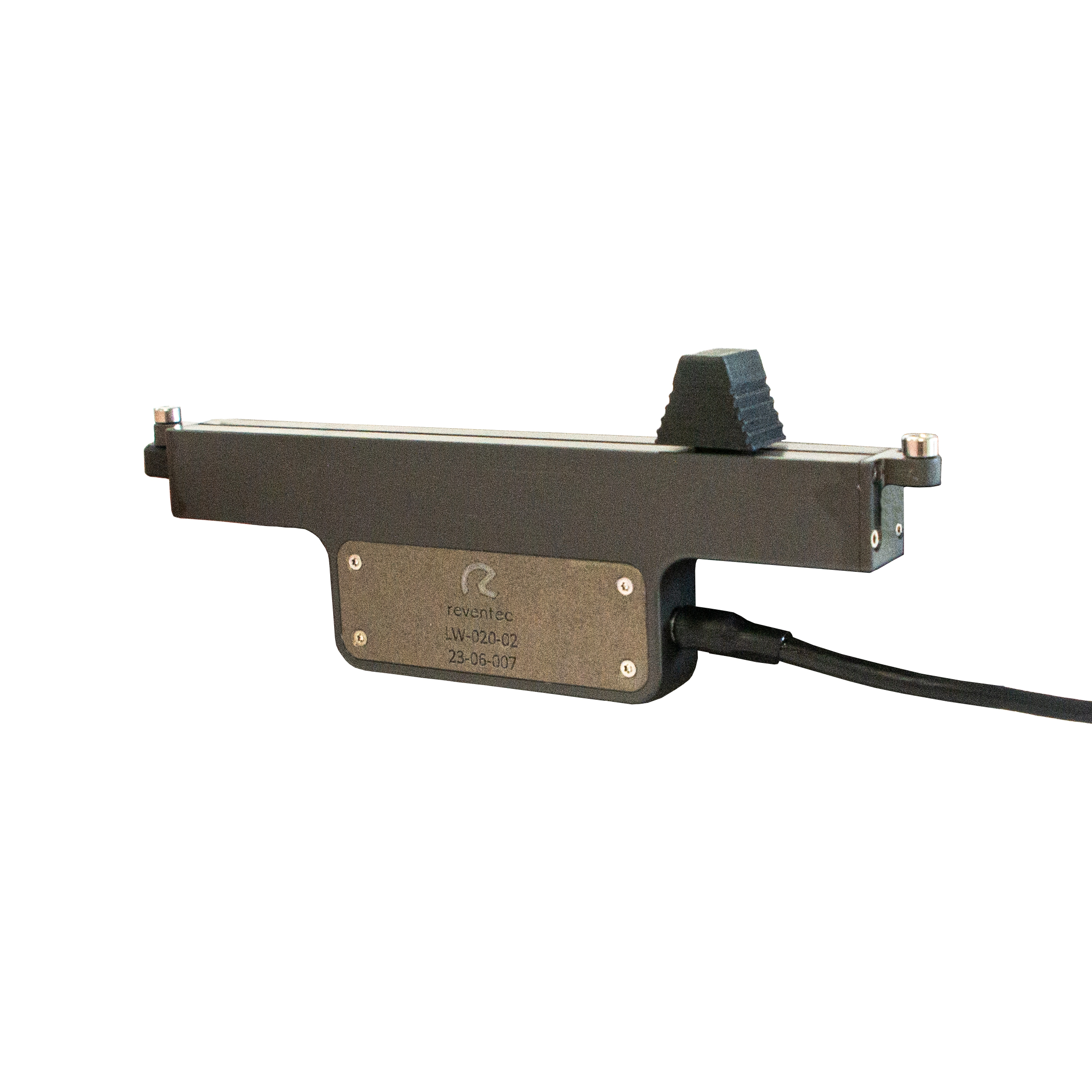

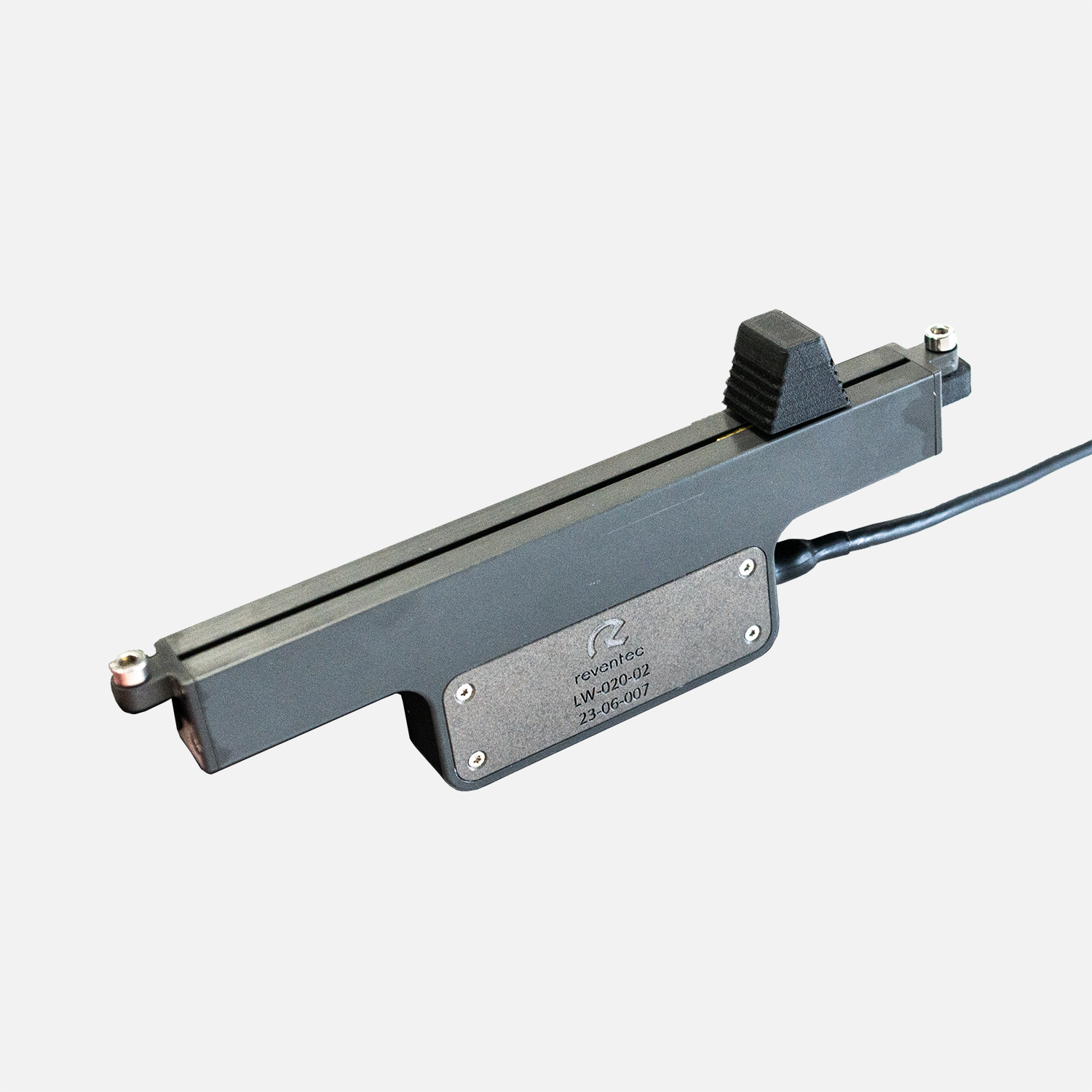

Quantum TMR 100mm TMR Slider Linear Position Sensor (LW-020-02)

The Quantum TMR 100mm TMR Slider Linear Position Sensor is a rugged, non-contact linear position sensor specifically designed to measure the movement of a 100mm slider.

Boasting advanced accuracies of ±0.5% of reading, the sensor delivers a configurable 0-5V analog and CAN output with integrated CPU’s eliminating the need for additional external processing. Both the electronic sensing element and magnet target are encased within the rugged hard anodised aluminium slider custom housing, with the magnet target located in the slider thumb, to provide an ingress protection rating of IP68.

The Tunnelling MagnetoResistive technology employed within this linear position measurement instrument is solid-state making it an ideal alternative to potentiometers that may require regular maintenance and can degrade through excess mechanical wear. Featuring 12 bit resolution and a rapid update rate of 5kHz, the slider linear position sensor allows devices to deliver accurate position feedback in excess of 5,000 times per second, and is thermally stable across a wide operating temperature range of -40°C to +125°C.

The Slider Linear Position Sensor is factory calibrated for simple plug and play installation and is configurable across the entire 0-100mm sensing range. This device is supplied with flying lead for direct integration into this specific application, however a wide variety of connectors are available.

Reventec’s Quantum TMR™ technology offers high performance and dependability for applications in extreme environments. All devices in this range are compatible with MIL-STD-461F and RTCA DO160F EMC standards. Harnessing Reventec’s expertise in specialist, highly-customised projects, all position sensors can be modified to your specifications through specific housing geometry and material, mounting configuration, cable length and choice of connector.



EMC Approvals

EMC approvals for this device includes: MIL STD 461F Army Ground Limits: CS114, CS115, CS116, RE102, RS103, RS101, CE102, CS101, RTCA DO160F: Section 25 ESD Cat. A



Options include:

  • Custom housing to fit the intended application’s spatial constraints.
  • Multichannel redundancy available for reliability and repeatability.
  • Variety of connector interfaces to choose from.
  • Analog or CAN outputs without the need for external CPU processing.



Quantum TMR™ Programmable Position Sensors

The 100mm TMR Slider Linear Position Sensor is a measurement device in our Quantum TMR™ position sensor range developed specifically to deliver linear position feedback for marine vessels, defence platforms, motorsport vehicles, rail locomotives and off-highway applications. Our range of Quantum TMR™ position sensor instruments deliver continuous, precision position feedback across linear, angular and rotary component movement paths whilst leveraging the latest advancements in Tunnelling MagnetoResistive (TMR) technology, quantum physics equations and robust components. Our sensors are factory-calibrated to specific applications and specifications, ensuring high accuracy and simple installation.

Please contact us to discuss your requirements.

Mechanical Details

Defence Vehicle Health Sensors

The Quantum TMR 100mm TMR Slider Linear Position Sensor is a non-contact position sensor in our military product range, equipping ground vehicle and UAV manufacturers with real-time measurement of vital vehicle components. Discover how we help our customers to defend for longer in a variety of applications:
